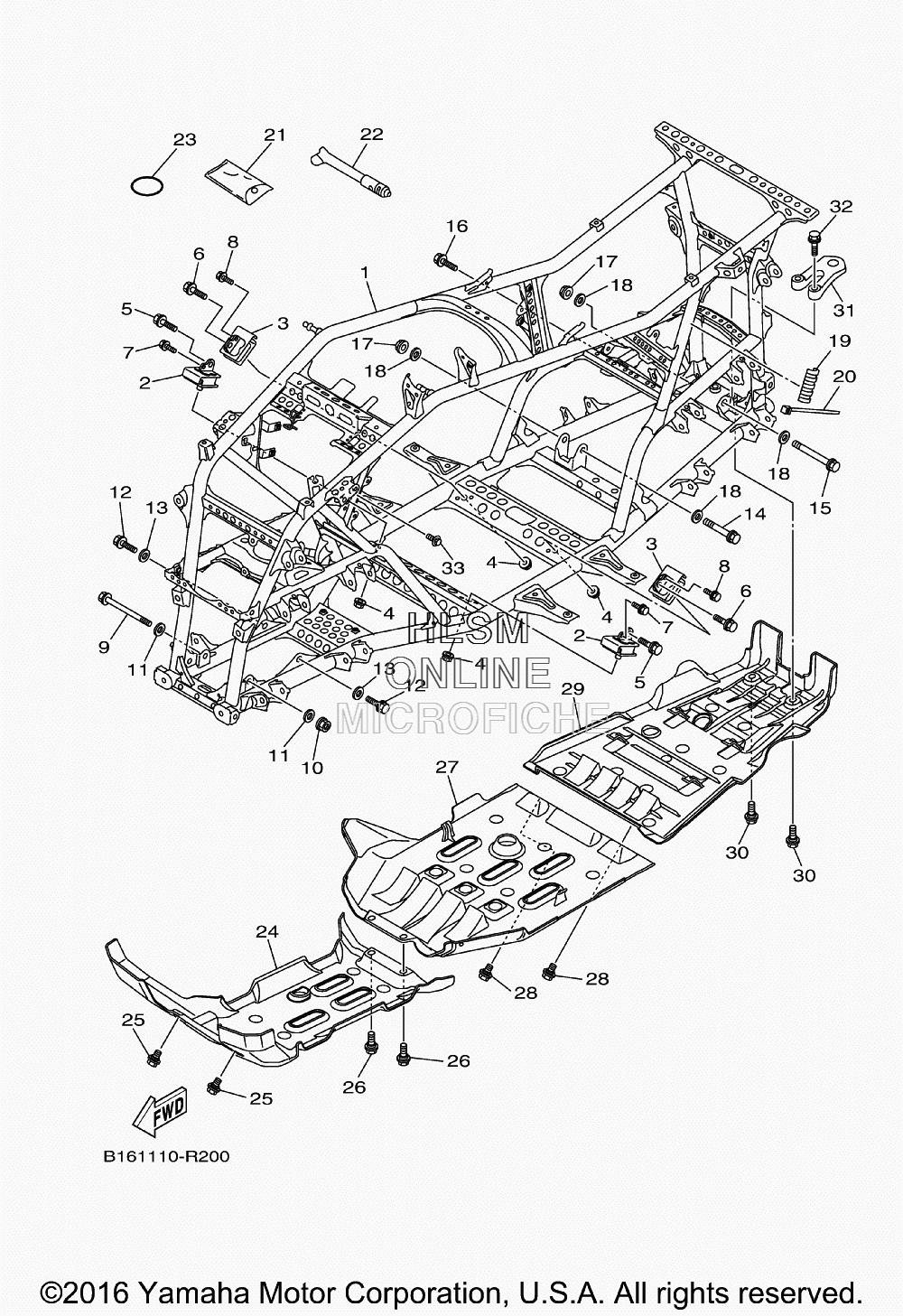

FRAME для Yamaha KODIAK 700 4WD HUNTER [YFM70KDHHH] - 2017 года выпуска
-
№АртикулНазвание
-
1B16-F1110-00-00 FRAME COMP.FRAME COMP.
-
2B16-F1485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
3B16-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52MB-E3574-00-00 BOLT 2BOLT 2
-
695812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
72MB-E5481-A0-00 BOLT 1BOLT 1
-
890105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
990105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
1090185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190201-10035-00 WASHER, PLATEWASHER, PLATE
-
1290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-10035-00 WASHER, PLATEWASHER, PLATE
-
1490105-12803-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890201-12361-00 WASHER, PLATEWASHER, PLATE
-
193B4-2113B-01-00 DAMPERDAMPER
-
2090464-40825-00 CLAMPCLAMP
-
212BG-F8100-00-00 TOOL KITTOOL KIT
-
221NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
2393210-64297-00 O-RINGO-RING
-
24B16-F147A-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
2590109-06202-00 BOLTBOLT
-
2690109-06214-00 BOLTBOLT
-
271HP-F147E-01-00 GUARD, ENGINE 2GUARD, ENGINE 2
-
2890109-06214-00 BOLTBOLT
-
29B16-F147F-00-00 GUARD, ENGINE 3GUARD, ENGINE 3
-
3090109-06202-00 BOLTBOLT
-
311HP-F8488-00-00 HOOKHOOK
-
3295812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
3395812-06012-00 BOLT, FLANGEBOLT, FLANGE
