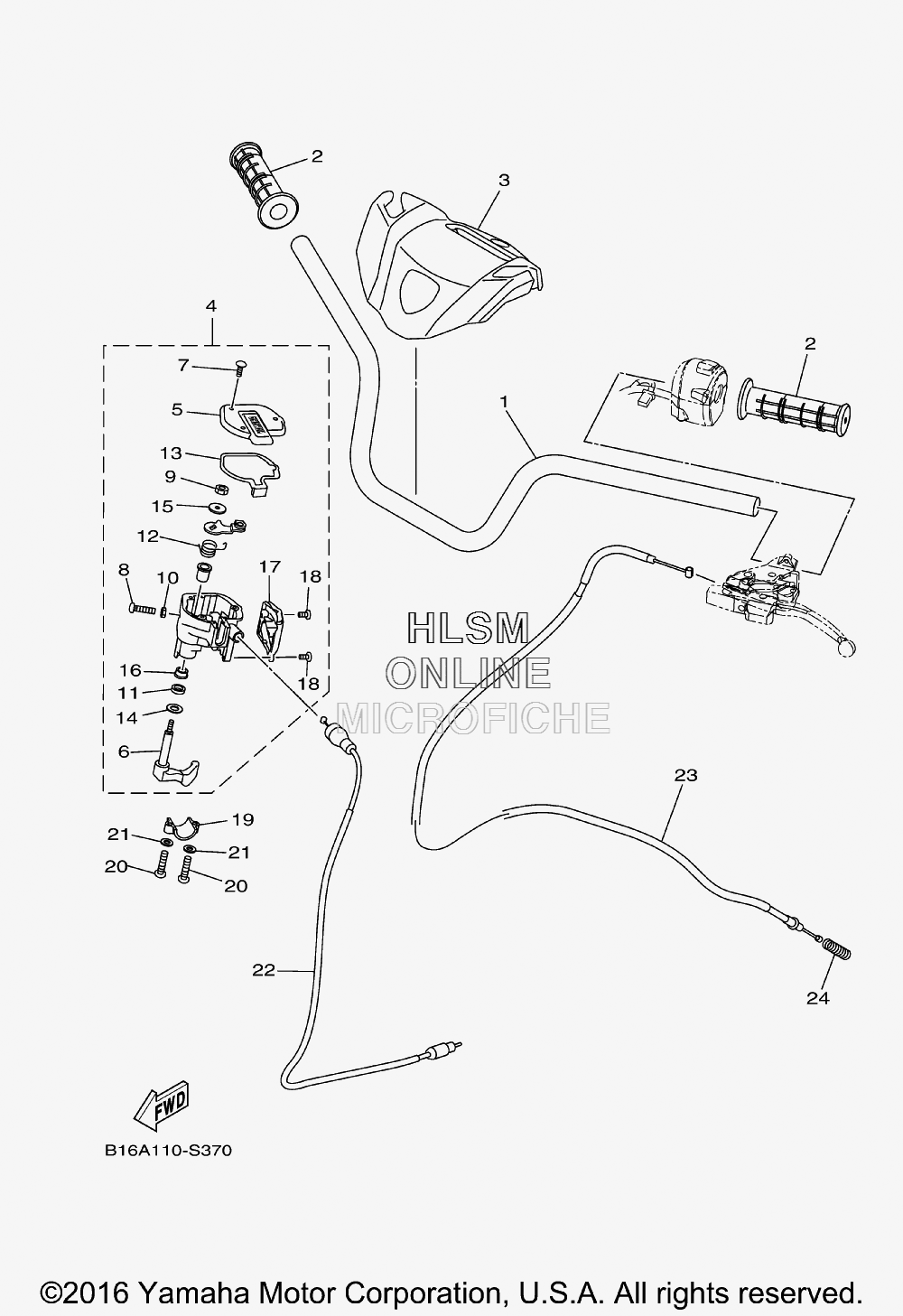

HANDLEBAR W/ CABLES для Yamaha KODIAK 700 4WD [YFM70KDXHG] - 2017 года выпуска
-
№АртикулНазвание
-
1B16-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
3B16-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
4B16-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
528P-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
628P-2625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
790149-04278-00 ...SCREW...SCREW
-
898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
995607-05100-00 ...NUT, U...NUT, U
-
1095307-05700-00 ...NUT...NUT
-
1193104-09025-00 ...OIL SEAL...OIL SEAL
-
121NV-26304-00-00 ...SPRING...SPRING
-
1328P-2628G-00-00 ...GASKET...GASKET
-
141NV-26129-00-00 ...WASHER...WASHER
-
151NV-26398-00-00 ...WASHER...WASHER
-
161NV-2625K-00-00 ...COLLAR...COLLAR
-
17B16-26477-00-00 ...COVER...COVER
-
1898907-04008-00 ...SCREW, BIND...SCREW, BIND
-
191S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2098502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192902-05600-00 WASHER, PLATEWASHER, PLATE
-
22B16-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
23B16-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2490501-121A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
