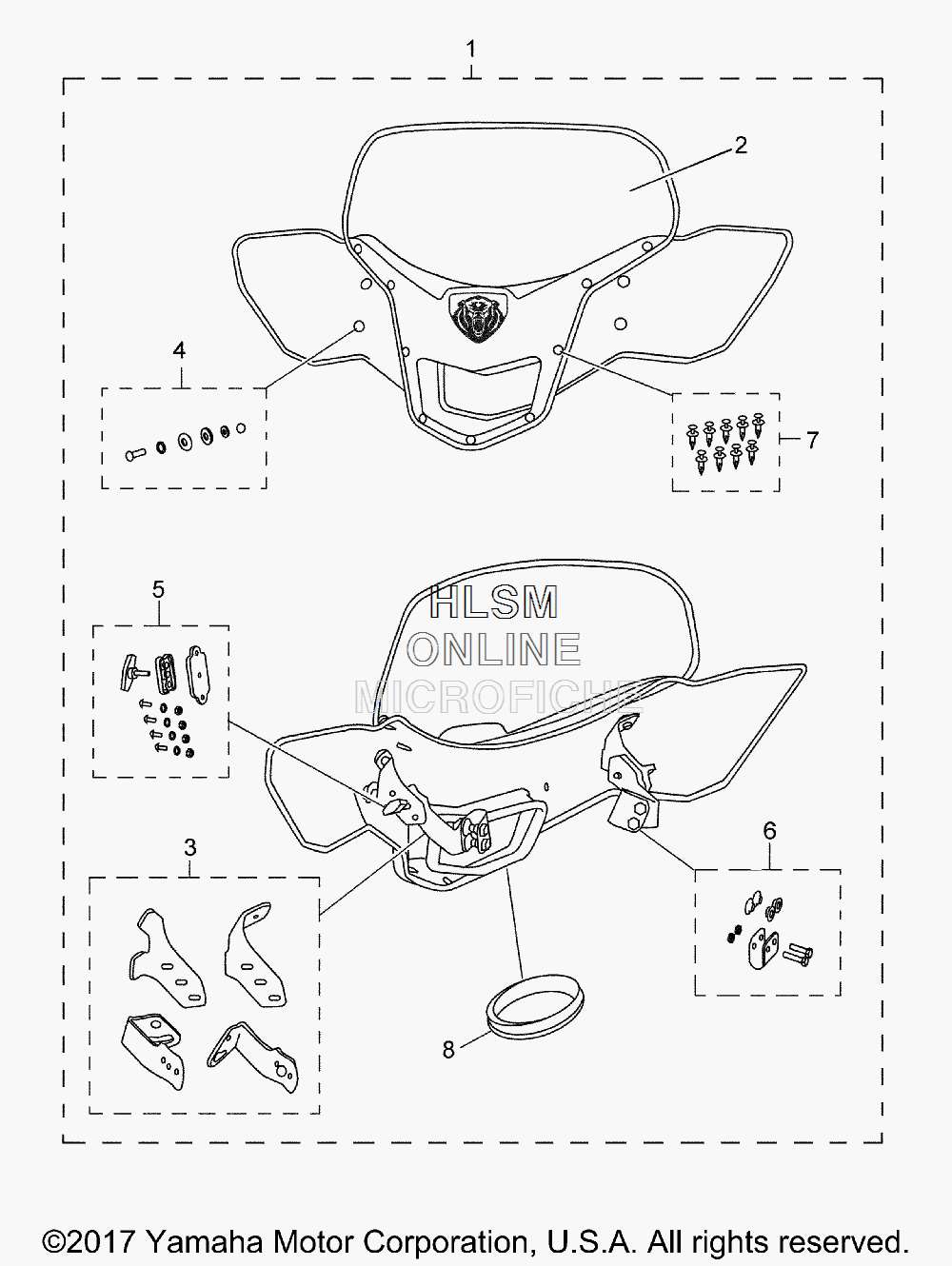

WINDSHIELD (OPTION) для Yamaha GRIZZLY EPS 4WD LE - 2018 года выпуска
-
№АртикулНазвание
-
1B31-F83J0-T0-00 WINDSHIELD ASSY (SILVER)WINDSHIELD ASSY (SILVER)
-
2B31-F8380-V0-00 WINDSHIELDWINDSHIELD
-
3B31-F83J2-T0-00 MOUNTING HARDWARE KITMOUNTING HARDWARE KIT
-
4B31-F83J2-R0-00 HARDWARE KITHARDWARE KIT
-
5B31-F83J2-S0-00 QUICK ATTACH HARDWARE KITQUICK ATTACH HARDWARE KIT
-
6B31-F83J2-V0-00 DOUBLE CLAMP KITDOUBLE CLAMP KIT
-
7B31-F83J2-P0-00 WINDSHIELD PUSH PIN KITWINDSHIELD PUSH PIN KIT
-
8B31-F8376-V0-00 HEADLIGHT SEALHEADLIGHT SEAL
