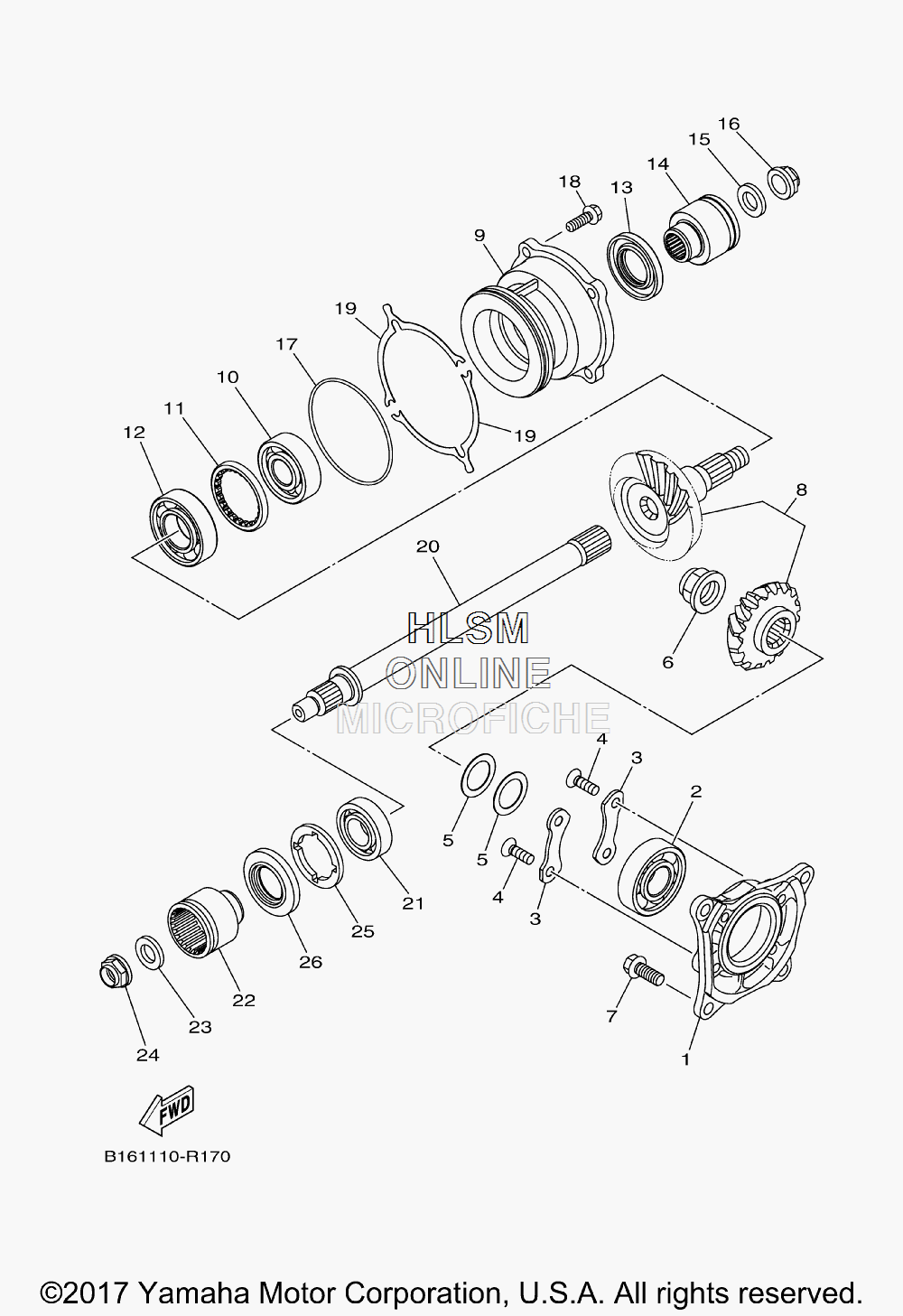

MIDDLE DRIVE GEAR для Yamaha GRIZZLY EPS 4WD (PURPLISH BLUE/BLUISH WHITE) - 2018 года выпуска
-
№АртикулНазвание
-
1B16-E7521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
22MB-E7412-00-00 BEARINGBEARING
-
32MB-E5383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
42MB-E765G-00-00 SCREW, FIXEDSCREW, FIXED
-
52MB-E7417-50-00 SHIM 1 (0.5T) (OPT)SHIM 1 (0.5T) (OPT)
-
52MB-E7417-60-00 SHIM 1 (0.55T) (OPT)SHIM 1 (0.55T) (OPT)
-
52MB-E7417-70-00 SHIM 1 (0.6T) (OPT)SHIM 1 (0.6T) (OPT)
-
52MB-E7417-80-00 SHIM 1 (0.7T) (OPT)SHIM 1 (0.7T) (OPT)
-
52MB-E7417-90-00 SHIM 1 (0.8T) (OPT)SHIM 1 (0.8T) (OPT)
-
52MB-E7417-A0-00 SHIM 1 (0.9T) (OPT)SHIM 1 (0.9T) (OPT)
-
52MB-E7417-B0-00 SHIM 1 (1.0T) (OPT)SHIM 1 (1.0T) (OPT)
-
62MB-E7463-00-00 NUT, LOCKNUT, LOCK
-
72MB-E22A1-00-00 BOLT 2BOLT 2
-
8B16-17530-00-00 PINION SETPINION SET
-
92MB-E7551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
102MB-E7413-00-00 BEARING 2BEARING 2
-
112MB-E7589-00-00 NUTNUT
-
122MB-E7422-00-00 BEARING 1BEARING 1
-
132MB-E7499-00-00 OIL SEALOIL SEAL
-
142MB-E7832-00-00 COUPLINGCOUPLING
-
15B16-E7058-00-00 WASHER,1WASHER,1
-
162MB-E6647-00-00 NUTNUT
-
172MB-E76F4-00-00 O-RINGO-RING
-
182MB-E2615-00-00 BOLTBOLT
-
192MB-E7531-00-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
192MB-E7531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
192MB-E7531-20-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
192MB-E7531-30-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
192MB-E7531-40-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
192MB-E7531-50-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
192MB-E7531-60-00 SHIM, PINION (0.6T) (OPT)SHIM, PINION (0.6T) (OPT)
-
20B16-E761A-00-00 SHAFT 1SHAFT 1
-
212MB-E7423-00-00 BEARING 2BEARING 2
-
222MB-E7832-00-00 COUPLINGCOUPLING
-
23B16-E7058-00-00 WASHER,1WASHER,1
-
242MB-E6647-00-00 NUTNUT
-
252MB-E7642-00-00 NUT, BEARINGNUT, BEARING
-
262MB-E7499-00-00 OIL SEALOIL SEAL
