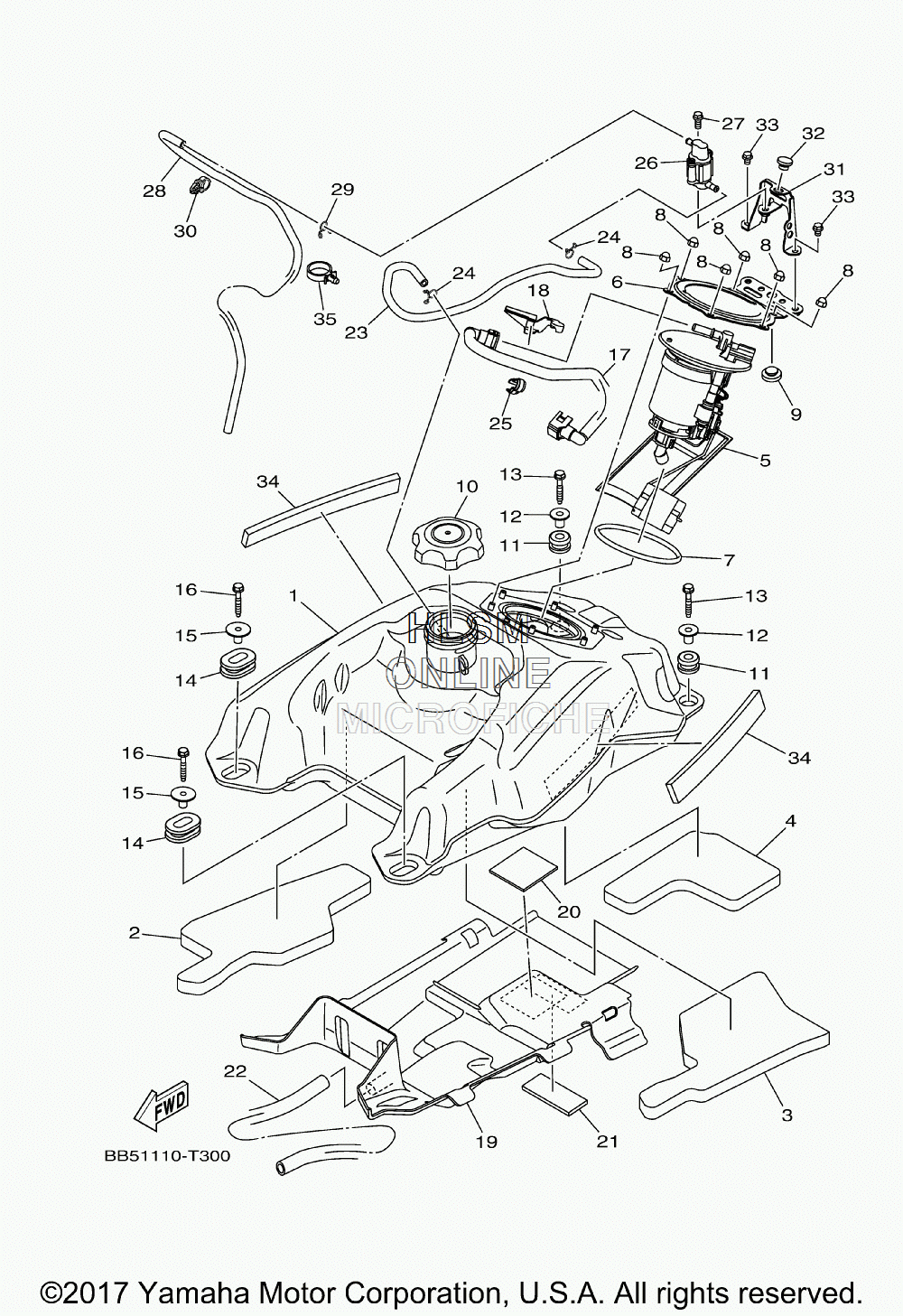

FUEL TANK для Yamaha KODIAK 450 EPS (BLUISH GRAY) - 2018 года выпуска
-
№АртикулНазвание
-
1BB5-F4110-01-00 FUEL TANK COMP.FUEL TANK COMP.
-
2BB5-F172S-00-00 INSULATOR 3INSULATOR 3
-
3BB5-F173S-00-00 INSULATOR 4INSULATOR 4
-
4BB5-F174S-00-00 INSULATOR 5INSULATOR 5
-
5BB5-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
6BB5-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
71S3-24486-00-00 O-RINGO-RING
-
895302-06800-00 NUT, CROWNNUT, CROWN
-
9128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
10BB5-24610-00-00 CAP ASSYCAP ASSY
-
1190480-18290-00 GROMMETGROMMET
-
1290387-066J1-00 COLLARCOLLAR
-
1390119-06883-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490480-01400-00 GROMMETGROMMET
-
1590387-07021-00 COLLARCOLLAR
-
1690119-06883-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17BB5-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1890464-14004-00 CLAMPCLAMP
-
19BB5-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
205HP-2174Y-00-00 DAMPERDAMPER
-
21BB5-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
2290445-19005-00 HOSE (L700)HOSE (L700)
-
23BB5-F4312-00-00 PIPE 2PIPE 2
-
2490467-09006-00 CLIPCLIP
-
2590464-15065-00 CLAMPCLAMP
-
26BB5-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
2795022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2890445-095K5-00 HOSE (L960)HOSE (L960)
-
2990467-09006-00 CLIPCLIP
-
3090464-10833-00 CLAMPCLAMP
-
31BB5-F4216-00-00 STAYSTAY
-
3290338-11125-00 PLUGPLUG
-
3395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
3490520-08001-00 DAMPER, PLATEDAMPER, PLATE
-
3590464-24230-00 CLAMPCLAMP
