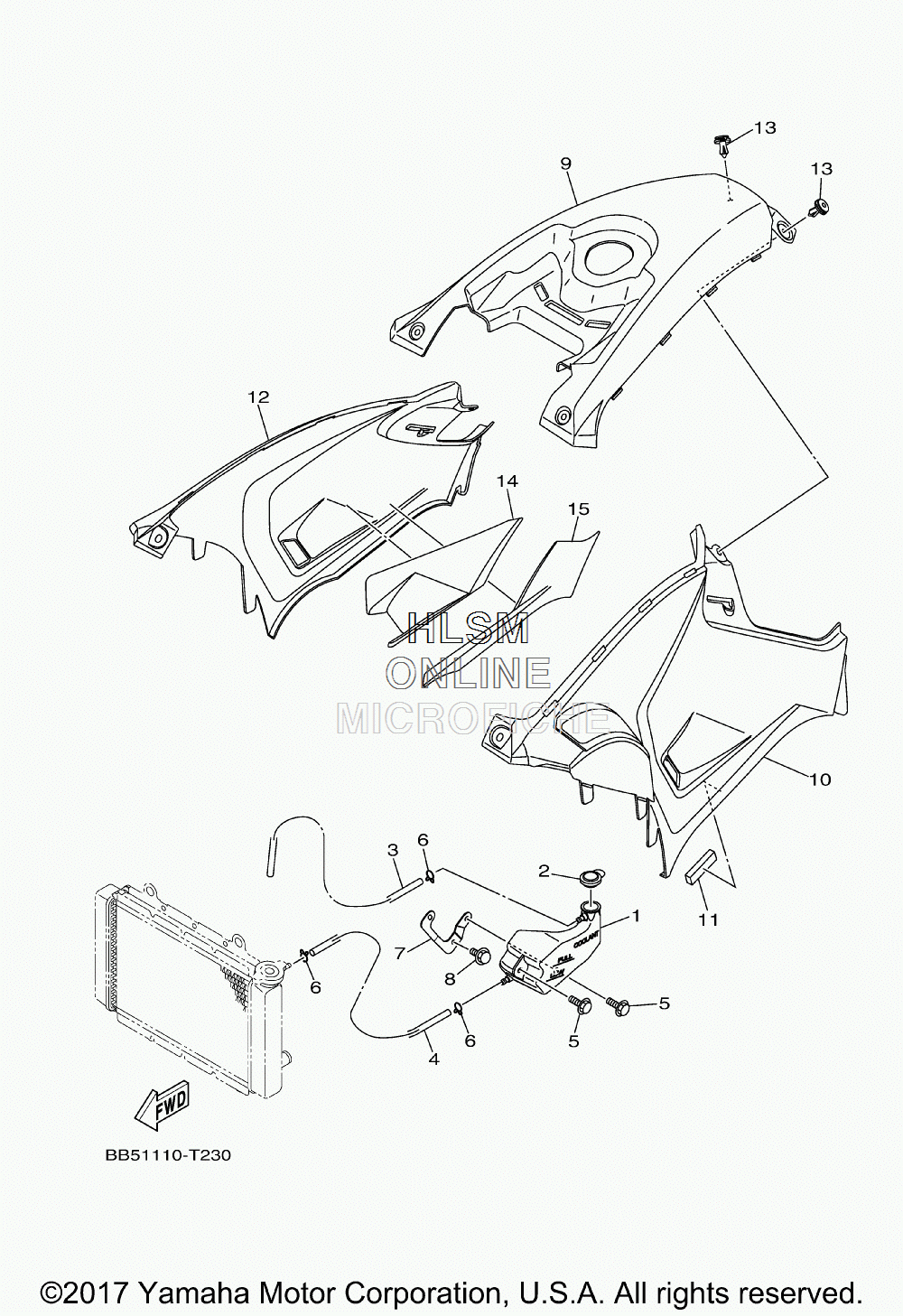

SIDE COVER для Yamaha KODIAK 450 - 2018 года выпуска
-
№АртикулНазвание
-
11CT-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21S3-21875-00-00 CAPCAP
-
390445-08811-00 HOSE (L1020)HOSE (L1020)
-
490445-08812-00 HOSE (L730)HOSE (L730)
-
590119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690467-08003-00 CLIPCLIP
-
7BB5-F172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
895802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
9BB5-F171A-01-00 COVER, TOPCOVER, TOP
-
10BB5-F1711-10-00 COVER, SIDE 1 (RTR - ROMANTIQUE ROUGE)COVER, SIDE 1 (RTR - ROMANTIQUE ROUGE)
-
10BB5-F1711-00-00 COVER, SIDE 1 (PDG - PASTEL DEEP GREEN)COVER, SIDE 1 (PDG - PASTEL DEEP GREEN)
-
11BB5-F177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
12BB5-F1721-10-00 COVER, SIDE 2 (RTR - ROMANTIQUE ROUGE)COVER, SIDE 2 (RTR - ROMANTIQUE ROUGE)
-
12BB5-F1721-00-00 COVER, SIDE 2 (PDG - PASTEL DEEP GREEN)COVER, SIDE 2 (PDG - PASTEL DEEP GREEN)
-
1390269-07010-00 RIVETRIVET
-
14BB5-F174M-00-00 CLOTH, PROTECTORCLOTH, PROTECTOR
-
15BB5-F174A-00-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
