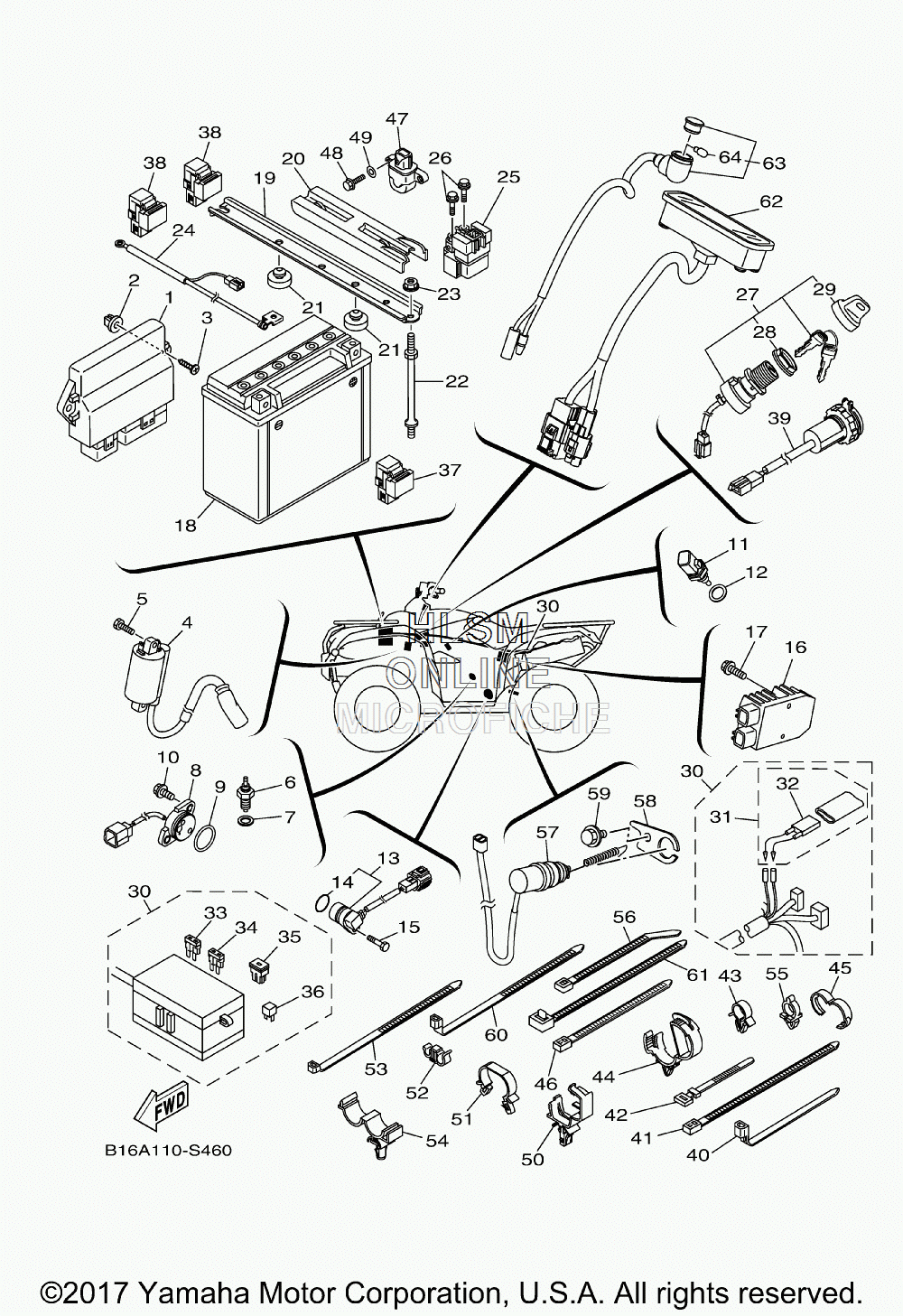

ELECTRICAL для Yamaha KODIAK 700 4WD HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
1B16-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
290338-08226-00 PLUGPLUG
-
397702-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
4B16-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
597012-06016-00 BOLTBOLT
-
62MB-H2540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
72MB-E5384-00-00 GASKETGASKET
-
8B16-H2540-10-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
92MB-E4D97-00-00 O-RINGO-RING
-
102MB-E5768-10-00 BOLTBOLT
-
112MB-H5790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
122MB-E1195-00-00 GASKETGASKET
-
132MB-H3755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
144D9-81168-00-00 ...O-RING...O-RING
-
152MB-E5481-10-00 BOLT 1BOLT 1
-
161D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1795812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
185FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
191HP-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
203B4-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2122W-24741-00-00 PAD, SEATPAD, SEAT
-
223B4-82133-11-00 SCREW, FITTINGSCREW, FITTING
-
2395702-06500-00 NUT, FLANGENUT, FLANGE
-
2428P-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
253B4-81940-00-00 STARTER RELAY ASSY (2768113-A)STARTER RELAY ASSY (2768113-A)
-
2695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2728P-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
283HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
293HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
30B16-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
314GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
324GB-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
335JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
345JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
355PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
363WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
375DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
388DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
391HP-H254B-10-00 TERMINAL COMP.TERMINAL COMP.
-
4090464-15195-00 CLAMPCLAMP
-
4190464-40825-00 CLAMPCLAMP
-
42437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4390464-15157-00 CLAMPCLAMP
-
4490464-20181-00 CLAMPCLAMP
-
4590464-16001-00 CLAMPCLAMP
-
46437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
473B4-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4897002-05016-00 BOLTBOLT
-
4992902-05600-00 WASHER, PLATEWASHER, PLATE
-
5090464-20237-00 CLAMPCLAMP
-
5190464-24230-00 CLAMPCLAMP
-
5290464-09013-00 CLAMPCLAMP
-
5390464-12045-00 CLAMPCLAMP
-
5490464-16012-00 CLAMPCLAMP
-
5590464-10833-00 CLAMPCLAMP
-
5690465-10098-00 CLAMPCLAMP
-
5718P-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
58B16-21441-00-00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
5995822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
6090465-13M11-00 CLAMPCLAMP
-
6190464-13073-00 CLAMPCLAMP
-
62B16-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
63B16-83582-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
645GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
