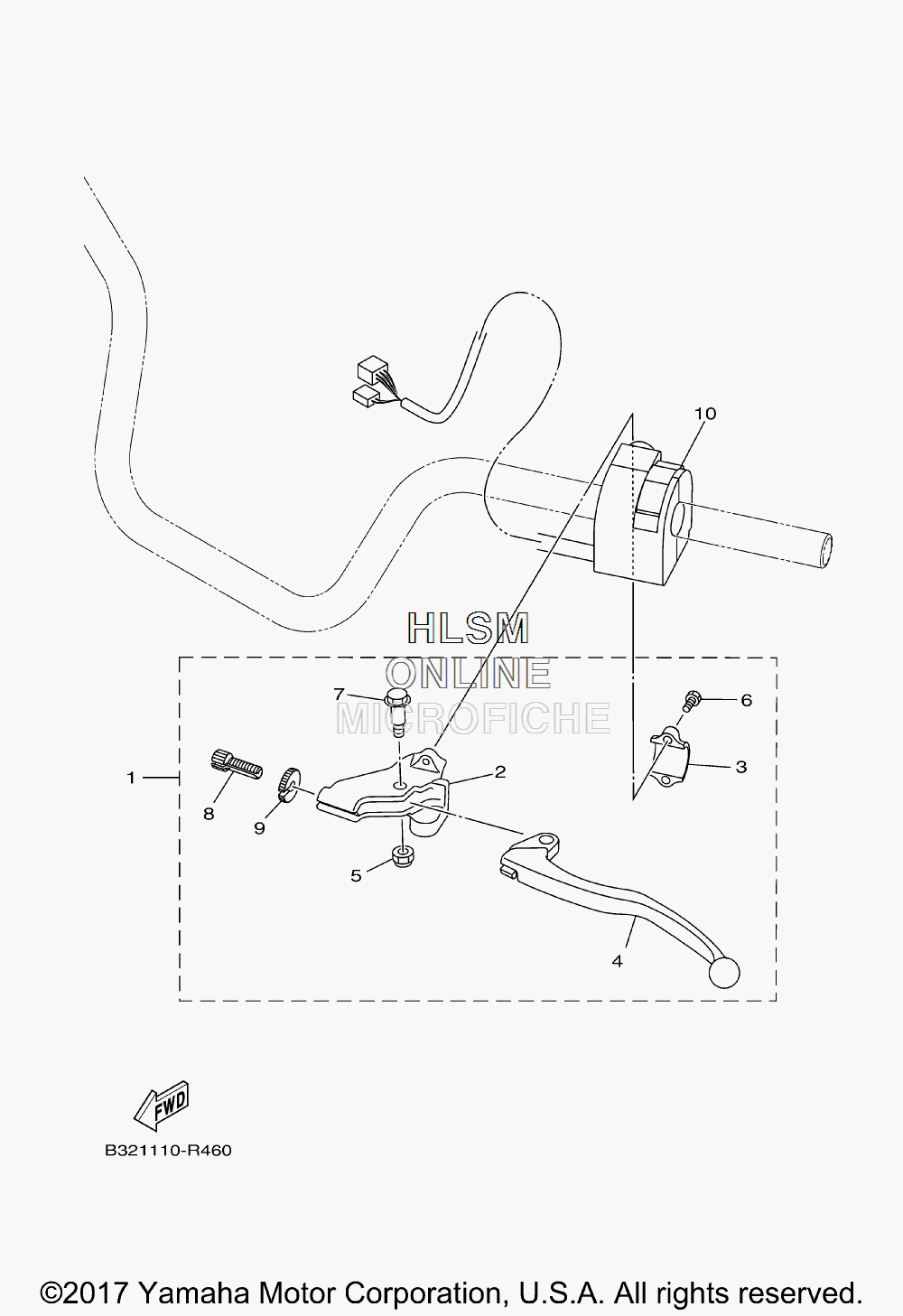

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha KODIAK 700 EPS 4WD (BLUISH GRAY) - 2018 года выпуска
-
№АртикулНазвание
-
1B16-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
2B16-82911-00-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
35TG-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
42HT-83912-01-00 ...LEVER 1...LEVER 1
-
595602-06100-00 ...NUT, S/L...NUT, S/L
-
690101-05033-00 ...BOLT...BOLT
-
790109-06798-00 ...BOLT...BOLT
-
890123-08002-00 ...BOLT...BOLT
-
990179-08030-00 ...NUT...NUT
-
1028P-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
