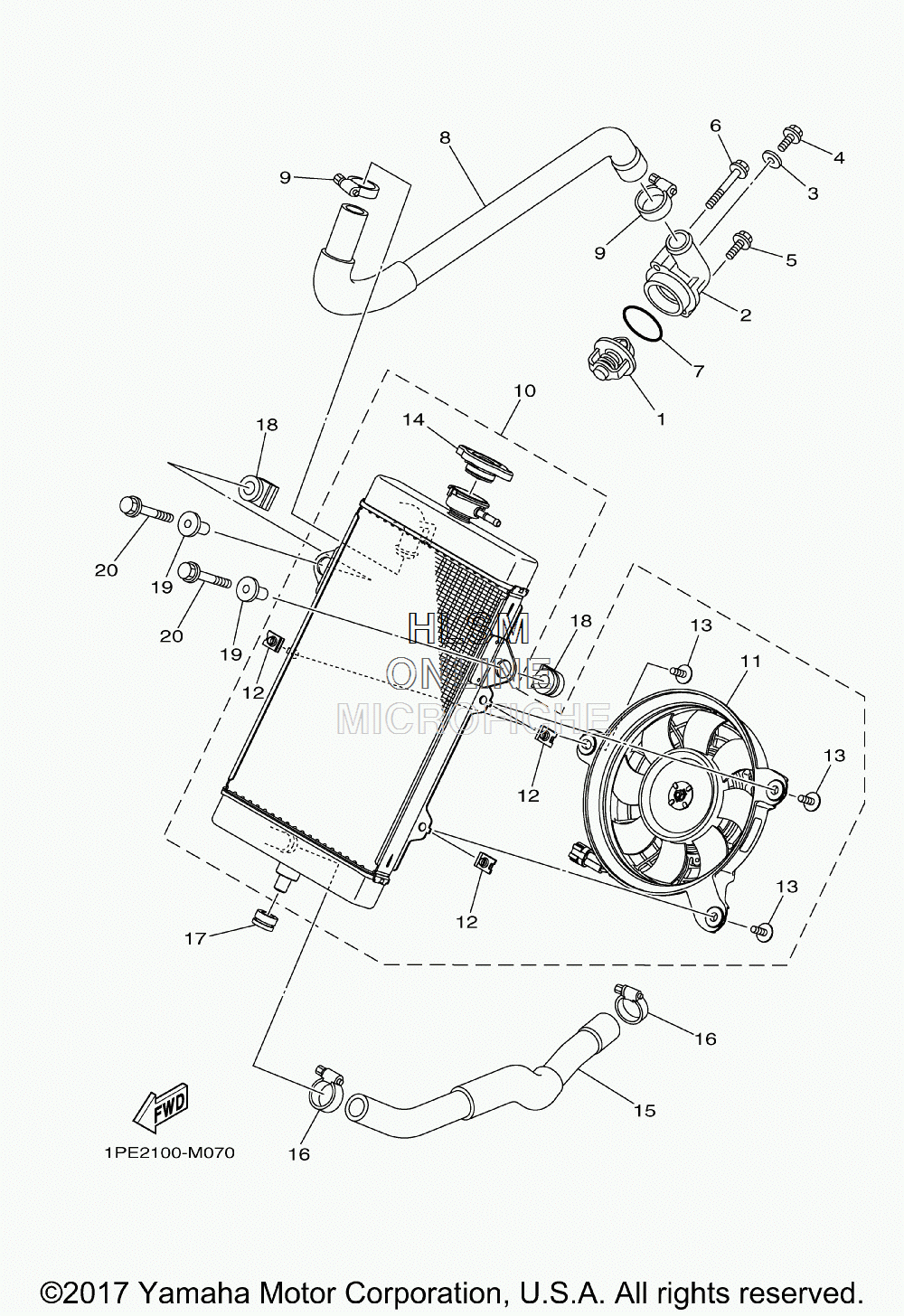

RADIATOR ASSY для Yamaha RAPTOR 700 - 2018 года выпуска
-
№АртикулНазвание
-
15VK-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
21S3-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
390430-06014-00 GASKETGASKET
-
495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
695022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
793210-41042-00 O-RINGO-RING
-
81PE-E2578-00-00 HOSE 3HOSE 3
-
990467-26189-00 CLIPCLIP
-
101PE-E2460-01-00 RADIATOR ASSYRADIATOR ASSY
-
111PE-E2405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
121PE-E2535-00-00 ...PLATE...PLATE
-
131PE-E2675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
141XD-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
151PE-E2579-00-00 HOSE 4HOSE 4
-
1690450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1790480-18330-00 GROMMETGROMMET
-
181S3-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
1990387-06166-00 COLLARCOLLAR
-
2095802-06030-00 BOLT, FLANGEBOLT, FLANGE
