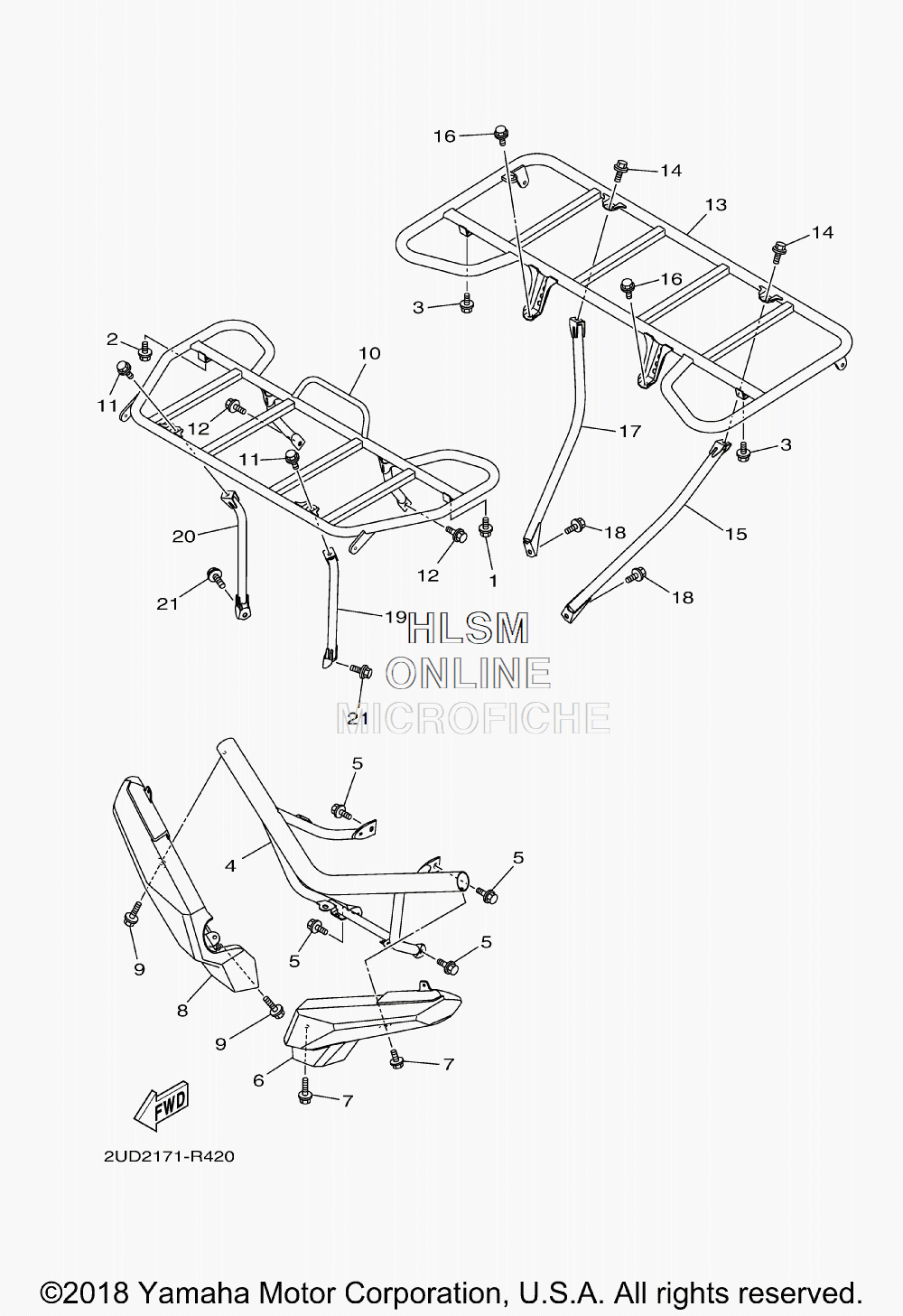

GUARD для Yamaha GRIZZLY EPS 4WD SE - 2019 года выпуска
-
№АртикулНазвание
-
190119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
290119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42UD-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
595812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
62UD-F842M-00-00 COVER 1COVER 1
-
790119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
82UD-F842N-00-00 COVER 2COVER 2
-
990119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
102UD-F4841-10-00 CARRIER, FRONTCARRIER, FRONT
-
1195812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1290119-08118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
132UD-F4842-10-00 CARRIER, REARCARRIER, REAR
-
1495812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
152UD-F482J-00-00 FRAME, CARRIER 1FRAME, CARRIER 1
-
1690119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
172UD-F482K-00-00 FRAME, CARRIER 2FRAME, CARRIER 2
-
1890119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
192UD-F2815-00-00 FRAME, CARRIER 1FRAME, CARRIER 1
-
202UD-F2816-00-00 FRAME, CARRIER 2FRAME, CARRIER 2
-
2195812-08014-00 BOLT, FLANGEBOLT, FLANGE
