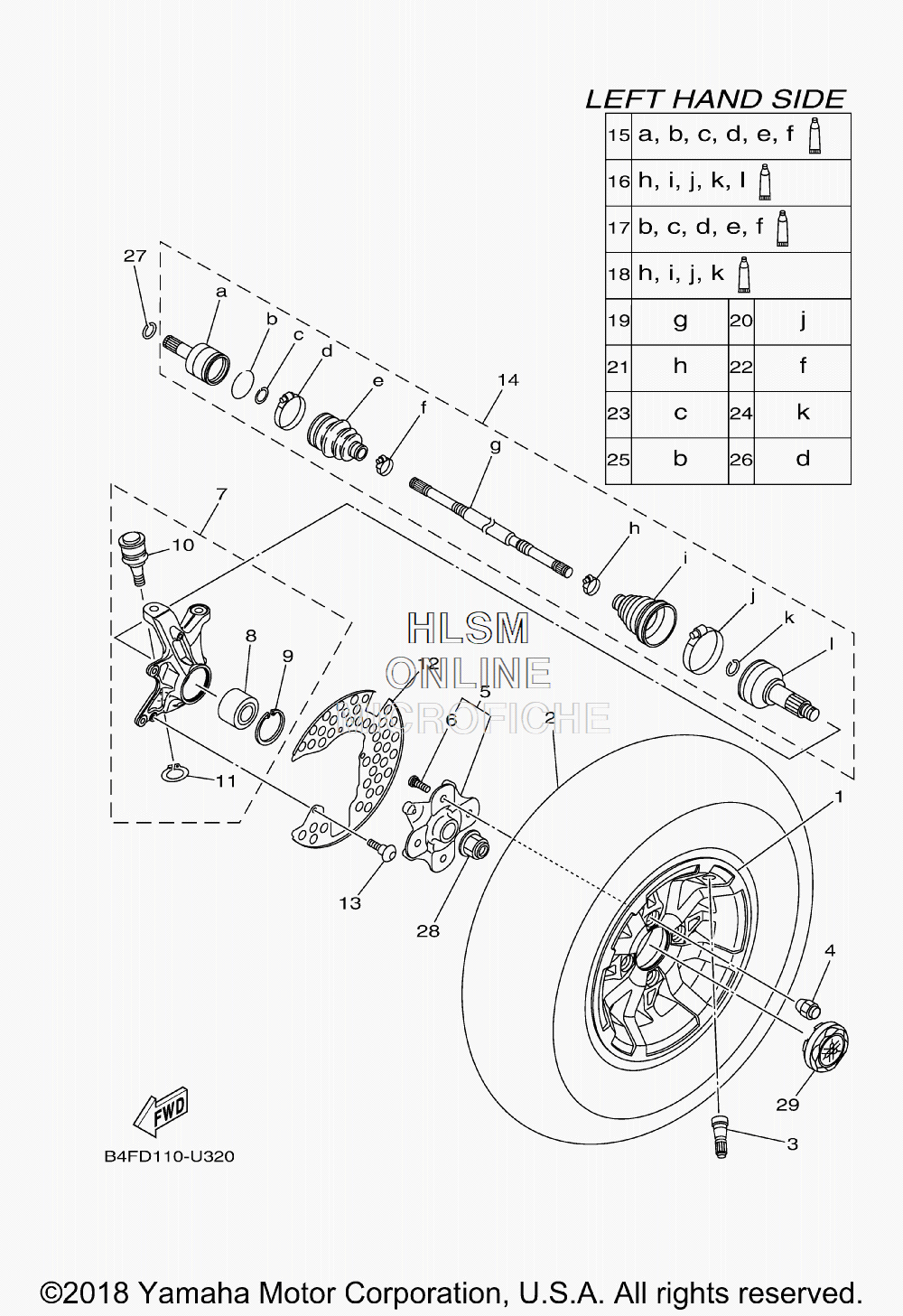

WHEEL - FRONT LEFT W/ AXLE ASSY для Yamaha GRIZZLY EPS 4WD - 2019 года выпуска
-
№АртикулНазвание
-
1B32-F5168-10-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
294108-12822-00 TIRE (AT26X8-12 MU05Y**TL) (MAXXIS)TIRE (AT26X8-12 MU05Y**TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490179-10032-00 NUTNUT
-
5B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F3501-11-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
103B4-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
1199009-30400-00 ...CIRCLIP...CIRCLIP
-
12BB5-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
1398902-06010-00 SCREW, BINDSCREW, BIND
-
142UD-2518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
152UD-2510J-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
162UD-2510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
172UD-2510H-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
182UD-2510G-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
192UD-2518E-00-00 ...SHAFT...SHAFT
-
202UD-2511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
212UD-2512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
222UD-2512G-10-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
233B4-2512J-00-00 ...SNAP RING...SNAP RING
-
242UD-2512H-00-00 ...CIRCLIP...CIRCLIP
-
253B4-25182-00-00 ...CIRCLIP...CIRCLIP
-
262UD-2511H-10-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
2793450-22119-00 CIRCLIPCIRCLIP
-
2890179-20016-00 NUTNUT
-
291RB-F530B-10-00 WHEEL CAP ASSYWHEEL CAP ASSY
