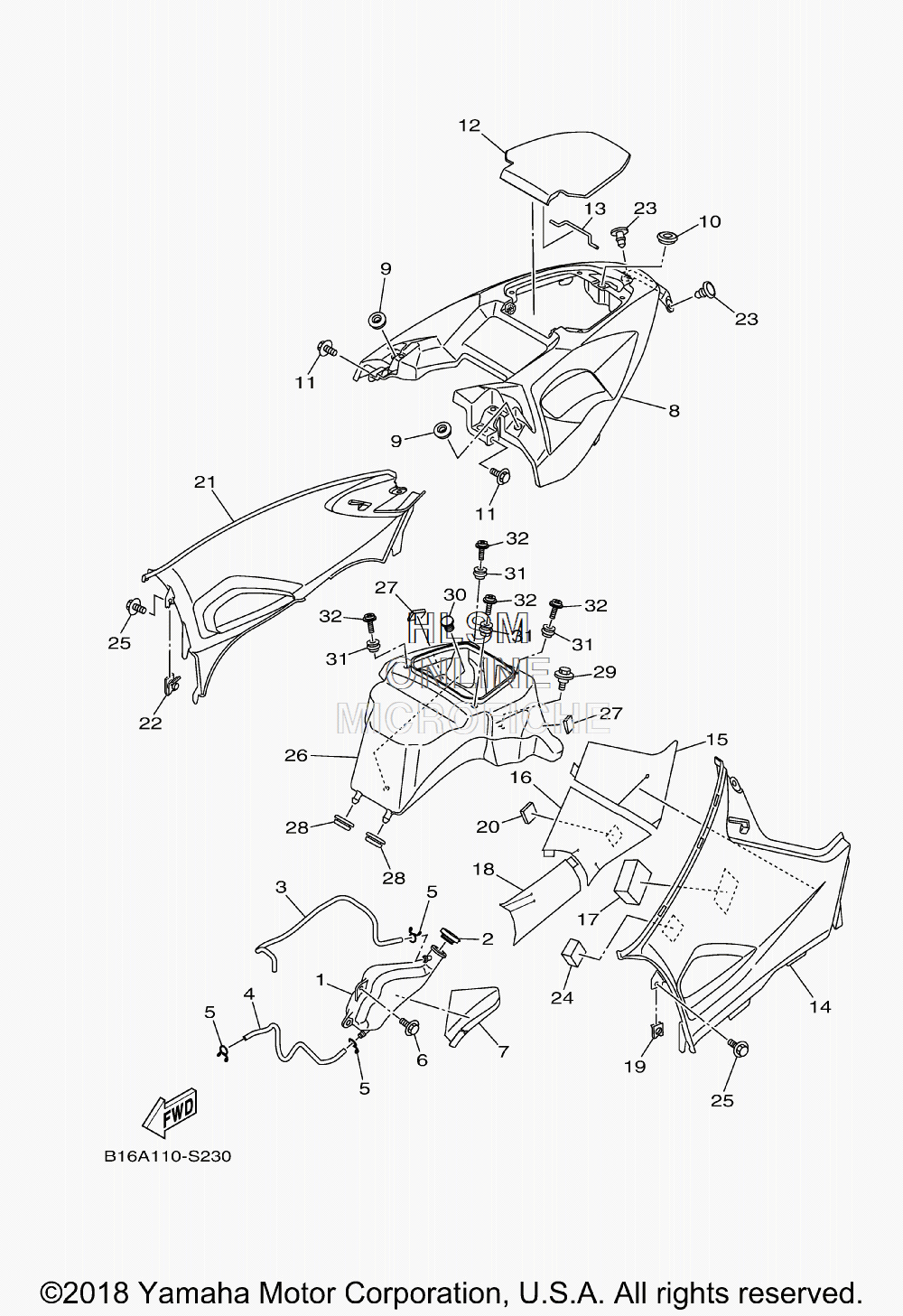

SIDE COVER для Yamaha KODIAK 700 EPS 4WD SPECIAL EDITION (BLACK) - 2019 года выпуска
-
№АртикулНазвание
-
11HP-F1871-01-00 TANK, RECOVERYTANK, RECOVERY
-
21S3-21875-00-00 CAPCAP
-
390445-08841-00 HOSE (L540)HOSE (L540)
-
490445-08840-00 HOSE (L420)HOSE (L420)
-
590467-08003-00 CLIPCLIP
-
690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
71HP-F176E-00-00 PLATEPLATE
-
8B16-F171C-30-00 TOP COVER COMP. (LGB - LOW GLOSS BLACK)TOP COVER COMP. (LGB - LOW GLOSS BLACK)
-
990480-13567-00 GROMMETGROMMET
-
1090480-01558-00 GROMMETGROMMET
-
1190119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12B16-F17P0-30-00 LID COVER COMP. (LGB - LOW GLOSS BLACK)LID COVER COMP. (LGB - LOW GLOSS BLACK)
-
133B4-2177K-00-00 PIN, HINGEPIN, HINGE
-
14B16-F1711-40-00 COVER, SIDE 1 (LGB - LOW GLOSS BLACK)COVER, SIDE 1 (LGB - LOW GLOSS BLACK)
-
15B16-F174A-01-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
16B16-F173N-01-00 SEAL 4SEAL 4
-
173B4-2174Y-00-00 DAMPERDAMPER
-
18B16-F173M-01-00 SEAL 3SEAL 3
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
203B4-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
21B16-F1721-40-00 COVER, SIDE 2 (LGB - LOW GLOSS BLACK)COVER, SIDE 2 (LGB - LOW GLOSS BLACK)
-
2290183-06053-00 NUT, SPRINGNUT, SPRING
-
2390269-07010-00 RIVETRIVET
-
2490520-50800-00 DAMPER, PLATEDAMPER, PLATE
-
2590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26B16-F177A-01-00 BOXBOX
-
2790520-10027-00 DAMPER, PLATEDAMPER, PLATE
-
2890480-01558-00 GROMMETGROMMET
-
2990109-06202-00 BOLTBOLT
-
3090605-502U1-00 PLUG, BLINDPLUG, BLIND
-
3190179-05523-00 NUTNUT
-
3290159-05053-00 SCREW, WITH WASHERSCREW, WITH WASHER
