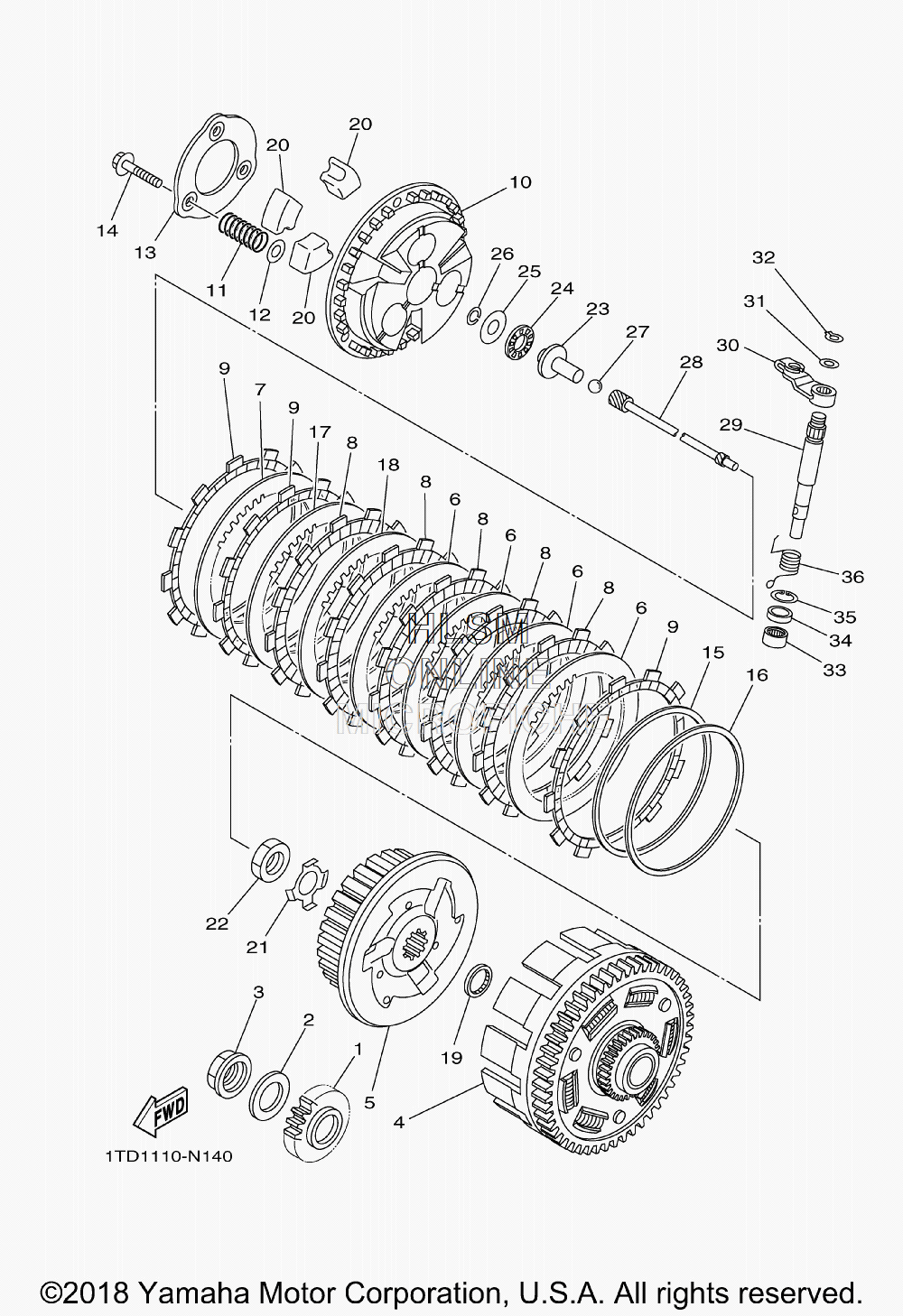

CLUTCH для Yamaha YFZ 450R - 2019 года выпуска
-
№АртикулНазвание
-
12S2-16111-60-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290208-25045-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
390179-20009-00 NUTNUT
-
41TD-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
51TD-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
64X7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
71TD-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
85VY-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
91TD-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
101TD-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
111TD-16333-00-00 SPRING, CLUTCH 1SPRING, CLUTCH 1
-
121TD-16774-00-00 WASHERWASHER
-
131TD-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
141TD-16337-00-00 SCREW, SPRINGSCREW, SPRING
-
151TD-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
161TD-16384-00-00 PLATE, SEATPLATE, SEAT
-
175JG-16325-00-00 PLATE, CLUTCH 2 (T=1.2) (OPT)PLATE, CLUTCH 2 (T=1.2) (OPT)
-
174X7-16325-00-00 PLATE, CLUTCH 2 (T=1.6) (OPT)PLATE, CLUTCH 2 (T=1.6) (OPT)
-
171TA-16325-00-00 PLATE, CLUTCH 2 (T=2.0) (OPT)PLATE, CLUTCH 2 (T=2.0) (OPT)
-
185JG-16325-00-00 PLATE, CLUTCH 2 (T=1.2) (OPT)PLATE, CLUTCH 2 (T=1.2) (OPT)
-
184X7-16325-00-00 PLATE, CLUTCH 2 (T=1.6) (OPT)PLATE, CLUTCH 2 (T=1.6) (OPT)
-
181TA-16325-00-00 PLATE, CLUTCH 2 (T=2.0) (OPT)PLATE, CLUTCH 2 (T=2.0) (OPT)
-
195TA-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
201TD-16178-00-00 ABSORBER 3ABSORBER 3
-
2190215-20005-00 WASHER, LOCKWASHER, LOCK
-
2290170-20327-00 NUTNUT
-
235TG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2493340-21505-00 BEARINGBEARING
-
2590201-125L6-00 WASHER, PLATEWASHER, PLATE
-
2693440-10085-00 CIRCLIPCIRCLIP
-
2793515-32029-00 BALLBALL
-
2818P-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2918P-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
3018P-16342-00-00 LEVER, PUSHLEVER, PUSH
-
3190201-10032-00 WASHER, PLATEWASHER, PLATE
-
3299009-10400-00 CIRCLIPCIRCLIP
-
3393317-11287-00 BEARINGBEARING
-
3493102-12224-00 OIL SEALOIL SEAL
-
3599009-20500-00 CIRCLIPCIRCLIP
-
3690508-16061-00 SPRING, TORSIONSPRING, TORSION
