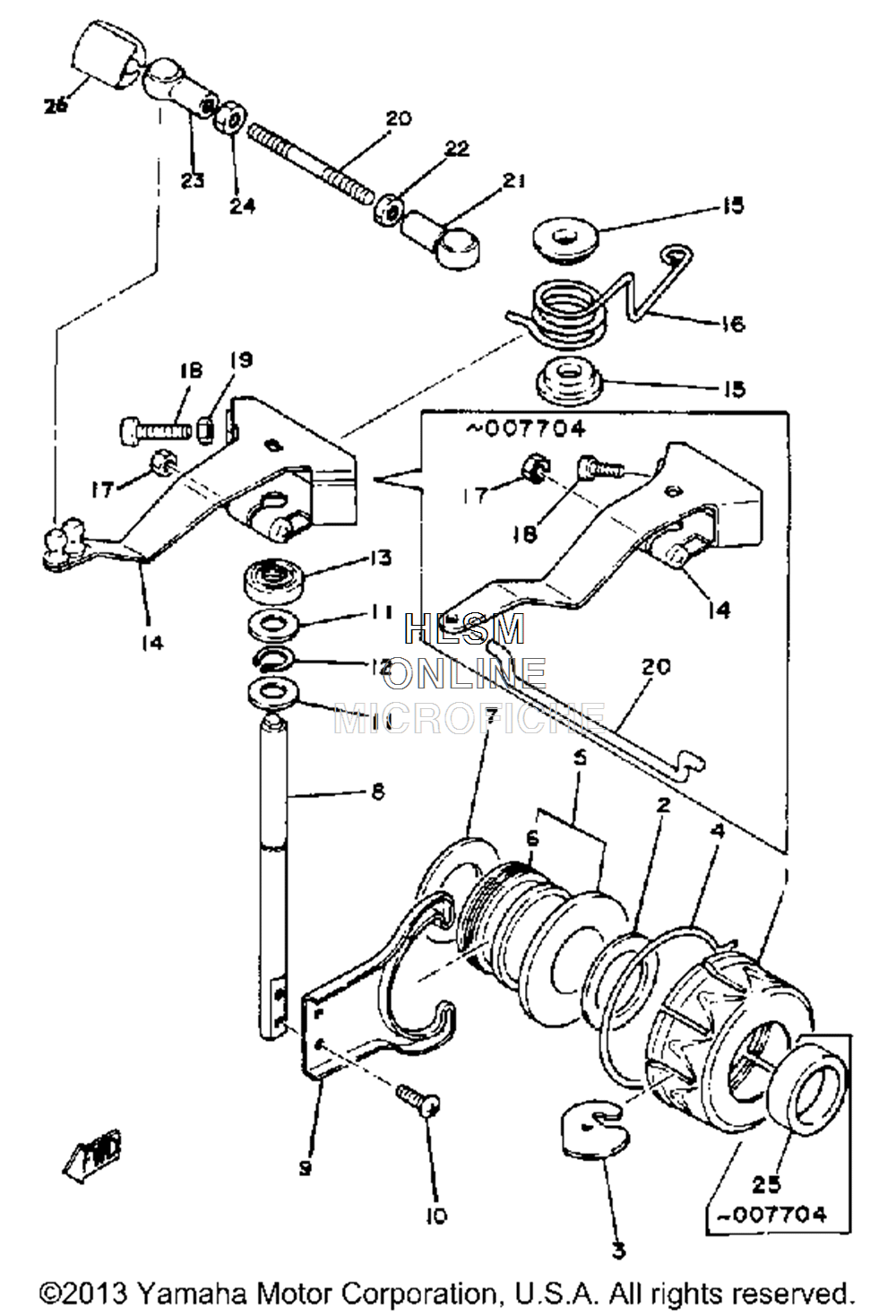

GOVERNOR для Yamaha GOLF CAR GAS [G1A1] (J10) - 1980 года выпуска
-
№АртикулНазвание
-
1J10-27912-00-00 RETAINERRETAINER
-
290387-21690-00 COLLARCOLLAR
-
3J10-27913-00-00 WEIGHTWEIGHT
-
4J10-27911-00-00 HOLDERHOLDER
-
5J10-27927-00-00 LIFTERLIFTER
-
693342-22518-00 BEARINGBEARING
-
790201-20269-00 WASHER, PLATEWASHER, PLATE
-
8J10-27921-00-00 SHAFT, GOVERNOR (NOT AVAIL)SHAFT, GOVERNOR (NOT AVAIL)
-
8J10-27921-01-00 SHAFT, GOVERNOR (7705~)SHAFT, GOVERNOR (7705~)
-
9J10-27922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
1098580-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1190202-08110-00 WASHER, PLATEWASHER, PLATE
-
1299001-06600-00 CIRCLIPCIRCLIP
-
1393109-08050-00 OIL SEALOIL SEAL
-
14J10-27951-01-00 LEVER, SPEED LIMITER (7705~)LEVER, SPEED LIMITER (7705~)
-
14J10-27951-00-00 LEVER, SPEED LMTR (NOT AVAIL)LEVER, SPEED LMTR (NOT AVAIL)
-
1590385-08034-00 BUSH, SPECIAL RUBBERBUSH, SPECIAL RUBBER
-
1690508-35397-00 SPRING, (NOT AVAILABLE)SPRING, (NOT AVAILABLE)
-
1690508-40398-00 SPRING, TORSIONSPRING, TORSION
-
1795380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
18J10-27959-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
1995311-05700-00 NUT (891~)NUT (891~)
-
20J10-27979-00-00 ROD, THRL (NOT AVAILABLE)ROD, THRL (NOT AVAILABLE)
-
20J10-14836-00-00 ROD (7705~)ROD (7705~)
-
21J10-14833-01-00 JOINT (7705~)JOINT (7705~)
-
2295311-05700-00 NUT (7705~)NUT (7705~)
-
23J10-14864-01-00 JOINT (LH THREAD, 7705~)JOINT (LH THREAD, 7705~)
-
2490170-05190-00 NUT, HEXAGON (LH THREAD, 7705~)NUT, HEXAGON (LH THREAD, 7705~)
-
2590387-24691-00 COLLARCOLLAR
-
2690468-05112-00 CLIPCLIP
