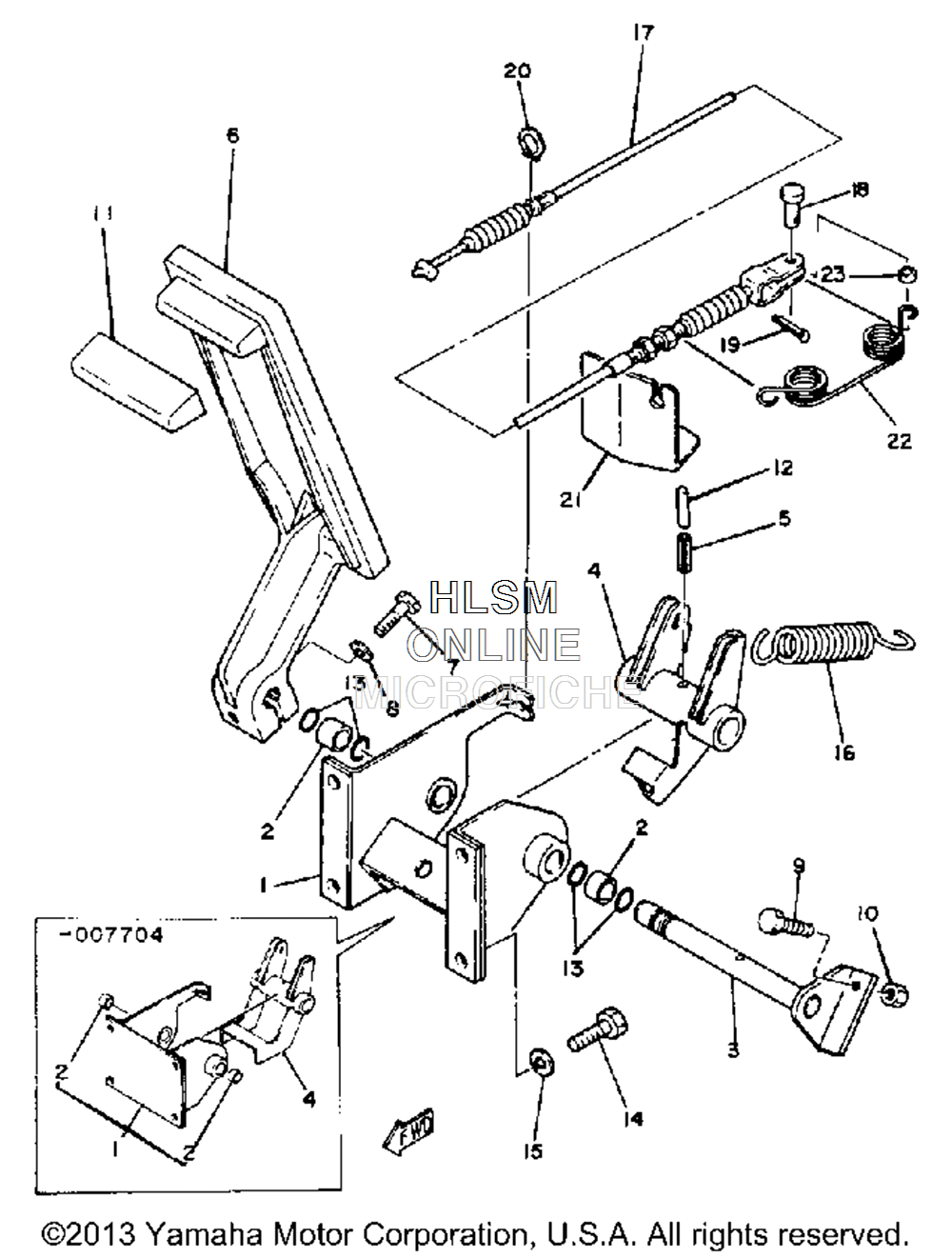

ACCELERATOR для Yamaha GOLF CAR GAS [G1A2] (J10) - 1981 года выпуска
-
№АртикулНазвание
-
1J10-27874-01-00 BRACKET, ACCELERATOR PEDAL (7705~)BRACKET, ACCELERATOR PEDAL (7705~)
-
1J10-27870-00-00 BRKT, ACCLTR (NOT AVAILABLE) PBRKT, ACCLTR (NOT AVAILABLE) P
-
290384-14080-00 BUSH, BIMETAL FORMED (7705~)BUSH, BIMETAL FORMED (7705~)
-
290384-14079-00 ...BUSH, (NOT AVAILABLE)...BUSH, (NOT AVAILABLE)
-
3J10-27853-02-00 SHAFT, PEDAL 1SHAFT, PEDAL 1
-
4J17-27872-00-00 ARM, ACCELERATOR PEDAL (7705~)ARM, ACCELERATOR PEDAL (7705~)
-
4J10-27872-00-00 ARM, ACC PEDAL (NOT AVAIL)ARM, ACC PEDAL (NOT AVAIL)
-
591609-60025-00 PIN, SPRINGPIN, SPRING
-
6JF3-27871-00-00 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
797011-06025-00 BOLTBOLT
-
892995-06100-00 WASHER, SPRINGWASHER, SPRING
-
990106-06042-00 BOLT, DOME HEAD (90101-06422-00BOLT, DOME HEAD (90101-06422-00
-
1095380-06700-00 NUTNUT
-
11J10-27852-00-00 CUP 1CUP 1
-
1291609-35028-00 PIN, SPRINGPIN, SPRING
-
1393210-14104-00 O-RING (7705~)O-RING (7705~)
-
1497301-06014-00 BOLT, HEXAGONBOLT, HEXAGON
-
1592995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1690506-29187-00 SPRING, TENSIONSPRING, TENSION
-
17J17-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1891790-05012-00 PIN (7766~)PIN (7766~)
-
1891790-05010-00 PIN, CLEVISPIN, CLEVIS
-
1991490-16020-00 PIN, COTTERPIN, COTTER
-
2099080-07600-00 CLIPCLIP
-
21J10-27981-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
2290508-16460-00 SPRING, TORSION (7766~)SPRING, TORSION (7766~)
-
2390560-05001-00 SPACER (7766~)SPACER (7766~)
