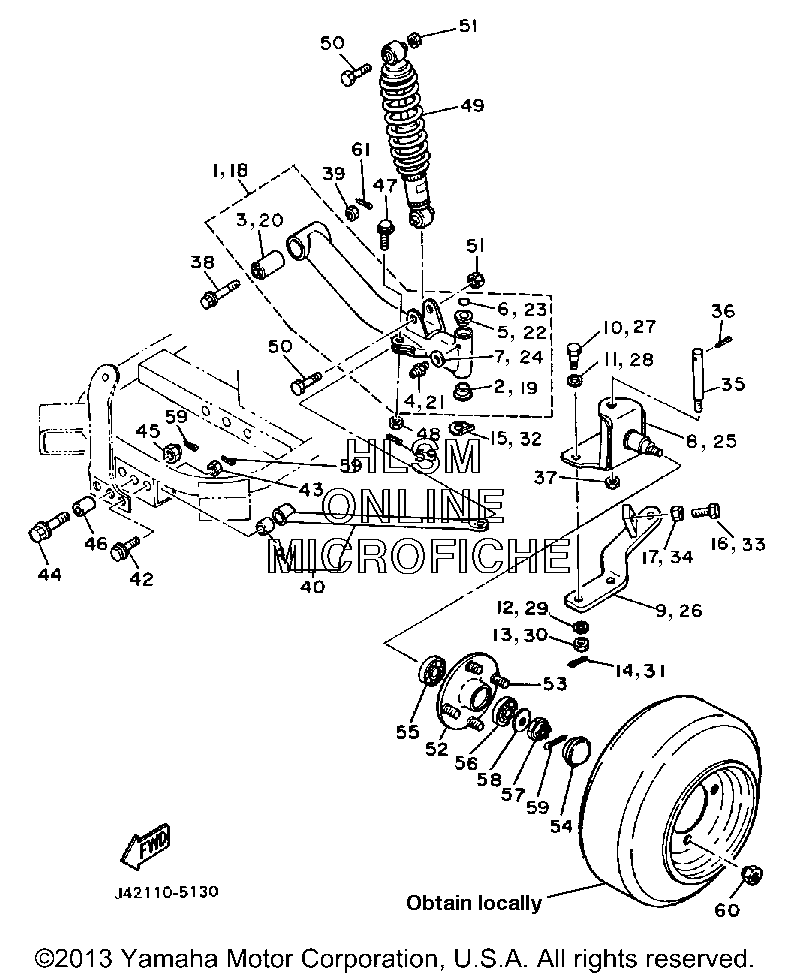

SUSPENSION - FRONT WHEEL для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J42-W2351-00-00 FRONT LOWER ARM COMP. (L.H)FRONT LOWER ARM COMP. (L.H)
-
290381-15032-00 ...BUSH, SOLID...BUSH, SOLID
-
3J10-23526-00-00 ...BUSH...BUSH
-
493700-06M03-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
590381-15040-00 ...BUSH, SOLID...BUSH, SOLID
-
693210-15566-00 ...O-RING...O-RING
-
790201-067F9-00 ...WASHER, PLATE...WASHER, PLATE
-
8J17-23510-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
9J11-23512-00-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
1090109-10643-00 BOLTBOLT
-
1190201-121F0-00 WASHER, PLATEWASHER, PLATE
-
1290201-105F2-00 WASHER, PLATEWASHER, PLATE
-
1390171-10035-00 NUT, CASTLENUT, CASTLE
-
1491490-25030-00 PIN. COTTERPIN. COTTER
-
1590214-16027-00 WASHER, CLAWWASHER, CLAW
-
1697313-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
1795303-08700-00 NUTNUT
-
18J42-W2352-00-00 FRONT LOWER ARM COMP (R.H)FRONT LOWER ARM COMP (R.H)
-
1990381-15032-00 ...BUSH, SOLID...BUSH, SOLID
-
20J10-23526-00-00 ...BUSH...BUSH
-
2193700-06M03-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2290381-15040-00 ...BUSH, SOLID...BUSH, SOLID
-
2393210-15566-00 ...O-RING...O-RING
-
2490201-067F9-00 ...WASHER, PLATE...WASHER, PLATE
-
25J17-23510-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
26J11-23522-00-00 ARM, KNUCKLE 2ARM, KNUCKLE 2
-
2790109-10643-00 BOLTBOLT
-
2890201-121F0-00 WASHER, PLATEWASHER, PLATE
-
2990201-105F2-00 WASHER, PLATEWASHER, PLATE
-
3090171-10035-00 NUT, CASTLENUT, CASTLE
-
3191490-25030-00 PIN. COTTERPIN. COTTER
-
3290214-16027-00 WASHER, CLAWWASHER, CLAW
-
3397313-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
3495303-08700-00 NUTNUT
-
35J10-23516-02-00 KING PIN, STEERING KNUCKLEKING PIN, STEERING KNUCKLE
-
3691401-30030-00 PIN, COTTERPIN, COTTER
-
3795712-12300-00 NUT, NYLONNUT, NYLON
-
3890105-10224-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3995601-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
40J17-W2355-00-00 ROD, TENSIONROD, TENSION
-
41J10-23583-01-00 ...BUSH...BUSH
-
4290105-08225-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4395601-08200-00 NUT, UNUT, U
-
4495812-12050-00 BOLT, FLANGEBOLT, FLANGE
-
4595701-12500-00 NUT, FLANGENUT, FLANGE
-
4690387-137F6-00 COLLARCOLLAR
-
4790102-12046-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4895601-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
49J46-23350-00-00 SHOCK ABSORBER ASSEMBLYSHOCK ABSORBER ASSEMBLY
-
5097022-10050-00 BOLT (83L)BOLT (83L)
-
5195612-10100-00 NUT, UNUT, U
-
52J17-W2511-00-00 HUB, FRONTHUB, FRONT
-
5390114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
54J17-25118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
5593306-00511-00 BEARINGBEARING
-
5693306-20437-00 BEARINGBEARING
-
5795301-14900-00 NUT, SLOTTEDNUT, SLOTTED
-
5890209-14219-00 WASHER, SPECIAL SHAPEWASHER, SPECIAL SHAPE
-
5991401-30030-00 PIN, COTTERPIN, COTTER
-
6090179-12262-00 NUTNUT
-
6191490-25030-00 PIN. COTTERPIN. COTTER
