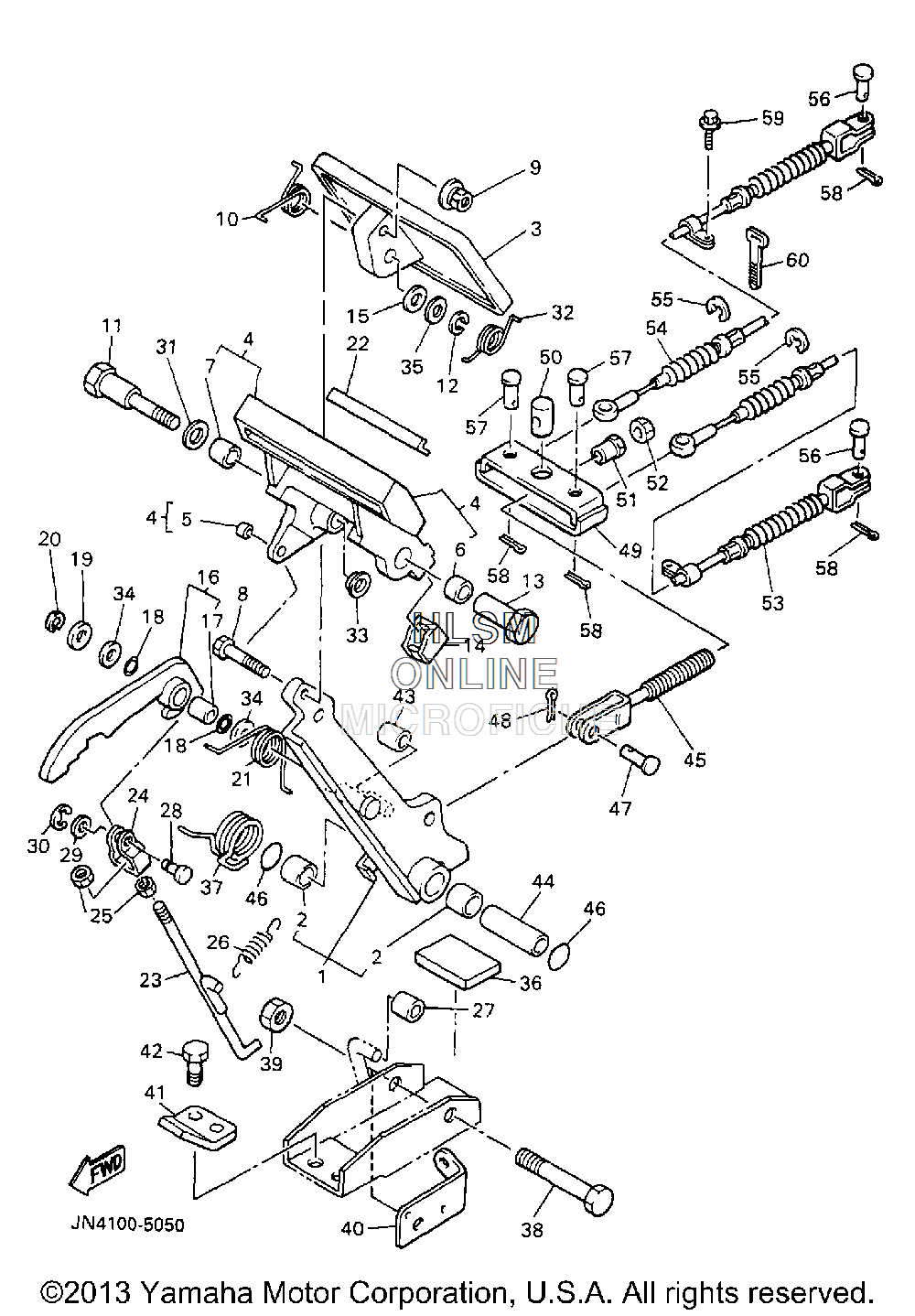

BRAKE 1 для Yamaha GOLF CAR ELECTRIC [G14EM] (JN4) - 1995 года выпуска
-
№АртикулНазвание
-
1J46-27250-03-00 BRAKE ARM COMP.BRAKE ARM COMP.
-
290384-14080-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
3J10-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
4J17-25670-01-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
590384-05163-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
690384-12164-00 ...BUSH, BIMETAL...BUSH, BIMETAL
-
790380-12051-00 ...BUSH, SOLID...BUSH, SOLID
-
890101-06555-00 BOLTBOLT
-
990179-07564-00 NUTNUT
-
1090508-23542-00 SPRING, TORSIONSPRING, TORSION
-
1190109-08669-00 BOLTBOLT
-
1292907-08100-00 WASHER, SPRINGWASHER, SPRING
-
1390179-08378-00 NUTNUT
-
14J17-25679-01-00 DAMPERDAMPER
-
1592907-08200-00 WASHERWASHER
-
16J17-W2561-02-00 SECTOR, PARKING BRAKESECTOR, PARKING BRAKE
-
1790384-10162-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
18J17-27221-00-00 SEAL, SHAFTSEAL, SHAFT
-
1992907-10600-00 WASHER, PLATEWASHER, PLATE
-
2099080-07600-00 CLIPCLIP
-
2190508-14548-00 SPRING, TORSIONSPRING, TORSION
-
22J17-25672-01-00 PAD, PARKING PEDALPAD, PARKING PEDAL
-
23J17-27231-03-00 ROD, BRAKEROD, BRAKE
-
24J17-27232-00-00 END, ROD 2END, ROD 2
-
2595307-06700-00 NUTNUT
-
2690506-12277-00 SPRING, TENSIONSPRING, TENSION
-
27J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
28J17-27228-00-00 PIN, JOINTPIN, JOINT
-
2992907-05600-00 WASHER, PLATEWASHER, PLATE
-
3099080-04600-00 CIRCLIPCIRCLIP
-
3190201-123F2-00 WASHER, PLAINWASHER, PLAIN
-
3290508-26557-00 SPRING, TORSIONSPRING, TORSION
-
3390380-12105-00 BUSH, SOLIDBUSH, SOLID
-
3490201-104G8-00 WASHER, PLATEWASHER, PLATE
-
35J55-27226-00-00 WASHER, LINKWASHER, LINK
-
36JN3-F7245-00-00 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
3790508-405A9-00 SPRING, TORSIONSPRING, TORSION
-
3890101-10447-00 BOLTBOLT
-
3995617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
40J55-2252M-00-00 BRACKET, 3BRACKET, 3
-
41J17-27246-00-00 NAIL, BRAKENAIL, BRAKE
-
4295807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
43J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
4490387-107F8-00 COLLARCOLLAR
-
45JF2-25685-00-00 RODROD
-
4693210-132A8-00 O-RINGO-RING
-
4791701-10022-00 PIN, CLEVISPIN, CLEVIS
-
4891490-30020-00 PIN. COTTERPIN. COTTER
-
49JF2-25681-00-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
5090249-14129-00 PINPIN
-
5190179-08261-00 NUTNUT
-
5295307-08700-00 NUTNUT
-
53JF2-F6341-10-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
54JF2-F6351-10-00 WIRE, BRAKEWIRE, BRAKE
-
5599001-09600-00 CIRCLIPCIRCLIP
-
5691701-08018-00 PIN, CLEVISPIN, CLEVIS
-
5791701-08026-00 PIN, CLEVISPIN, CLEVIS
-
5891490-25020-00 PIN. COTTERPIN. COTTER
-
5995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
60JF2-82591-00-00 BANDBAND
