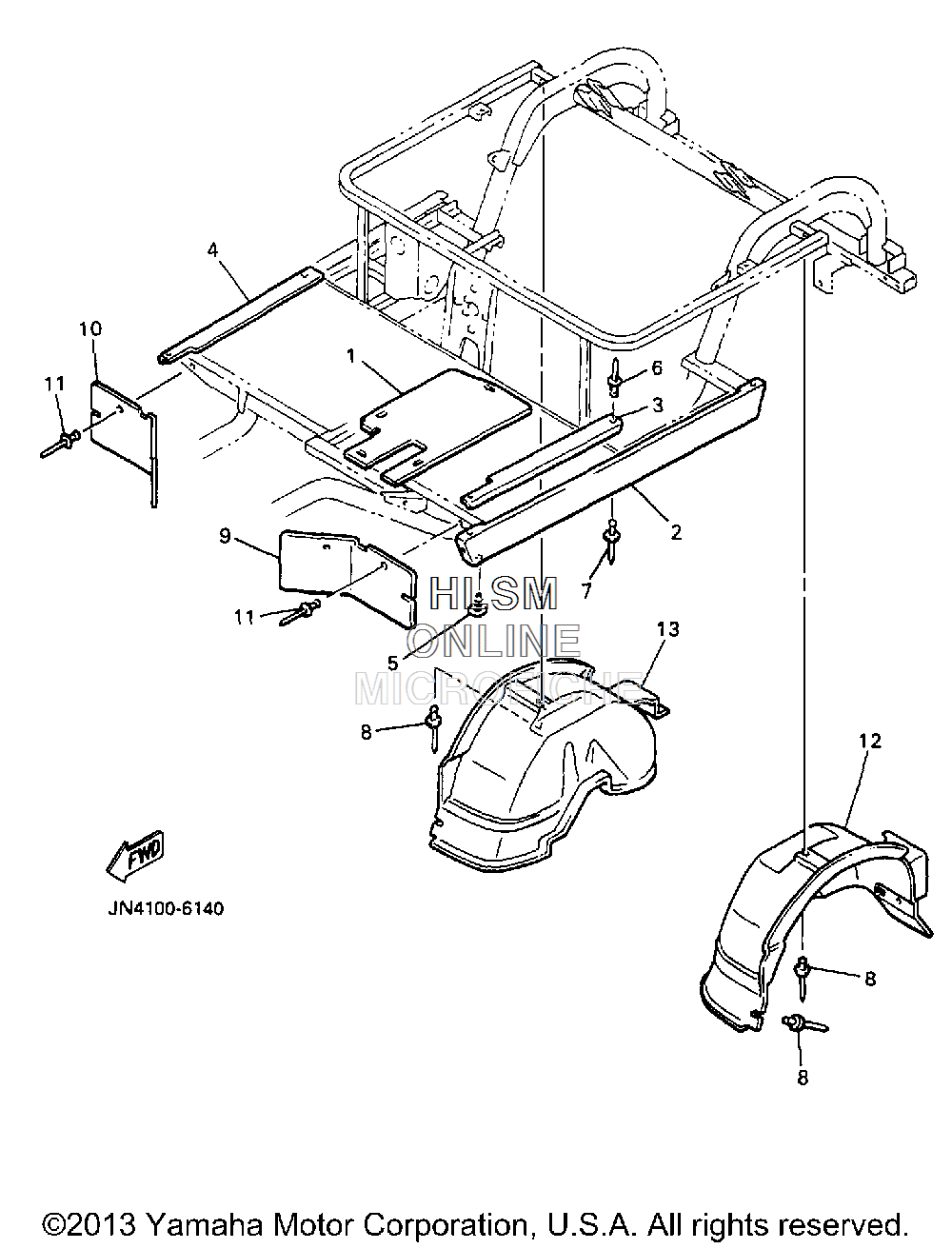

BODY FITTING для Yamaha GOLF CAR ELECTRIC [G14EP] (JN4) - 1996 года выпуска
-
№АртикулНазвание
-
1JF2-K8271-00-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
2JF2-K818A-00-00 PROTECTOR, SIDEPROTECTOR, SIDE
-
3JF2-K8215-10-00 PLATE, SIDE TRIM 1PLATE, SIDE TRIM 1
-
4JF2-K821F-10-00 PLATE, SIDE TRIM 2PLATE, SIDE TRIM 2
-
590338-05829-00 PLUGPLUG
-
690267-48154-00 RIVET, BLINDRIVET, BLIND
-
790267-48831-00 RIVET, BLINDRIVET, BLIND
-
890267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
9JF2-K8187-00-00 FLAP, FRONT FENDER (L.H.)FLAP, FRONT FENDER (L.H.)
-
10JF2-K8189-00-00 FLAP, FRONT FENDER (R.H.) (JN4-200101 AND UP)FLAP, FRONT FENDER (R.H.) (JN4-200101 AND UP)
-
1190267-48831-00 RIVET, BLINDRIVET, BLIND
-
12JF2-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
13JF2-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
