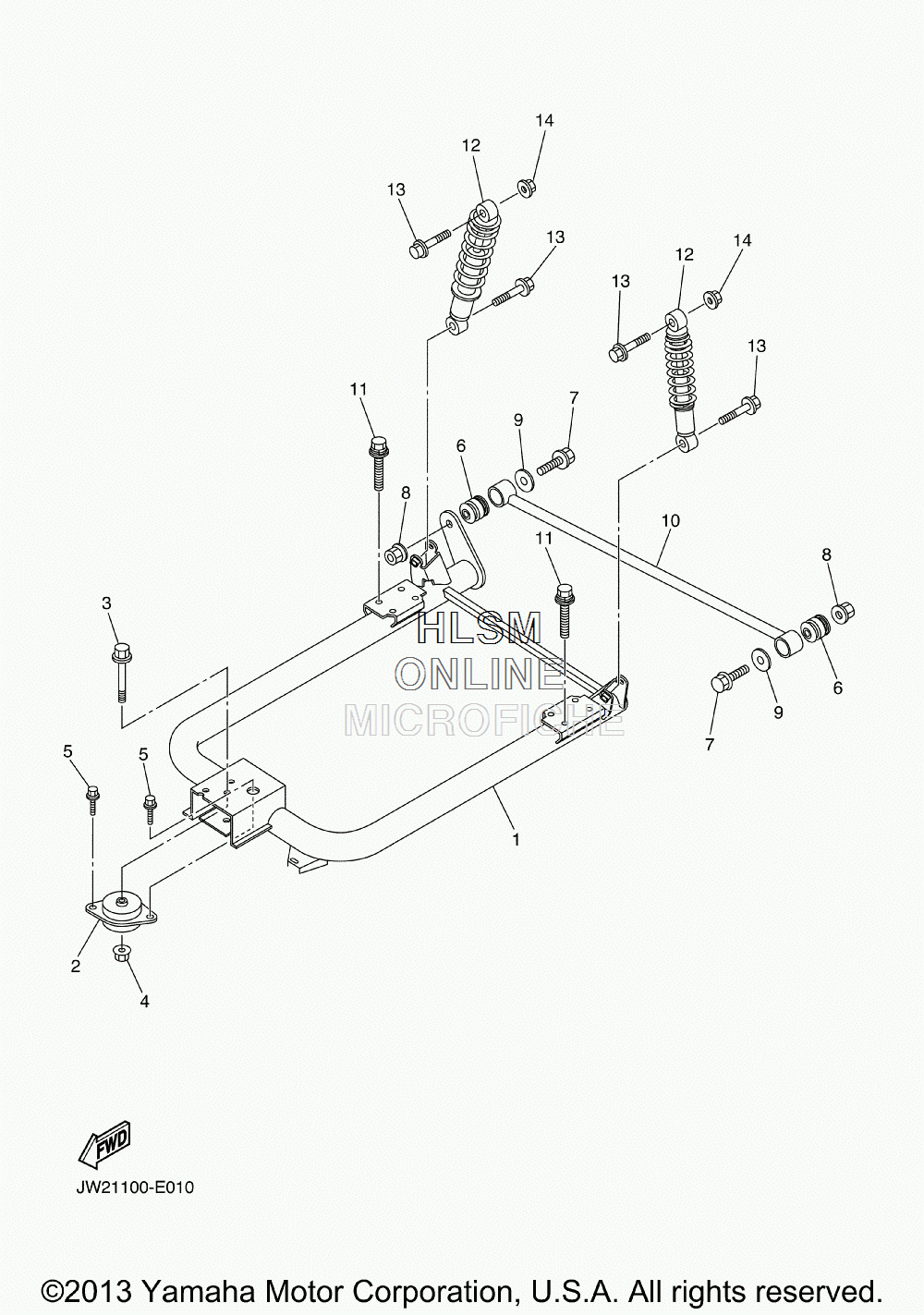

SUSPENSION - REAR ARM для Yamaha GOLF CAR ELECTRIC [DRIVE YDRE] (JW21) - 2007 года выпуска
-
№АртикулНазвание
-
1JW2-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2JN6-F2123-10-00 BUSH 1BUSH 1
-
390105-13864-00 BOLT, FLANGEBOLT, FLANGE
-
490179-13878-00 NUTNUT
-
5JW1-F1531-00-00 BOLTBOLT
-
6JN6-F2124-10-00 BUSH 2BUSH 2
-
795817-12065-00 BOLT, FLANGEBOLT, FLANGE
-
895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-128S4-00 WASHER, PLATEWASHER, PLATE
-
10JW1-F217G-00-00 ROD, CONNECTING 2ROD, CONNECTING 2
-
119751P-10650-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12JW1-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1395817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
149560P-10200-00 NUT, FLANGENUT, FLANGE
