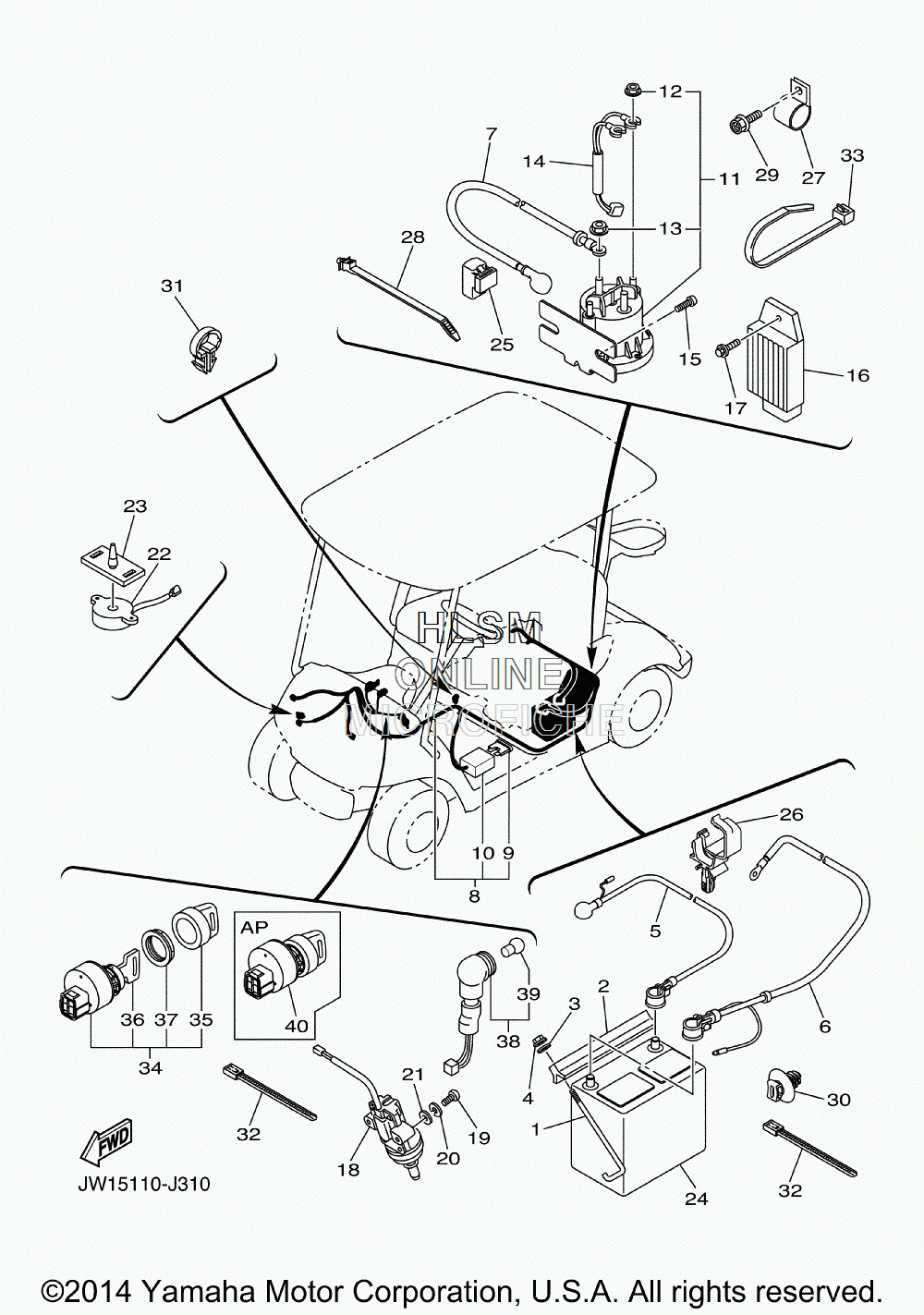

ELECTRICAL 2 для Yamaha GOLF CAR GAS [DRIVE YDRA] (JW11) - 2008 года выпуска
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392907-06200-00 WASHERWASHER
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
5JW1-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW1-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW1-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JW1-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
942X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
10JR1-H2150-00-00 ...FUSE HOLDER ASSY...FUSE HOLDER ASSY
-
11JR3-H1950-00-00 RELAY ASSYRELAY ASSY
-
1290179-05886-00 ...NUT...NUT
-
1390179-08887-00 ...NUT...NUT
-
14JN6-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
1590163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
16JF2-81910-01-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1790105-06876-00 BOLT, FLANGEBOLT, FLANGE
-
18JF7-82817-20-00 SWITCHSWITCH
-
1998507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2190907-05600-00 WASHER, PLATEWASHER, PLATE
-
22JR1-H3383-01-00 BUZZERBUZZER
-
23JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
24JG5-H2110-01-00 BATTERY ASSY (GC-24, 12V) (CALIF ONLY) (OBTAIN LOCALLY)BATTERY ASSY (GC-24, 12V) (CALIF ONLY) (OBTAIN LOCALLY)
-
254U8-81950-02-00 RELAY ASSY (4U8-02)RELAY ASSY (4U8-02)
-
2690464-20237-00 CLAMPCLAMP
-
2790461-14108-00 CLAMPCLAMP
-
2890464-09823-00 CLAMPCLAMP
-
2990105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3090464-20005-00 CLAMPCLAMP
-
3190464-19815-00 CLAMPCLAMP
-
3290464-40825-00 CLAMPCLAMP
-
3390464-76800-00 CLAMPCLAMP
-
34JW1-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
355UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
36JU2-H2511-00-00 ...KEY, MAIN SWITCH (COMMON KEY SWITCH)...KEY, MAIN SWITCH (COMMON KEY SWITCH)
-
37JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
38JN6-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
39123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
40JU2-H2510-20-00 MAIN SWITCH ASSY (MULTI-KEY SWITCH)MAIN SWITCH ASSY (MULTI-KEY SWITCH)
