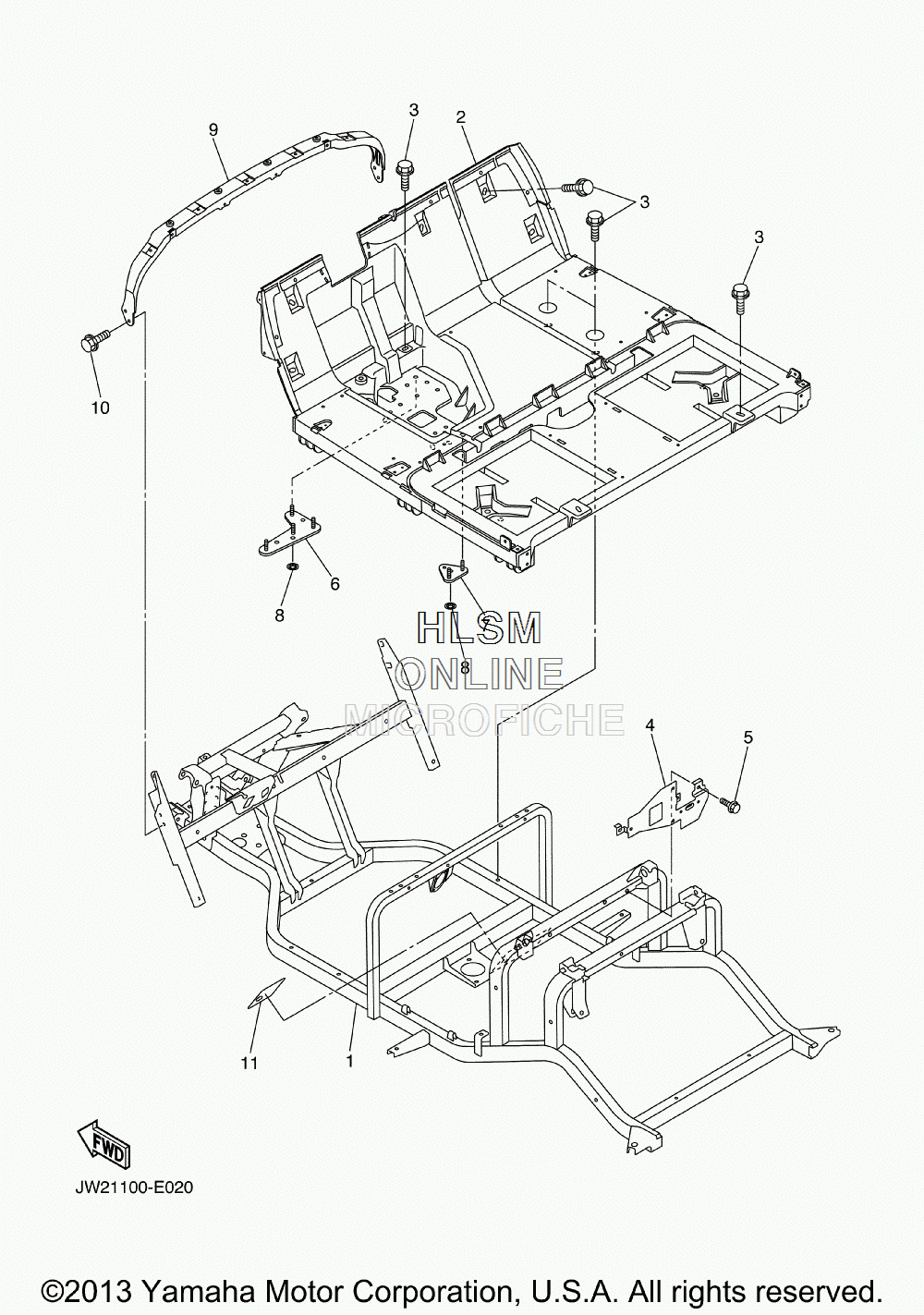

FRAME для Yamaha GOLF CAR ELECTRIC [DRIVE YDRE2] (JW22) - 2009 года выпуска
-
№АртикулНазвание
-
1JW2-F2501-00-00 FRAME COMP. (UP TO JW2-209708)FRAME COMP. (UP TO JW2-209708)
-
1JW2-F2501-01-00 FRAME (JW2-209709 AND UP)FRAME (JW2-209709 AND UP)
-
2JW2-F7411-00-00 FOOTREST 1FOOTREST 1
-
3JW1-F1738-00-00 BOLTBOLT
-
4JW2-F252M-00-00 BRACKET, 3BRACKET, 3
-
590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
6JW1-F2545-01-00 SUPPORT, PEDAL BRACKETSUPPORT, PEDAL BRACKET
-
7JW1-F2588-01-00 BRACKET, BRAKE PEDALBRACKET, BRAKE PEDAL
-
890183-08800-00 NUT, SPRINGNUT, SPRING
-
9JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
11JR1-K8298-11-00 PLATE, CAUTION 2 (E,F)PLATE, CAUTION 2 (E,F)
