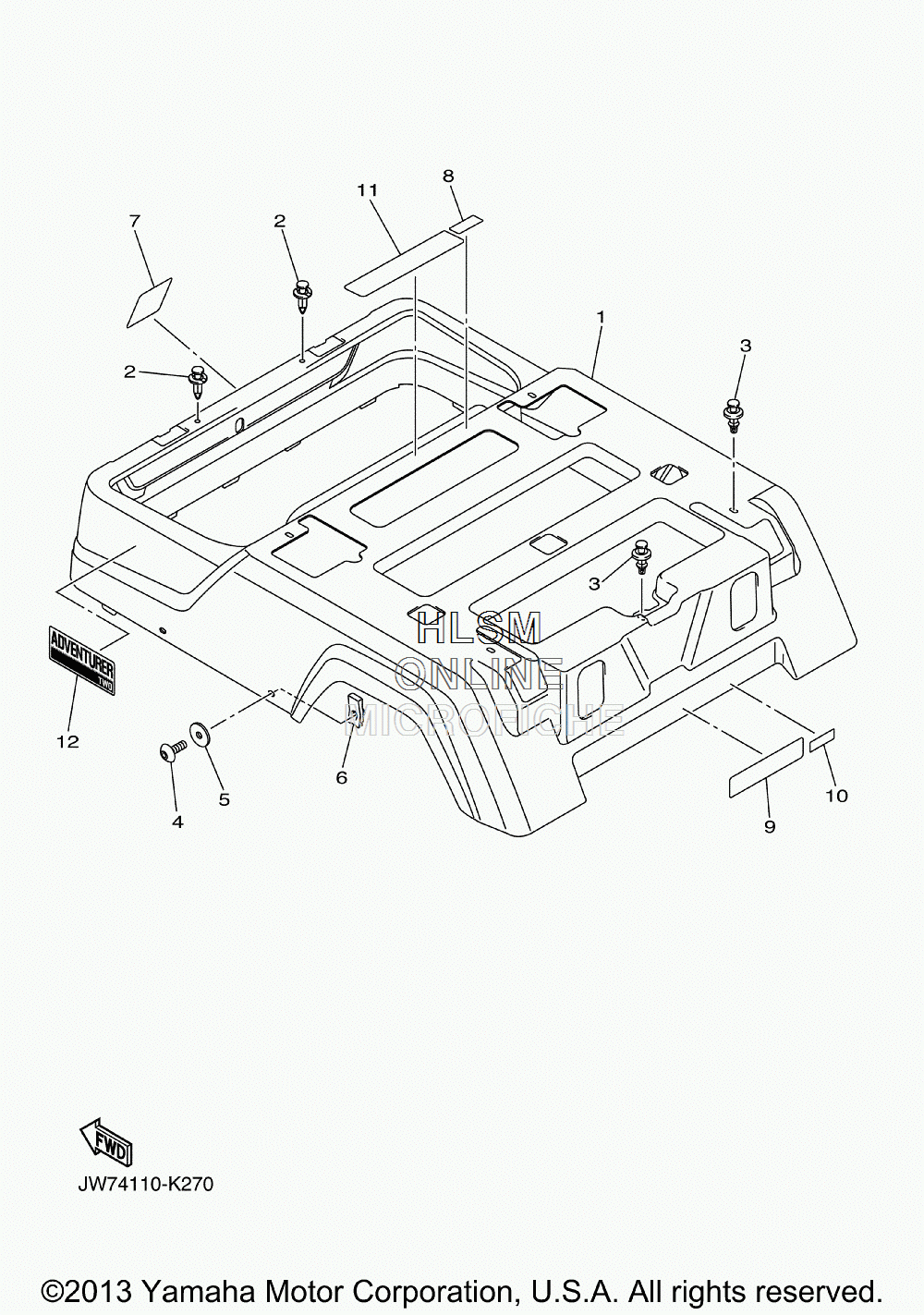

BODY 2 для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска
-
№АртикулНазвание
-
1JW7-K8142-00-00 PANEL, REAR BODYPANEL, REAR BODY
-
290269-08813-00 RIVETRIVET
-
3JW6-K7449-00-00 RIVET 1RIVET 1
-
490111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
590201-06863-00 WASHER, PLATEWASHER, PLATE
-
690183-06811-00 NUT, SPRINGNUT, SPRING
-
7JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
8JN6-H2377-00-00 LABELLABEL
-
9JW7-F1696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
10JW6-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
-
11JW6-K8297-00-00 PLATE, CAUTION 1PLATE, CAUTION 1
-
12JW7-F1781-00-00 EMBLEM 1 (OPT) (ADVENTURER TWO)EMBLEM 1 (OPT) (ADVENTURER TWO)
