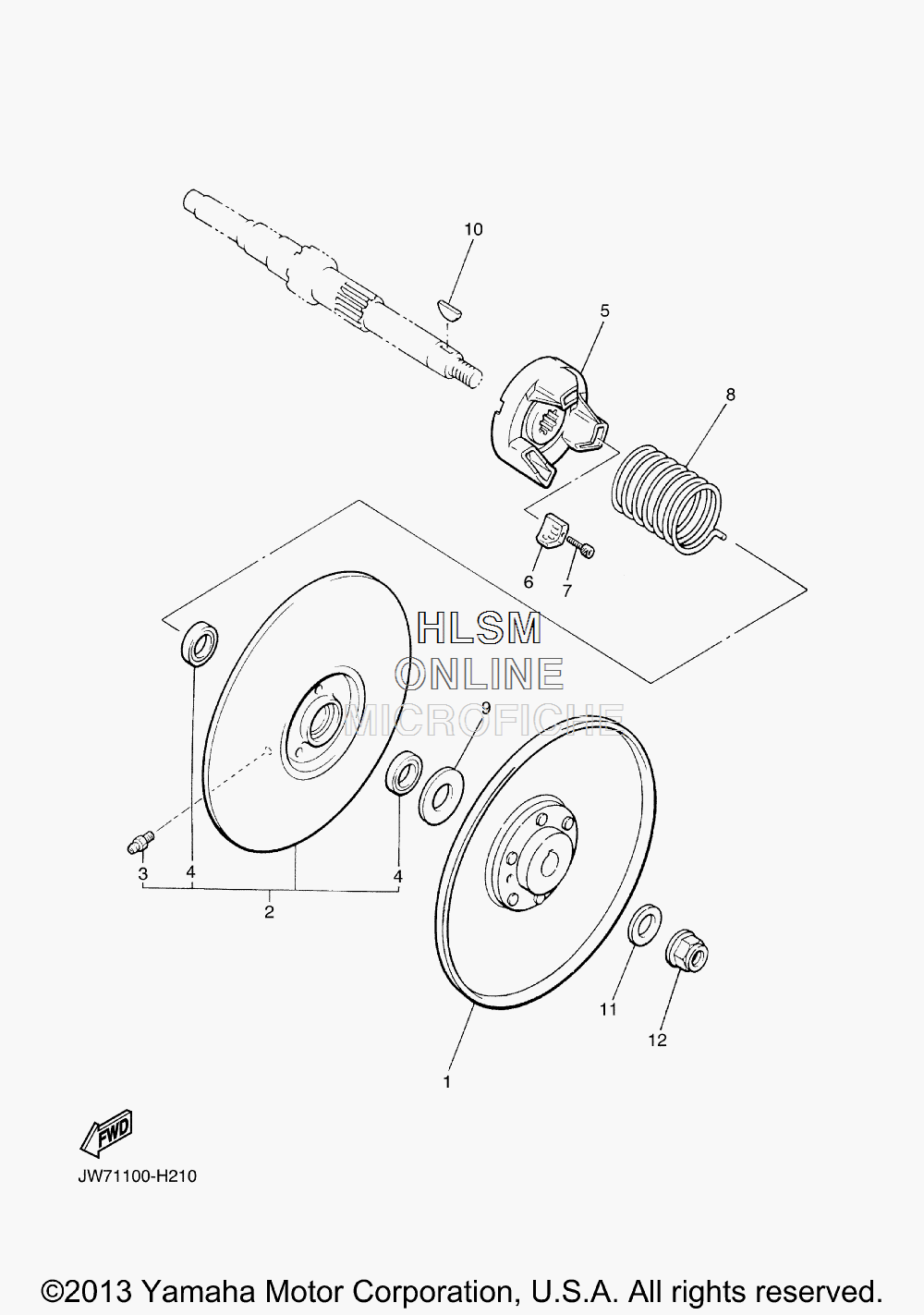

SECONDARY SHEAVE для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска
-
№АртикулНазвание
-
1J38-46260-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
2JR7-46270-00-00 SECONDARY SLIDING SHEAVE COMP.SECONDARY SLIDING SHEAVE COMP.
-
393700-06004-00 ......NIPPLE, GREASE......NIPPLE, GREASE
-
493109-20069-00 ......OIL SEAL......OIL SEAL
-
5JH2-46284-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
6JF7-17688-00-00 SHOE, RAMPSHOE, RAMP
-
791317-04025-00 BOLTBOLT
-
890508-45679-00 SPRING, TORSIONSPRING, TORSION
-
990202-20130-00 WASHER, PLATEWASHER, PLATE
-
1090280-05022-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190201-12588-00 WASHER, PLATEWASHER, PLATE
-
1295602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
