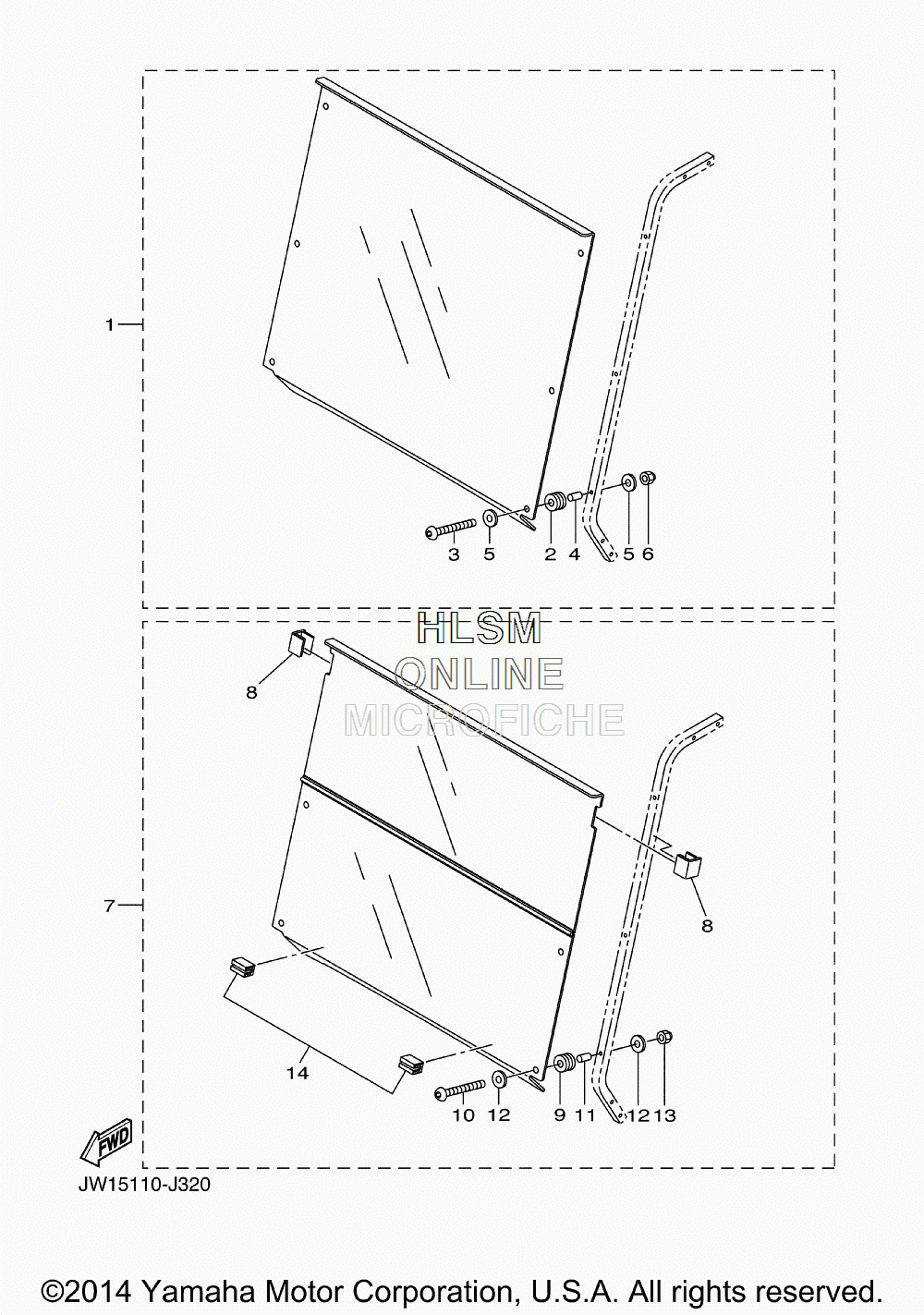

ALTERNATE FOR WINDSHIELD для Yamaha GOLF CAR GAS [DRIVE YDRA3] (JW15) - 2010 года выпуска

№

Артикул

Название
1

JW1-K7200-01-00 WINDSHIELD ASSY, SOLID (CLEAR) (OPT)

WINDSHIELD ASSY, SOLID (CLEAR) (OPT)

77 330 ₽
1

JW1-K7200-11-00 WINDSHIELD ASSY, SOLID(SMOKE) (OPT)

WINDSHIELD ASSY, SOLID(SMOKE) (OPT)

75 440 ₽
2

JW1-K7237-01-00 ...GROMMET

...GROMMET

0 ₽
3

JW1-K7212-00-00 ...BOLT (L: 45MM) (OPT)

...BOLT (L: 45MM) (OPT)

690 ₽
4

JW1-K7115-00-00 ...COLLAR

...COLLAR

510 ₽
5

90201-068G7-00 ...WASHER, PLATE

...WASHER, PLATE

290 ₽
6

JW1-K7217-00-00 ...NUT, WIND SHIELD

...NUT, WIND SHIELD

570 ₽
7

JW1-K7200-31-00 WINDSHIELD ASSY, HINGED(SMOKE) (OPT)

WINDSHIELD ASSY, HINGED(SMOKE) (OPT)

83 000 ₽
7

JW1-K7200-21-00 WINDSHIELD ASSY, HINGED(CLEAR) (OPT)

WINDSHIELD ASSY, HINGED(CLEAR) (OPT)

0 ₽
8

JW1-K7173-00-00 ...LEVER, LATCH 1

...LEVER, LATCH 1

4 090 ₽
9

JW1-K7237-01-00 ...GROMMET

...GROMMET

0 ₽
10

JW1-K7212-00-00 ...BOLT (L: 45MM) (OPT)

...BOLT (L: 45MM) (OPT)

690 ₽
11

JW1-K7115-00-00 ...COLLAR

...COLLAR

510 ₽
12

90201-068G7-00 ...WASHER, PLATE

...WASHER, PLATE

290 ₽
13

JW1-K7217-00-00 ...NUT, WIND SHIELD

...NUT, WIND SHIELD

570 ₽
14

GCA-JW124-00-00 ...KIT, BOTTOM RETAINER (INCLUDES GLUE)

...KIT, BOTTOM RETAINER (INCLUDES GLUE)

0 ₽
