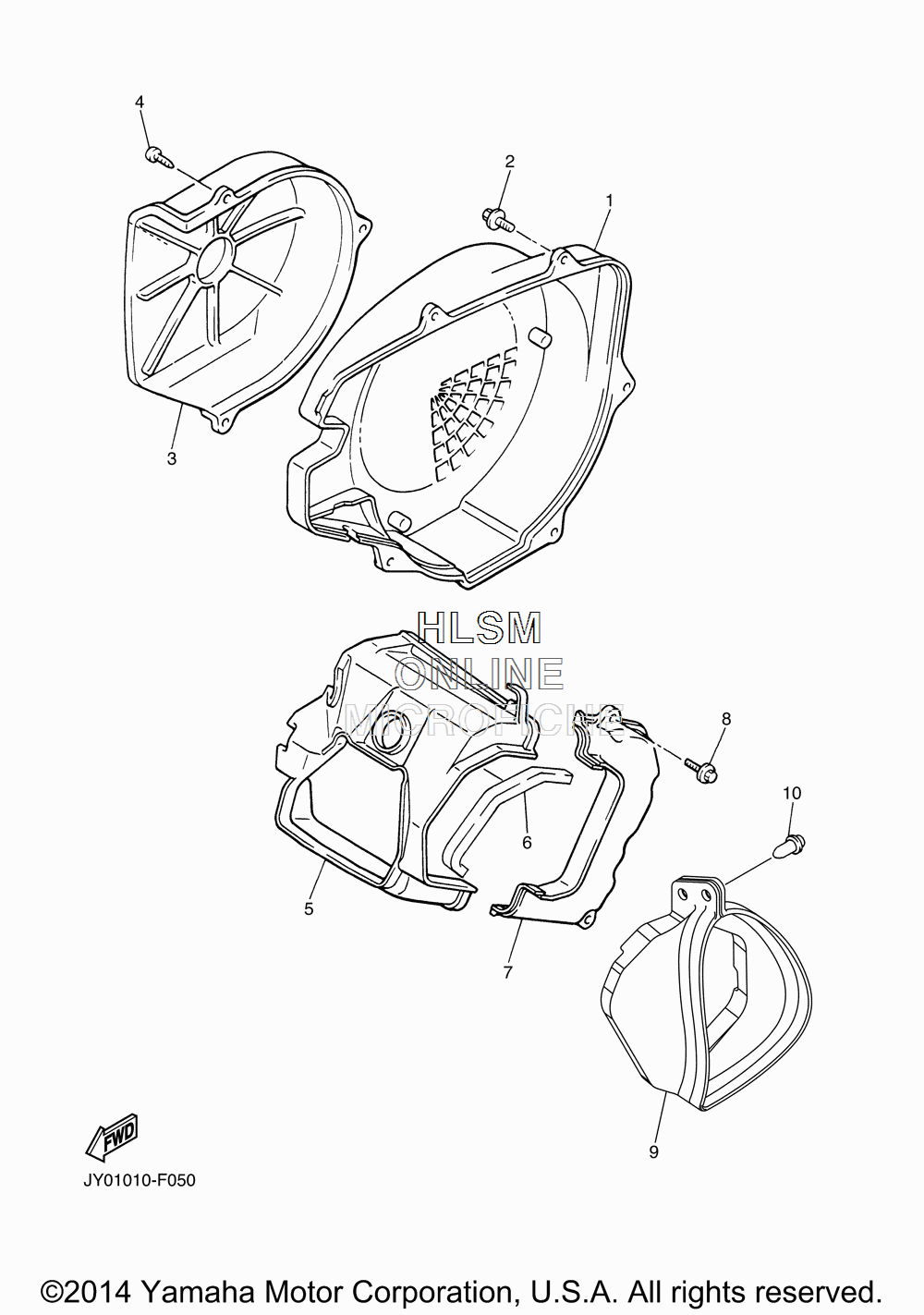

AIR SHROUD W/ FAN для Yamaha GOLF CAR GAS [DRIVE YDRA3P] (JW13) - 2010 года выпуска
-
№АртикулНазвание
-
1JN6-12621-02-00 CASE, FANCASE, FAN
-
295802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3JN6-12616-00-00 COVER, FAN CASECOVER, FAN CASE
-
497702-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
5JN6-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
6JR7-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
7JN6-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
895802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
9JW1-E2691-00-00 DUCT 1DUCT 1
-
1090269-08813-00 RIVETRIVET
