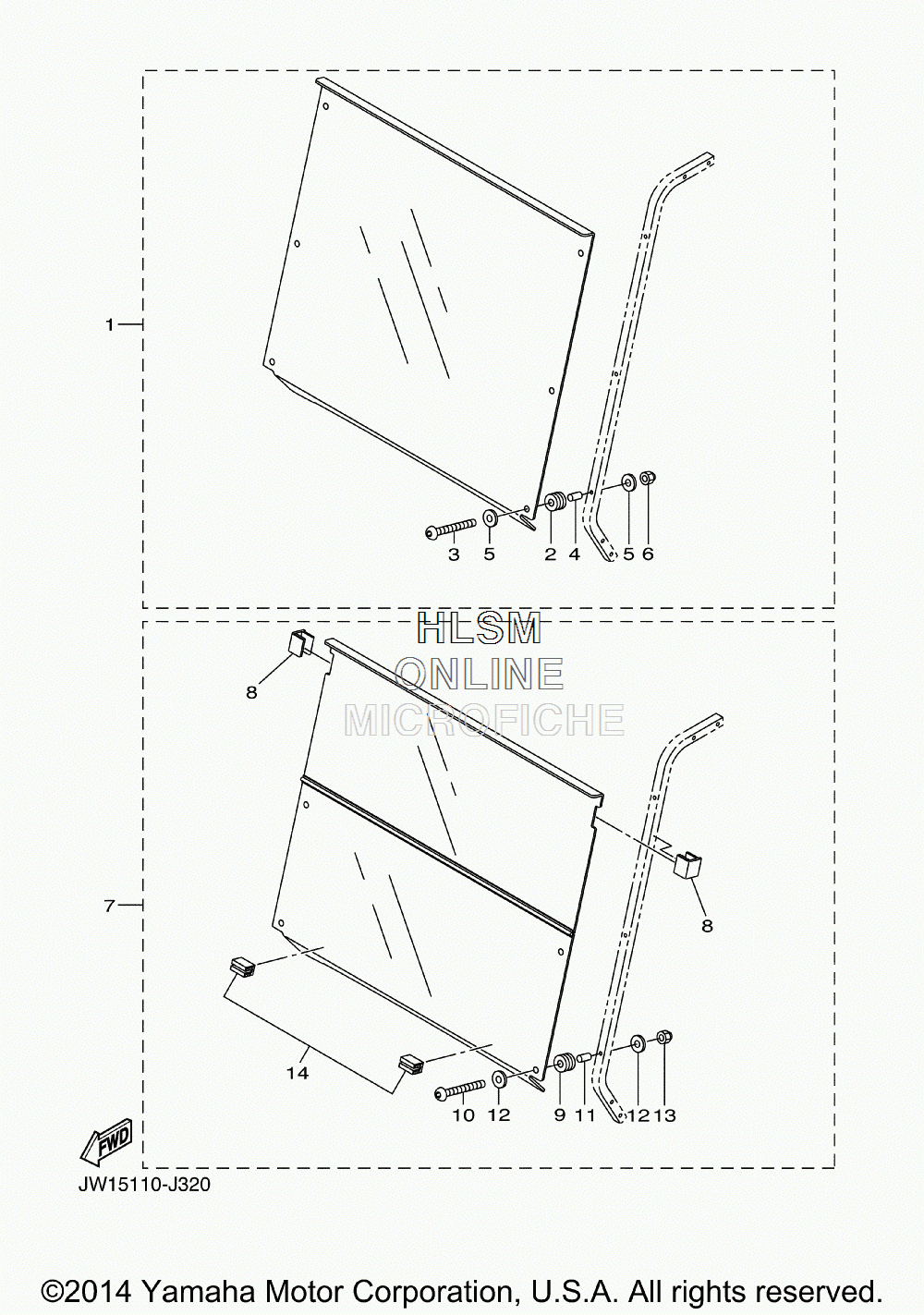

ALTERNATE FOR WINDSHIELD для Yamaha GOLF CAR GAS [DRIVE YDRA3PTV] (JC01) - 2010 года выпуска
-
№АртикулНазвание
-
1JW1-K7200-01-00 WINDSHIELD ASSY, SOLID (CLEAR) (OPT)WINDSHIELD ASSY, SOLID (CLEAR) (OPT)
-
1JW1-K7200-11-00 WINDSHIELD ASSY, SOLID(SMOKE) (OPT)WINDSHIELD ASSY, SOLID(SMOKE) (OPT)
-
2JW1-K7237-01-00 ...GROMMET...GROMMET
-
3JW1-K7212-00-00 ...BOLT (L: 45MM) (OPT)...BOLT (L: 45MM) (OPT)
-
4JW1-K7115-00-00 ...COLLAR...COLLAR
-
590201-068G7-00 ...WASHER, PLATE...WASHER, PLATE
-
6JW1-K7217-00-00 ...NUT, WIND SHIELD...NUT, WIND SHIELD
-
7JW1-K7200-31-00 WINDSHIELD ASSY, HINGED(SMOKE) (OPT)WINDSHIELD ASSY, HINGED(SMOKE) (OPT)
-
7JW1-K7200-21-00 WINDSHIELD ASSY, HINGED(CLEAR) (OPT)WINDSHIELD ASSY, HINGED(CLEAR) (OPT)
-
8JW1-K7173-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
9JW1-K7237-01-00 ...GROMMET...GROMMET
-
10JW1-K7212-00-00 ...BOLT (L: 45MM) (OPT)...BOLT (L: 45MM) (OPT)
-
11JW1-K7115-00-00 ...COLLAR...COLLAR
-
1290201-068G7-00 ...WASHER, PLATE...WASHER, PLATE
-
13JW1-K7217-00-00 ...NUT, WIND SHIELD...NUT, WIND SHIELD
-
14GCA-JW124-00-00 ...KIT, BOTTOM RETAINER (INCLUDES GLUE)...KIT, BOTTOM RETAINER (INCLUDES GLUE)
