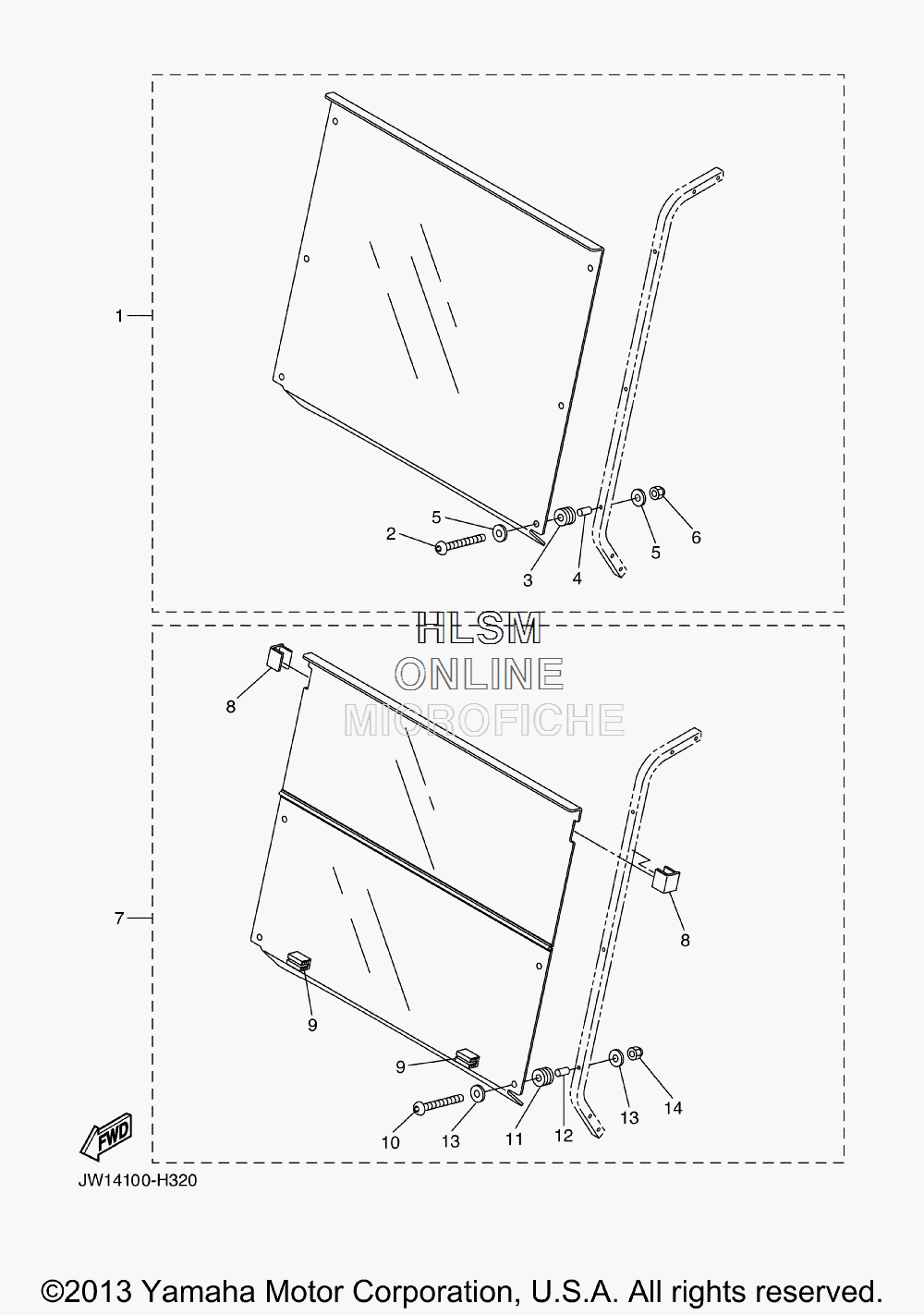

WINDSHIELD (ALTERNATE) для Yamaha GOLF CAR [YTF1P] (JW62) - 2010 года выпуска
-
№АртикулНазвание
-
1JW1-K7200-01-00 WINDSHIELD ASSY, SOLID (CLEAR)WINDSHIELD ASSY, SOLID (CLEAR)
-
1JW1-K7200-11-00 WINDSHIELD ASSY, SOLID (SMOKE)WINDSHIELD ASSY, SOLID (SMOKE)
-
2JW1-K7212-00-00 ...BOLT (L: 45MM)...BOLT (L: 45MM)
-
2JW1-K7481-00-00 ...BOLT (L: 50MM)...BOLT (L: 50MM)
-
3JW1-K7237-01-00 ...GROMMET...GROMMET
-
4JW1-K7115-00-00 ...COLLAR...COLLAR
-
590201-068G7-00 ...WASHER, PLATE...WASHER, PLATE
-
6JW1-K7217-00-00 ...NUT, WIND SHIELD...NUT, WIND SHIELD
-
7JW1-K7200-31-00 WINDSHIELD ASSY, HINGED (SMOKE)WINDSHIELD ASSY, HINGED (SMOKE)
-
7JW1-K7200-21-00 WINDSHIELD ASSY, HINGED (CLEAR)WINDSHIELD ASSY, HINGED (CLEAR)
-
8JW1-K7173-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
9JW1-K7222-00-00 ...BRACKET, WINDSHIELD (RIGHT HAND)...BRACKET, WINDSHIELD (RIGHT HAND)
-
10JW1-K7481-00-00 ...BOLT (L: 50MM)...BOLT (L: 50MM)
-
10JW1-K7212-00-00 ...BOLT (L: 45MM)...BOLT (L: 45MM)
-
11JW1-K7237-01-00 ...GROMMET...GROMMET
-
12JW1-K7115-00-00 ...COLLAR...COLLAR
-
1390201-068G7-00 ...WASHER, PLATE...WASHER, PLATE
-
14JW1-K7217-00-00 ...NUT, WIND SHIELD...NUT, WIND SHIELD
