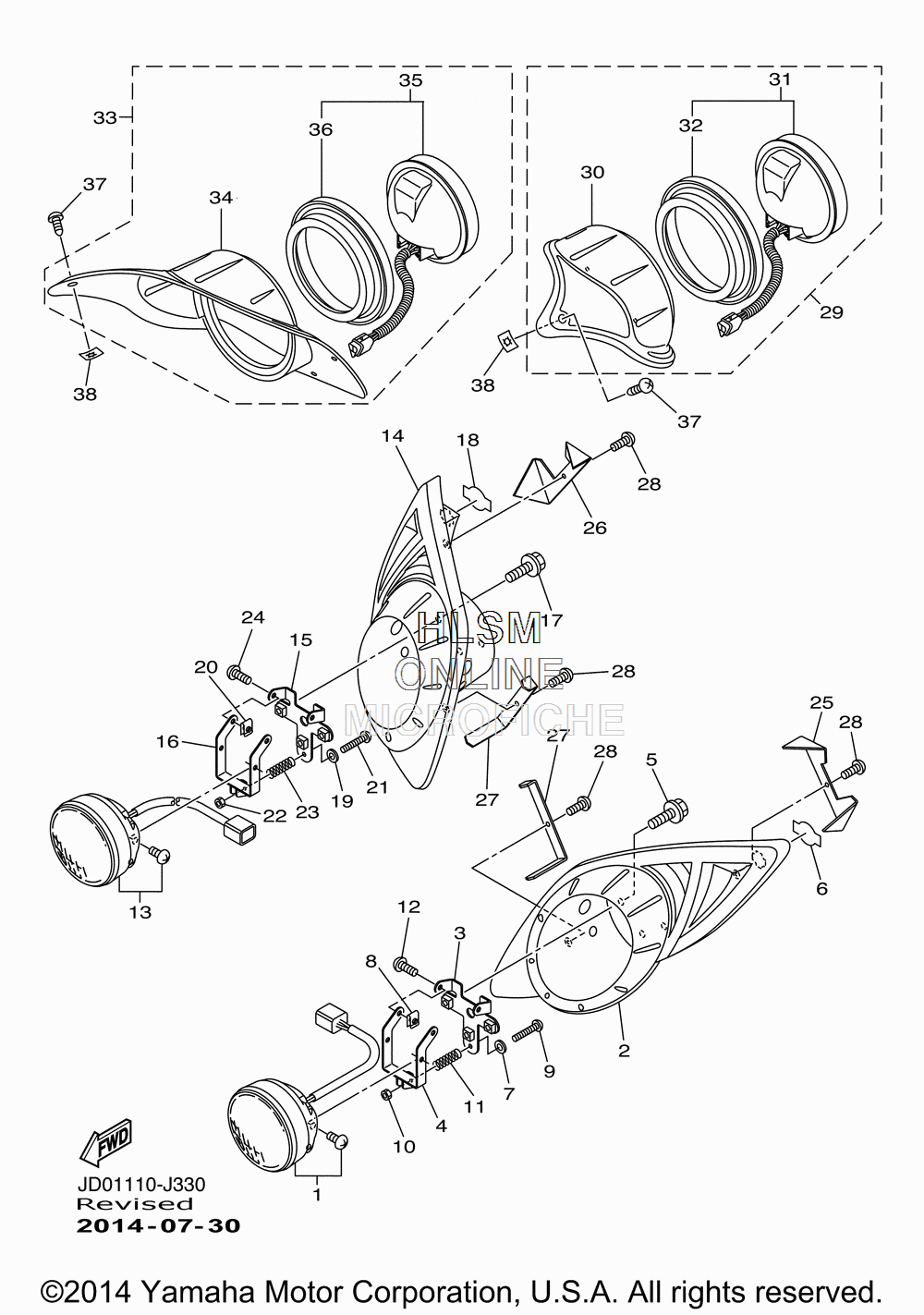

HEADLIGHT / TAIL LIGHT для Yamaha GOLF CAR ELECTRIC [DRIVE YDREXPTV] (JC12) - 2011 года выпуска
-
№АртикулНазвание
-
1JW6-H4300-02-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
2JW6-H4111-00-PC BODY, HEADLIGHTBODY, HEADLIGHT
-
3JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
4JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
590119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
790201-03008-00 WASHER, PLATEWASHER, PLATE
-
890183-050A6-00 NUT, SPRINGNUT, SPRING
-
9JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
102GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
112GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
1298902-05016-00 SCREW, BINDSCREW, BIND
-
13JW6-H4300-02-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
14JW6-H4311-00-PC BODY, HEADLIGHTBODY, HEADLIGHT
-
15JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
16JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
1790119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
18JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
1990201-03008-00 WASHER, PLATEWASHER, PLATE
-
2090183-050A6-00 NUT, SPRINGNUT, SPRING
-
21JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
222GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
232GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
2498902-05016-00 SCREW, BINDSCREW, BIND
-
25JW6-H431R-00-00 STAY, SETTINGSTAY, SETTING
-
26JW6-H431T-00-00 METAL, ADJUSTINGMETAL, ADJUSTING
-
27JW6-H4119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
2890164-04800-00 SCREW, TAPPINGSCREW, TAPPING
-
29JC0-H4710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
30JW1-H431U-10-00 ...HOLDER...HOLDER
-
31JC0-H4700-00-00 ...TAILLIGHT ASSY (BULB NOT REPLACEABLE)...TAILLIGHT ASSY (BULB NOT REPLACEABLE)
-
32JC0-H4718-00-00 ......GROMMET......GROMMET
-
33JC0-H4730-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
34JW1-H4387-10-00 ...HOLDER...HOLDER
-
35JC0-H4700-00-00 ...TAILLIGHT ASSY (BULB NOT REPLACEABLE)...TAILLIGHT ASSY (BULB NOT REPLACEABLE)
-
36JC0-H4718-00-00 ......GROMMET......GROMMET
-
37JC0-H4192-00-00 SCREW, SPECIALSCREW, SPECIAL
-
38JC0-H4548-00-00 NUT, SPECIALNUT, SPECIAL
