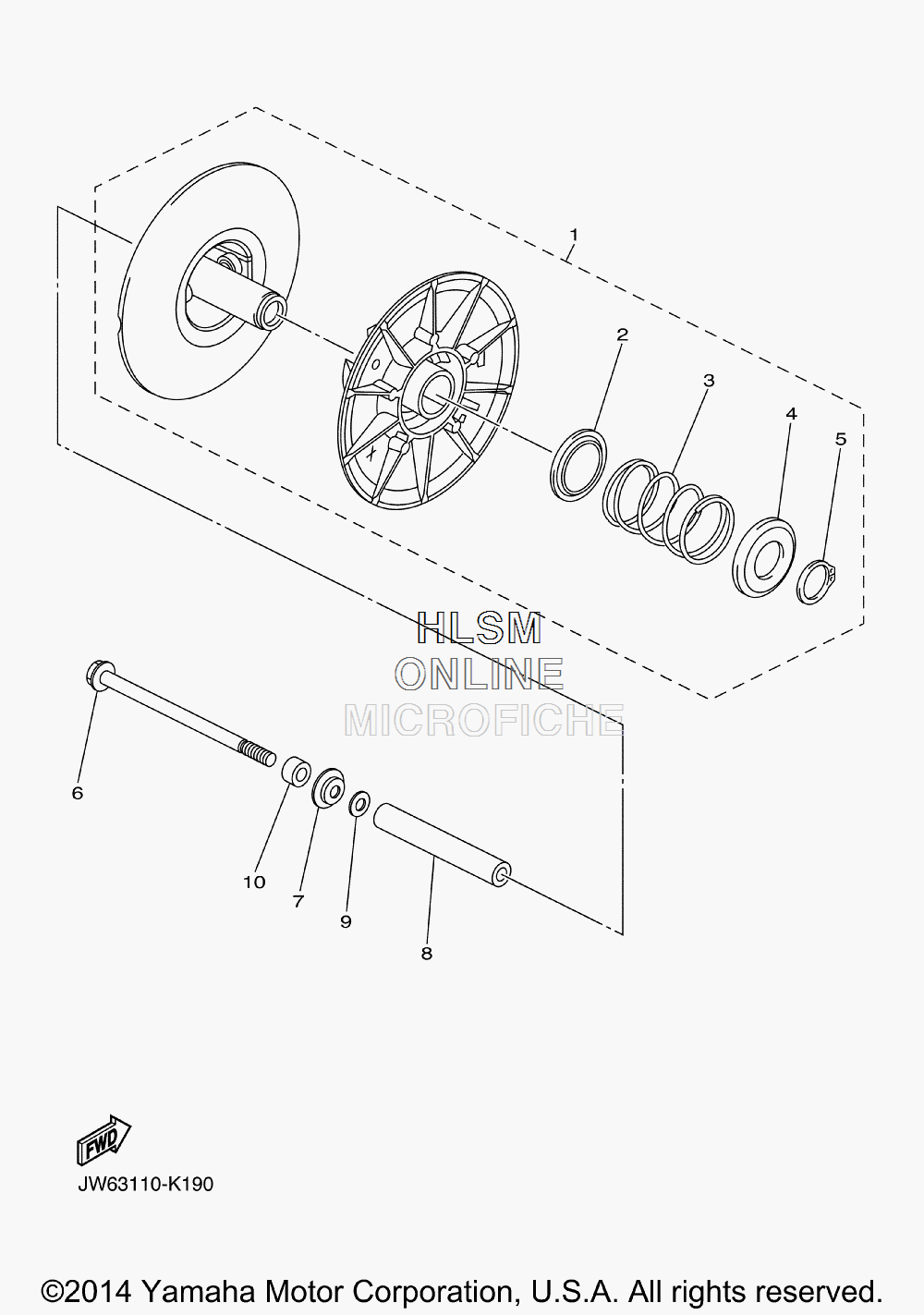

SECONDARY SHEAVE для Yamaha GOLF CAR GAS [DRIVE YDRAXPTV] (JC02) - 2011 года выпуска
-
№АртикулНазвание
-
1JW1-G6202-02-00 SECONDARY SHEAVE ASSYSECONDARY SHEAVE ASSY
-
2JW1-G6244-00-00 ...SEAT, SPRING...SEAT, SPRING
-
3JW1-G6276-00-00 ...SPRING, CLUTCH 2...SPRING, CLUTCH 2
-
4JW1-G6280-00-00 ...SECONDARY SPRING SEAT COMP....SECONDARY SPRING SEAT COMP.
-
5JW1-F5415-00-00 ...CIRCLIP...CIRCLIP
-
690105-08007-00 BOLT, FLANGEBOLT, FLANGE
-
790209-08018-00 WASHERWASHER
-
8JW1-G2758-01-00 COLLARCOLLAR
-
992902-08200-00 WASHERWASHER
-
10JW1-G2834-00-00 COLLARCOLLAR
