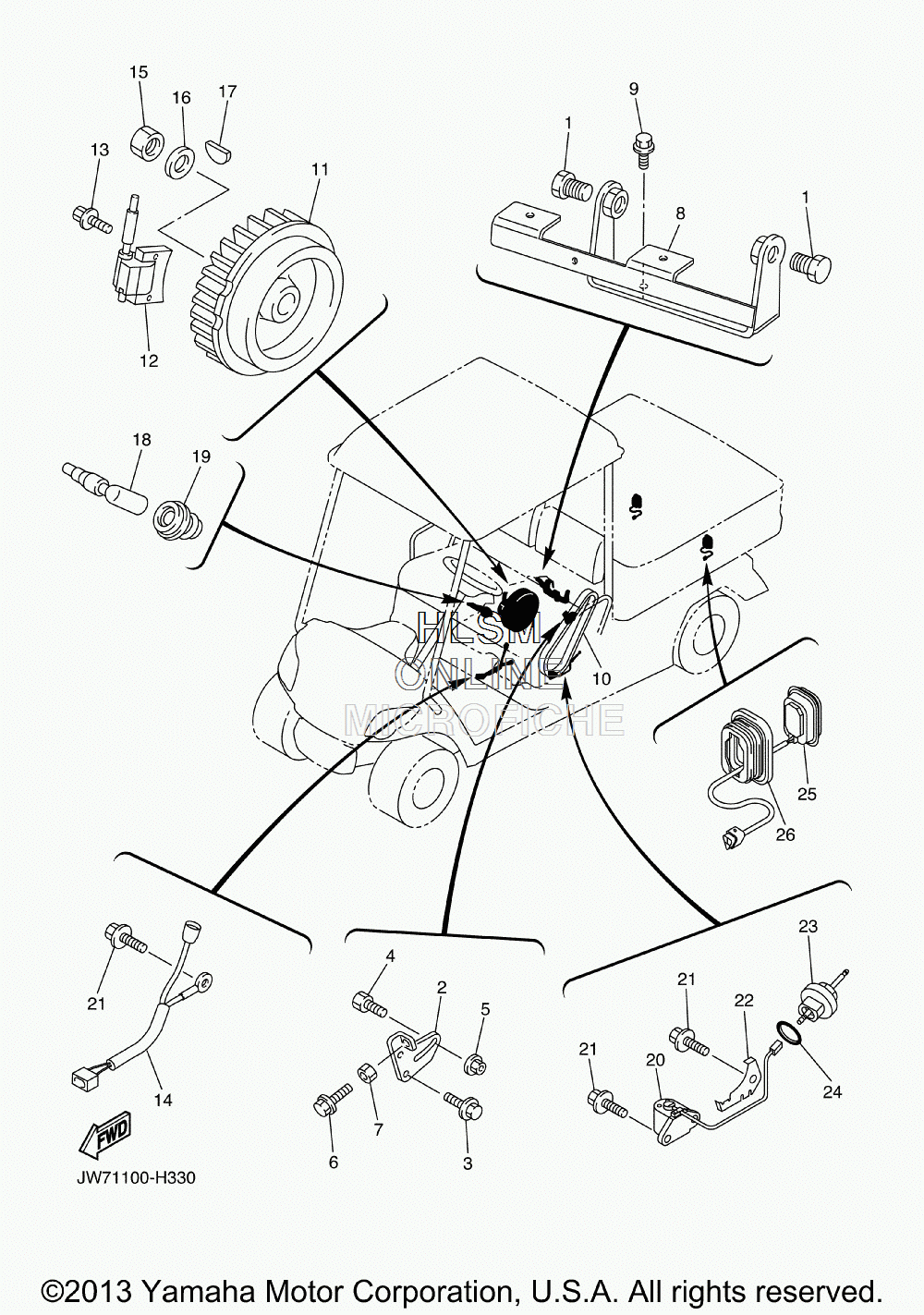

ELECTRICAL для Yamaha GOLF CAR [YTF2X] (JW73) - 2011 года выпуска
-
№АртикулНазвание
-
195812-12030-00 BOLT, FLANGEBOLT, FLANGE
-
2JW1-H1170-11-00 TENSIONER ASSYTENSIONER ASSY
-
395822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
490109-08827-00 BOLTBOLT
-
595702-08500-00 NUT, FLANGENUT, FLANGE
-
690101-06478-00 BOLTBOLT
-
795302-06600-00 NUTNUT
-
8JN6-H1171-10-00 BRACKET, STARTER GENERATORBRACKET, STARTER GENERATOR
-
995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
10JW1-H1173-00-00 BELTBELT
-
11JR7-85650-00-00 ROTOR ASSYROTOR ASSY
-
12JN6-85640-01-00 T.C.I. UNIT ASSYT.C.I. UNIT ASSY
-
1395822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
14JN6-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
1595302-18600-00 NUTNUT
-
1690201-18620-00 WASHER, PLATEWASHER, PLATE
-
1790280-04052-00 KEY, WOODRUFFKEY, WOODRUFF
-
18JN6-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
19JE8-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
20JT0-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
2195822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
22JT0-85724-00-00 CLAMPCLAMP
-
23JT0-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2493210-15414-00 O-RINGO-RING
-
25JU5-H4700-10-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
26JU5-H4718-00-00 GROMMETGROMMET
