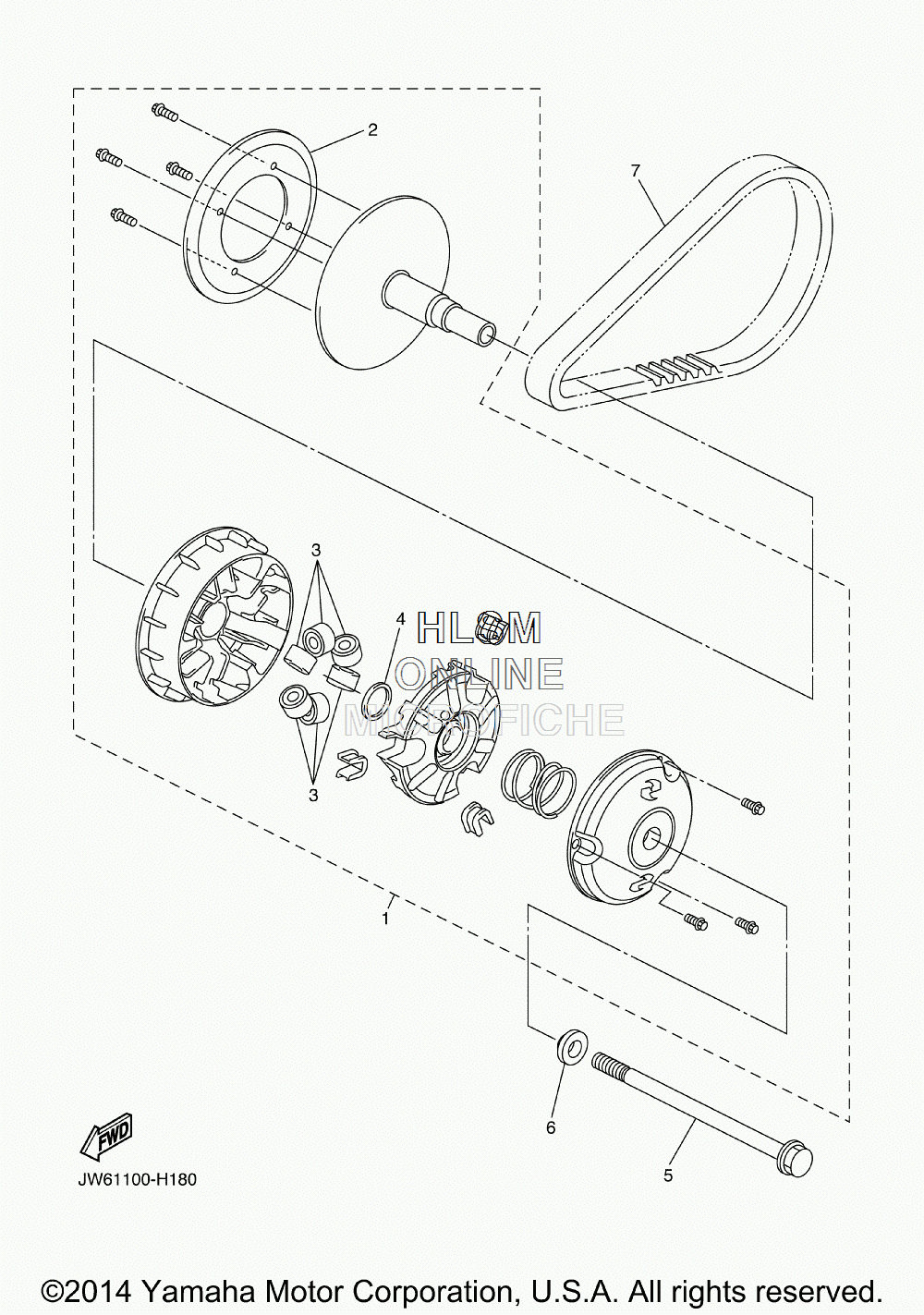

PRIMARY SHEAVE для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDRAXPSVL] (JD04) - 2011 года выпуска
-
№АртикулНазвание
-
1JW1-G6201-00-00 PRIMARY CLUTCH ASSYPRIMARY CLUTCH ASSY
-
2JW1-G6256-00-00 ...PULLEY 1...PULLEY 1
-
3JW1-G6232-00-00 ...WEIGHT 1...WEIGHT 1
-
4JW1-G621E-00-00 ...SHIM, PINION...SHIM, PINION
-
5JW1-G6249-01-00 BOLTBOLT
-
6JW1-G2548-00-00 WASHERWASHER
-
7JW1-G6241-10-00 V-BELTV-BELT
