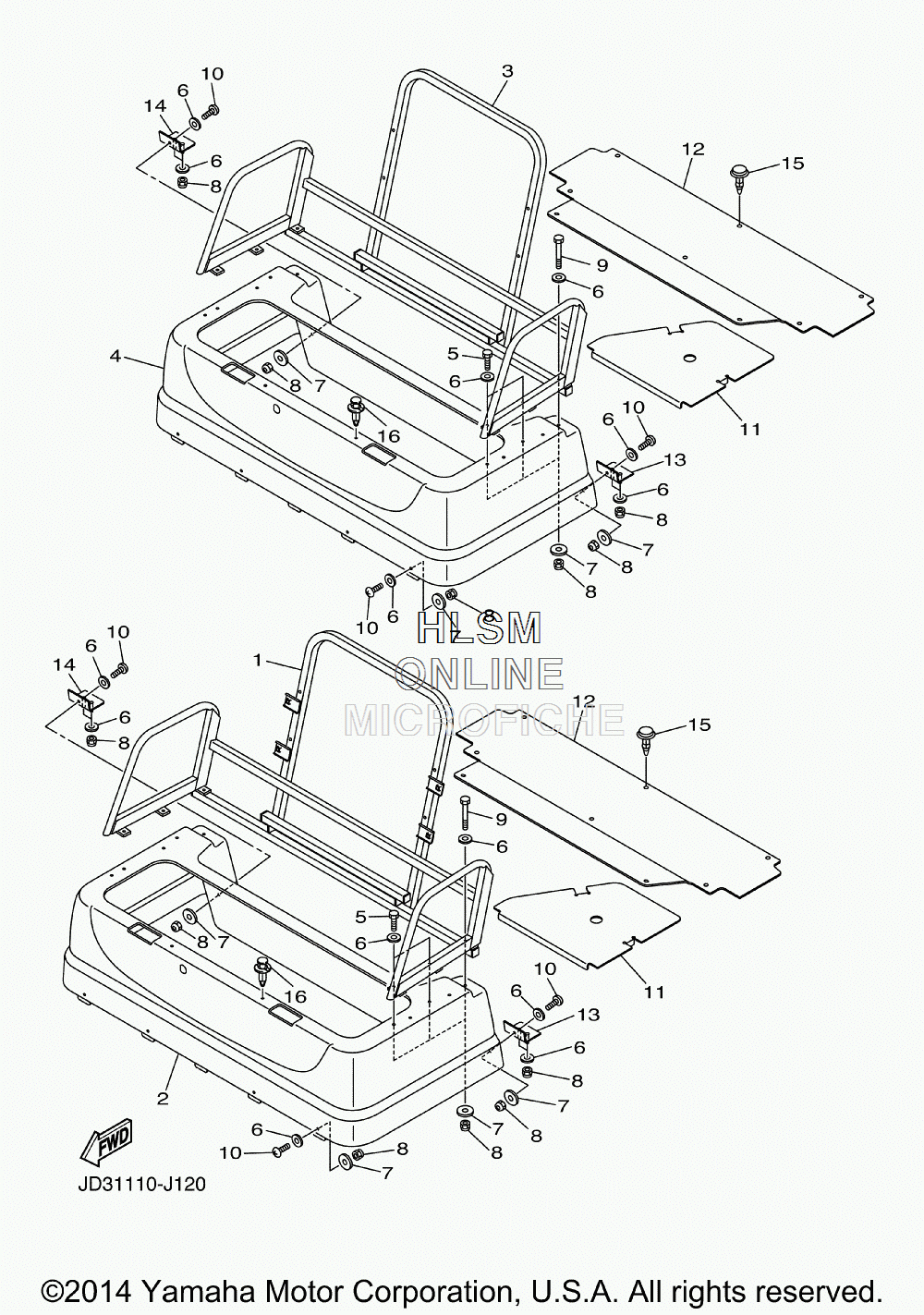

BODY - INTERMEDIATE для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDREXSVL] (JD33) - 2011 года выпуска
-
№АртикулНазвание
-
1JD0-K8460-00-00 SEAT FRAME COMP.SEAT FRAME COMP.
-
2JD4-K8141-30-00 PANEL, INTERMEDIATE BODY (LNYM8 - CHAMPAGNE METALLIC)PANEL, INTERMEDIATE BODY (LNYM8 - CHAMPAGNE METALLIC)
-
2JD4-K8141-20-00 PANEL, INTERMEDIATE BODY (HTR - HEAT RED)PANEL, INTERMEDIATE BODY (HTR - HEAT RED)
-
2JD4-K8141-10-00 PANEL, INTERMEDIATE BODY (VDGS1 - GREEN/EMERALD)PANEL, INTERMEDIATE BODY (VDGS1 - GREEN/EMERALD)
-
2JD4-K8141-00-00 PANEL, INTERMEDIATE BODY (WS7 - WHITE)PANEL, INTERMEDIATE BODY (WS7 - WHITE)
-
2JD4-K8141-80-00 PANEL, INTERMEDIATE BODY (DPBST - TRUE BLUE)PANEL, INTERMEDIATE BODY (DPBST - TRUE BLUE)
-
2JD4-K8141-50-00 PANEL, INTERMEDIATE BODY (BMG - BLACK METALLIC)PANEL, INTERMEDIATE BODY (BMG - BLACK METALLIC)
-
2JD4-K8141-40-00 PANEL, INTERMEDIATE BODY (NBM7 - BLUE SILVER METALLIC)PANEL, INTERMEDIATE BODY (NBM7 - BLUE SILVER METALLIC)
-
3JD1-K8460-00-00 SEAT FRAME COMP.SEAT FRAME COMP.
-
4JD4-K8141-30-00 PANEL, INTERMEDIATE BODY (LNYM8 - CHAMPAGNE METALLIC)PANEL, INTERMEDIATE BODY (LNYM8 - CHAMPAGNE METALLIC)
-
4JD4-K8141-40-00 PANEL, INTERMEDIATE BODY (NBM7 - BLUE SILVER METALLIC)PANEL, INTERMEDIATE BODY (NBM7 - BLUE SILVER METALLIC)
-
4JD4-K8141-50-00 PANEL, INTERMEDIATE BODY (BMG - BLACK METALLIC)PANEL, INTERMEDIATE BODY (BMG - BLACK METALLIC)
-
4JD4-K8141-80-00 PANEL, INTERMEDIATE BODY (DPBST - TRUE BLUE)PANEL, INTERMEDIATE BODY (DPBST - TRUE BLUE)
-
4JD4-K8141-10-00 PANEL, INTERMEDIATE BODY (VDGS1 - GREEN/METALLIC)PANEL, INTERMEDIATE BODY (VDGS1 - GREEN/METALLIC)
-
4JD4-K8141-20-00 PANEL, INTERMEDIATE BODY (HTR - HEAT RED)PANEL, INTERMEDIATE BODY (HTR - HEAT RED)
-
4JD4-K8141-00-00 PANEL, INTERMEDIATE BODY (WS7 - WHITE)PANEL, INTERMEDIATE BODY (WS7 - WHITE)
-
5JD1-K7481-00-00 BOLTBOLT
-
6JD1-K7525-00-00 WASHER 1WASHER 1
-
7JD1-K7526-00-00 WASHER 2WASHER 2
-
8JD1-K7528-00-00 NUTNUT
-
9JD1-K7574-00-00 BOLTBOLT
-
10JD1-K7387-00-00 SCREWSCREW
-
11JD1-K811U-00-00 LID 2LID 2
-
12JD1-K8241-00-00 MAT, REAR FLOORMAT, REAR FLOOR
-
13JD1-K8135-00-00 BRACKET 1BRACKET 1
-
14JD1-K8136-00-00 BRACKET 2BRACKET 2
-
15JW1-K7449-00-00 RIVET 1RIVET 1
-
1690269-08813-00 RIVETRIVET
