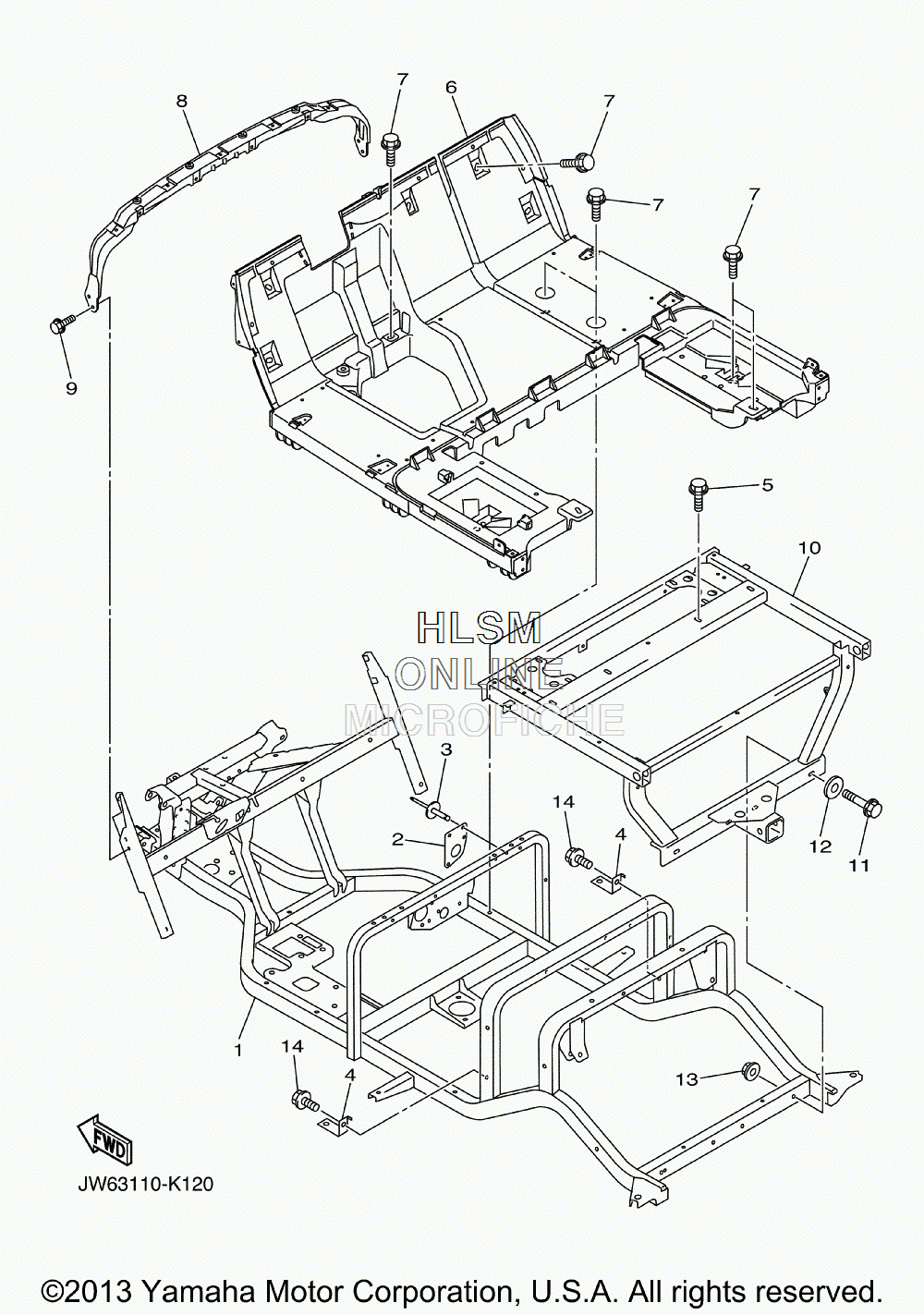

FRAME для Yamaha ADVENTURER [YTF1X2] (JW65) - 2012 года выпуска
-
№АртикулНазвание
-
1JW6-F2501-20-00 FRAME COMP.FRAME COMP.
-
2JW8-F4425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
3JW8-F4619-00-00 RIVETRIVET
-
4JW8-F1153-00-00 BRACKET, REAR FOOTRESTBRACKET, REAR FOOTREST
-
5JW1-F1738-00-00 BOLTBOLT
-
6JW7-F7411-11-00 FOOTREST 1FOOTREST 1
-
7JW1-F1738-00-00 BOLTBOLT
-
8JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
990105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
10JW6-F2504-00-00 RR. SUB-FRAME COMP.RR. SUB-FRAME COMP.
-
1190105-088A7-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-08843-00 WASHER, PLATEWASHER, PLATE
-
1395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
14JW1-F1738-00-00 BOLTBOLT
