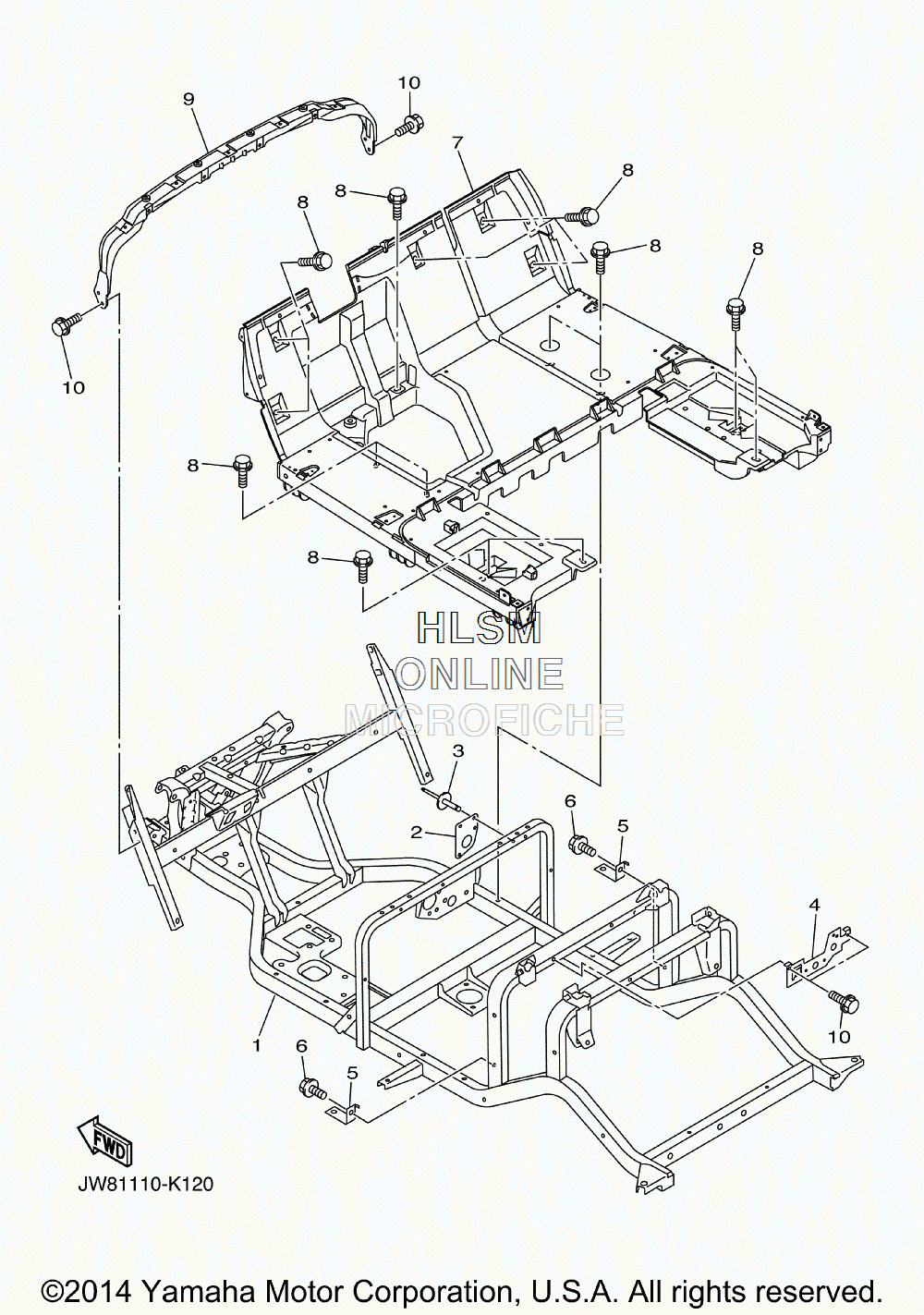

FRAME для Yamaha GOLF CAR GAS [DRIVE YDRAX2] (JW83) - 2012 года выпуска
-
№АртикулНазвание
-
1JW8-F2501-00-00 FRAME COMP.FRAME COMP.
-
2JW8-F4425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
3JW8-F4619-00-00 RIVETRIVET
-
4JW8-F253B-00-00 STAY, RELAYSTAY, RELAY
-
5JW8-F1153-00-00 BRACKET, REAR FOOTRESTBRACKET, REAR FOOTREST
-
6JW1-F1738-00-00 BOLTBOLT
-
7JW1-F7411-11-00 FOOTREST 1FOOTREST 1
-
8JW1-F1738-00-00 BOLTBOLT
-
9JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1090105-06831-00 BOLT, FLANGEBOLT, FLANGE
