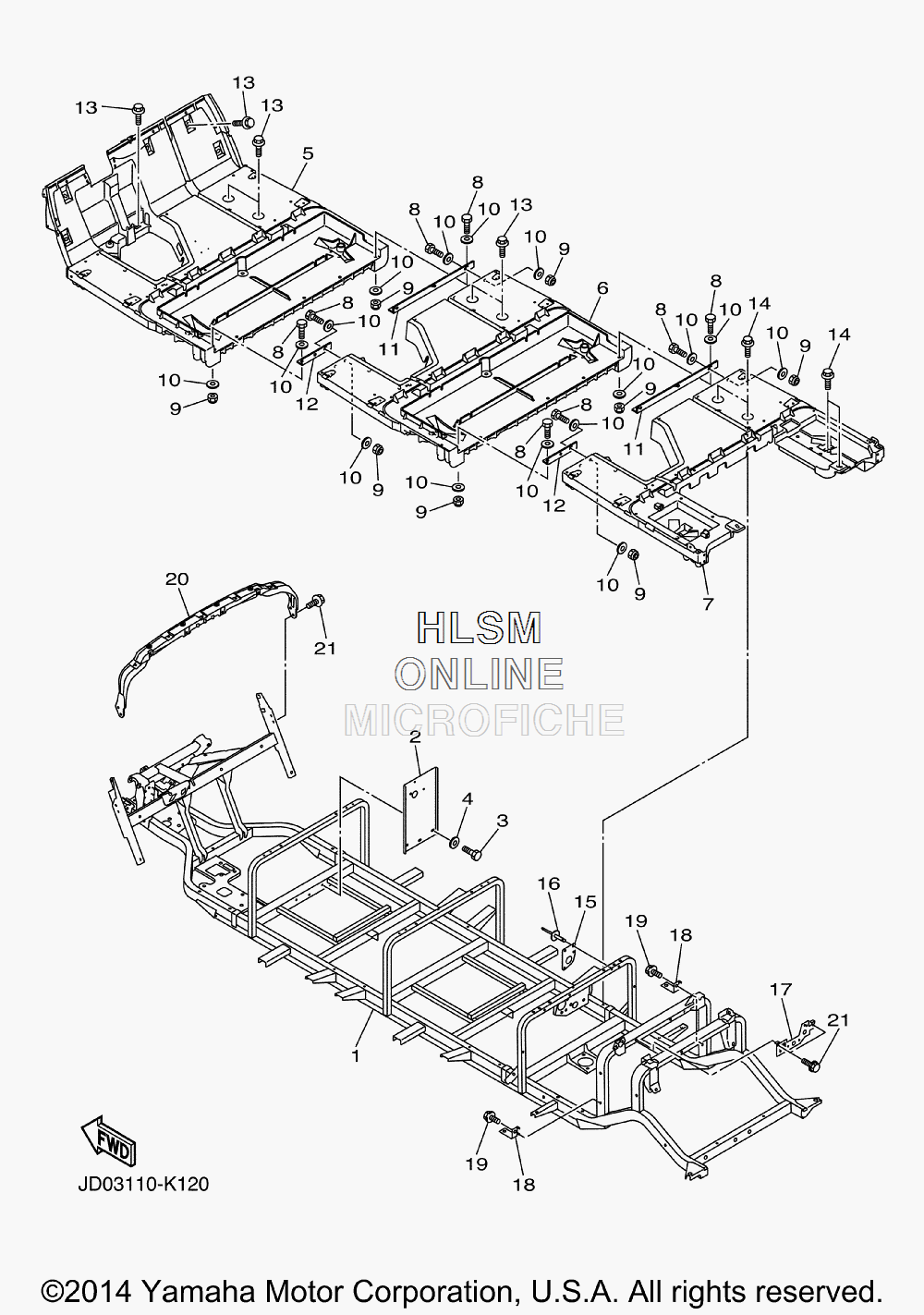

FRAME 1 для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDRAXPSVL] (JD041) - 2012 года выпуска
-
№АртикулНазвание
-
1JD0-F2501-21-00 FRAME COMP.FRAME COMP.
-
2JD1-F252K-00-00 STAY, SHIFTSTAY, SHIFT
-
3JD1-F2125-00-00 BOLTBOLT
-
4JD1-F2243-00-00 WASHER 1WASHER 1
-
5JD4-F7411-30-00 FOOTREST 1FOOTREST 1
-
6JD4-F7411-40-00 FOOTREST 1FOOTREST 1
-
7JD1-F7411-00-00 FOOTREST 1FOOTREST 1
-
8JD1-K7481-00-00 BOLTBOLT
-
9JD1-K7528-00-00 NUTNUT
-
10JD1-K7525-00-00 WASHER 1WASHER 1
-
11JD3-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
12JD3-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
13JW1-F1738-00-00 BOLTBOLT
-
14JW1-F1738-00-00 BOLTBOLT
-
15JW8-F4425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
16JW8-F4619-00-00 RIVETRIVET
-
17JW8-F253B-00-00 STAY, RELAYSTAY, RELAY
-
18JW8-F1153-00-00 BRACKET, REAR FOOTRESTBRACKET, REAR FOOTREST
-
19JW1-F1738-00-00 BOLTBOLT
-
20JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
2190105-06831-00 BOLT, FLANGEBOLT, FLANGE
