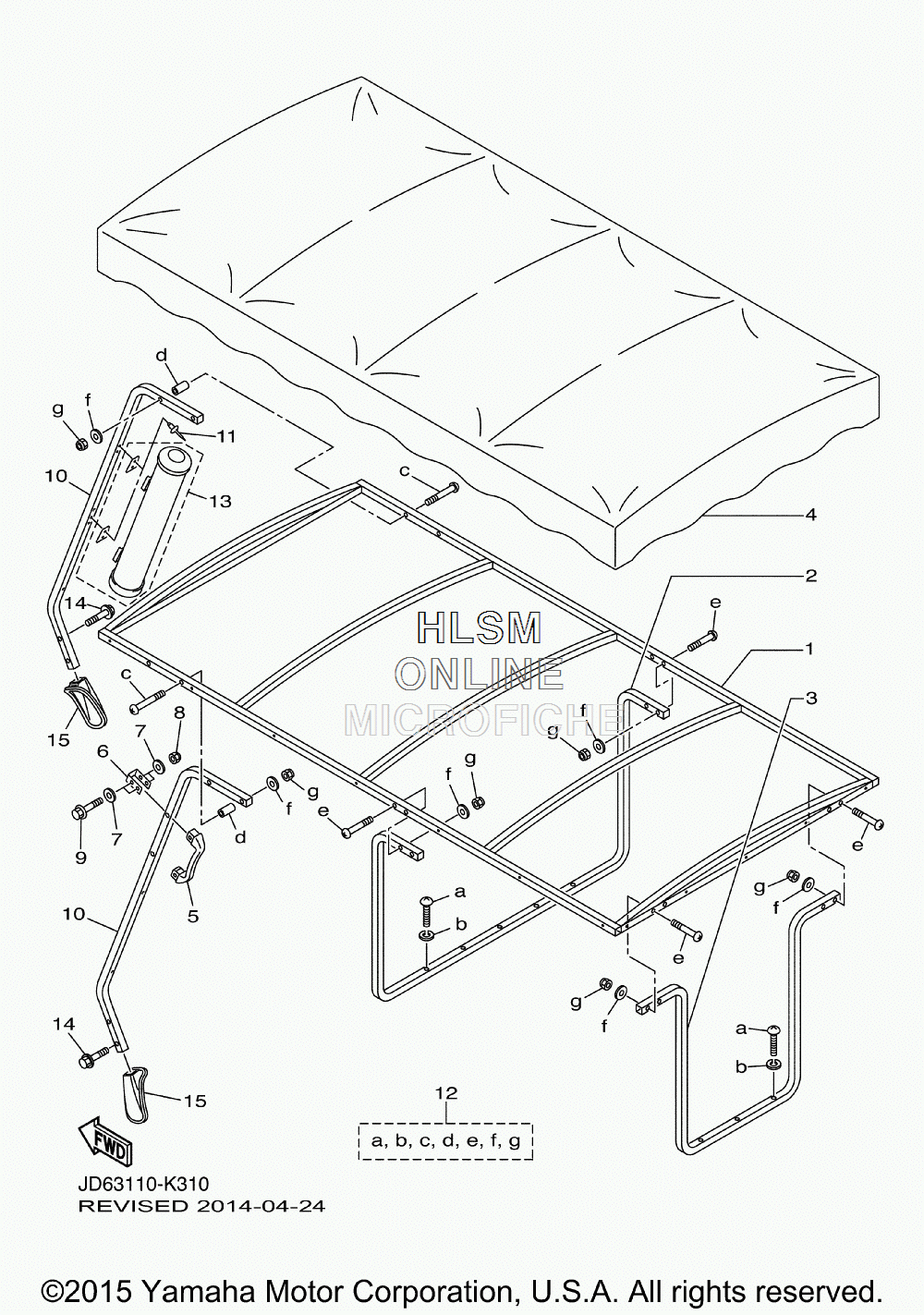

SUN ROOF - DOUBLE для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2XPSVB] (JD64) - 2012 года выпуска
-
№АртикулНазвание
-
-JD6-F5859-00-00 CANOPY FRAME W/ FRONT SCANOPY FRAME W/ FRONT S
-
1JD6-K8304-00-00 ...ROOF COVER SUB ASSY...ROOF COVER SUB ASSY
-
2JD6-K8313-00-00 ...SUPPORT, SUN ROOF 2...SUPPORT, SUN ROOF 2
-
3JD6-K831E-00-00 ...SUPPORT, ROOF 4...SUPPORT, ROOF 4
-
4JD6-K8314-00-00 ...COVER, SUN ROOF...COVER, SUN ROOF
-
5JW1-K8214-00-00 GRIP, HANDGRIP, HAND
-
6JD6-F3461-00-00 BRACKET, HANDLE (INCLUDE 2 BRKTS)BRACKET, HANDLE (INCLUDE 2 BRKTS)
-
7JD1-F2244-00-00 WASHER 2WASHER 2
-
8JD1-F2143-00-00 NUTNUT
-
9JD6-F6225-00-00 BOLT, HANDLEBOLT, HANDLE
-
10JD6-K8312-00-00 SUPPORT, SUN ROOF 1SUPPORT, SUN ROOF 1
-
11JD1-K7449-00-00 RIVET 1RIVET 1
-
12JD6-F48A2-00-00 HARDWARE KIT, REAR RACKHARDWARE KIT, REAR RACK
-
13JD6-F5858-00-00 CUP, CYLINDER 1 (OPT) (12-24 OZ CUP)CUP, CYLINDER 1 (OPT) (12-24 OZ CUP)
-
13JD6-F5859-00-00 CUP, CYLINDER 2 (OPT) (6-10 OZ CUP)CUP, CYLINDER 2 (OPT) (6-10 OZ CUP)
-
14JW1-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
-
15JW1-K832F-10-00 GROMMET, ROOF SUPPORT 1GROMMET, ROOF SUPPORT 1
