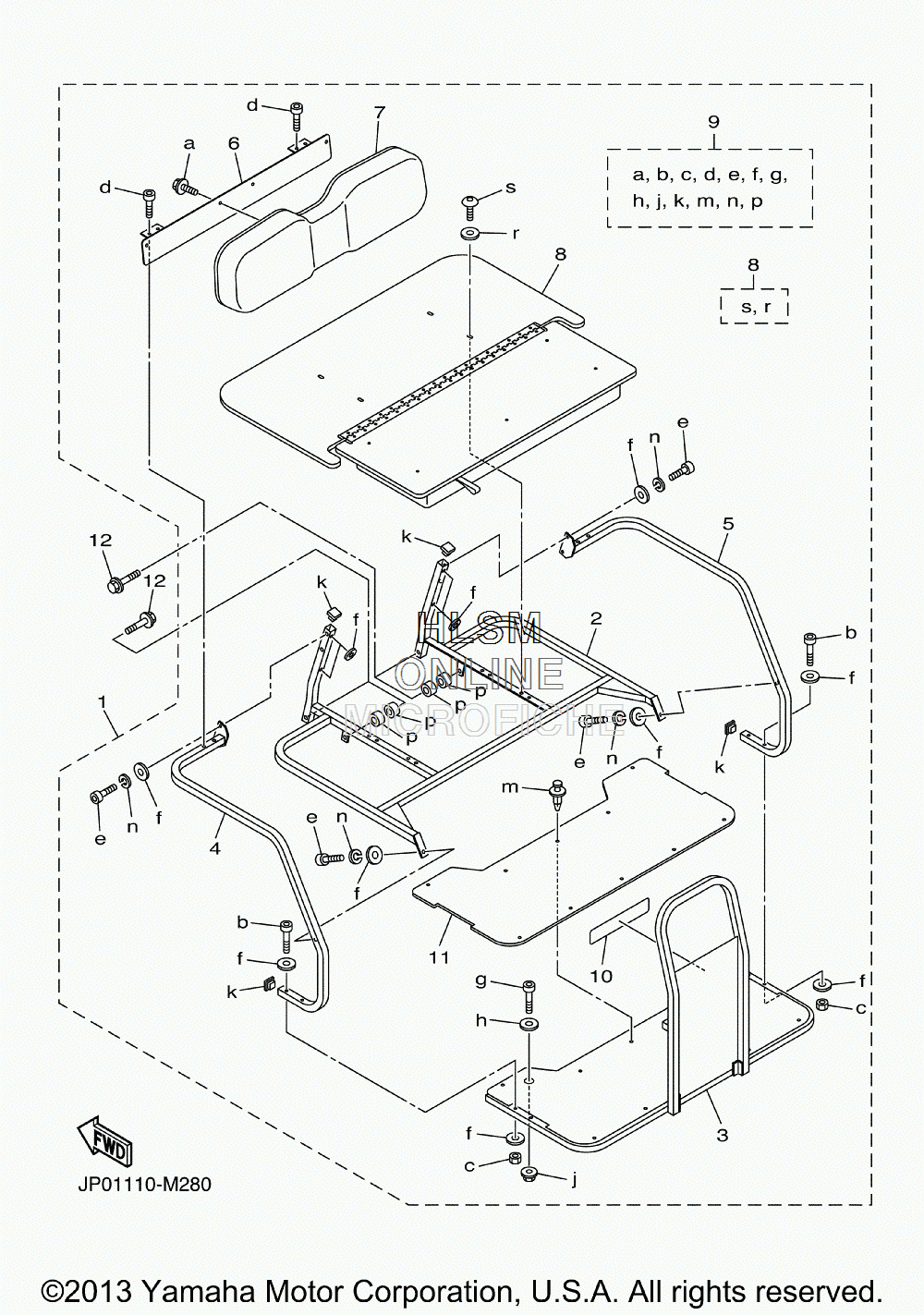

SEAT 2 для Yamaha ADVENTURER SPORT 2+2 [YDREX3] (JP11) - 2013 года выпуска
-
№АртикулНазвание
-
1JP0-K8476-00-00 4 PASSENGER SEAT COMP.4 PASSENGER SEAT COMP.
-
2JP0-K8460-00-00 ...SEAT FRAME COMP....SEAT FRAME COMP.
-
3JP0-K8477-00-00 ...FLOOR ASSEMBLY...FLOOR ASSEMBLY
-
4JP0-K8473-00-00 ...HANDRAIL ASSEMBLY (LH)...HANDRAIL ASSEMBLY (LH)
-
5JP0-K8474-00-00 ...HANDRAIL ASSEMBLY (RH)...HANDRAIL ASSEMBLY (RH)
-
6JP0-K8432-00-00 ...BRACKET, SEAT SUPPORT 2...BRACKET, SEAT SUPPORT 2
-
7JP0-K8402-00-00 ...SEAT SUB ASSY, BACK...SEAT SUB ASSY, BACK
-
8JP0-K8480-00-00 ...SEAT BOTTOM COMPLETE 1...SEAT BOTTOM COMPLETE 1
-
9JP0-F47E2-00-00 ...HARDWARE KIT, TANDEM SEAT...HARDWARE KIT, TANDEM SEAT
-
10JP0-K8483-00-00 ...LABEL WARNING...LABEL WARNING
-
11JP0-K8466-00-00 ...MAT, RUBBER...MAT, RUBBER
-
1290109-08002-00 BOLTBOLT
