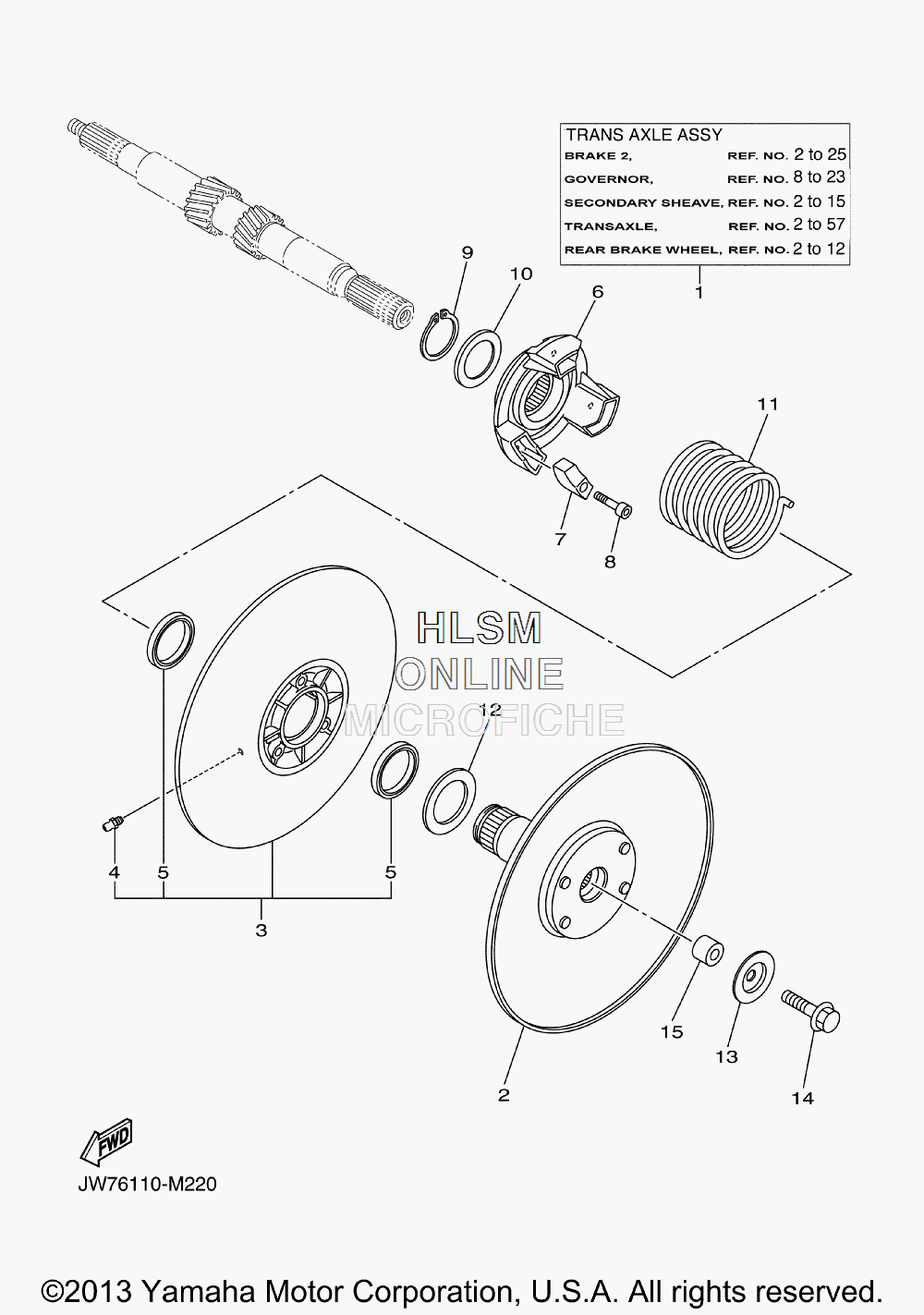

SECONDARY SHEAVE для Yamaha ADVENTURER [YTF2X3] (JW76) - 2013 года выпуска
-
№АртикулНазвание
-
1JW7-46300-21-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JY2-46260-20-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
3JY2-46270-20-00 SECONDARY SLIDING SHEAVE COMP.SECONDARY SLIDING SHEAVE COMP.
-
4JY2-2135J-00-00 ...NIPPLE...NIPPLE
-
5JY2-4624B-00-00 ...OIL SEAL 2...OIL SEAL 2
-
6JY2-46284-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
7JY2-17688-00-00 SHOE, RAMPSHOE, RAMP
-
8JY2-46159-00-00 BOLT 3BOLT 3
-
9JY2-45531-00-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
10JY2-46374-00-00 COLLAR, SPRINGCOLLAR, SPRING
-
11JY2-46275-00-00 SPRING, CLUTCH 1SPRING, CLUTCH 1
-
12JY2-45677-00-00 WASHERWASHER
-
1390209-08018-00 WASHERWASHER
-
1490105-08002-00 BOLT, FLANGEBOLT, FLANGE
-
1590387-08100-00 COLLARCOLLAR
