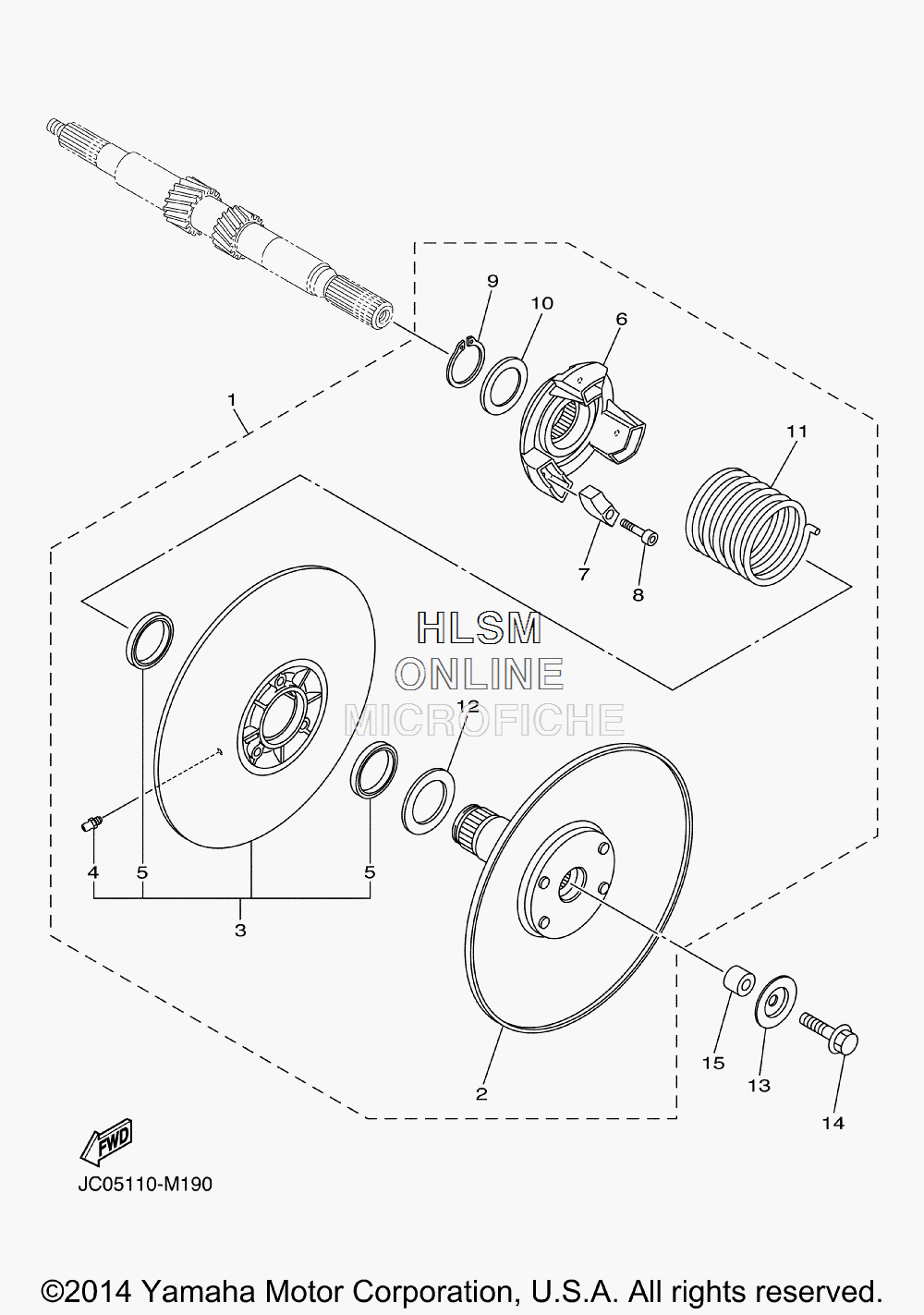

SECONDARY SHEAVE для Yamaha GOLF CAR GAS [YDRAX3 PTV] (JC05) - 2013 года выпуска
-
№АртикулНазвание
-
1JW8-G6202-20-00 SECONDARY SHEAVE ASSYSECONDARY SHEAVE ASSY
-
2JW8-G6260-20-00 ...SECONDARY FIXED SHEAVE COMP....SECONDARY FIXED SHEAVE COMP.
-
3JW8-G6270-20-00 ...SECONDARY SLIDING SHEAVE COM...SECONDARY SLIDING SHEAVE COM
-
4JW8-F135J-00-00 ......NIPPLE......NIPPLE
-
5JW8-G624B-00-00 ......OIL SEAL 2......OIL SEAL 2
-
6JW8-G6284-00-00 ...SEAT, SECONDARY SPRING...SEAT, SECONDARY SPRING
-
7JW8-E7688-00-00 ...SHOE, RAMP...SHOE, RAMP
-
8JW8-G6159-00-00 ...BOLT 3...BOLT 3
-
9JW8-G5531-00-00 ...CLIP, DRIVE SHAFT...CLIP, DRIVE SHAFT
-
10JW8-G6374-00-00 ...COLLAR, SPRING...COLLAR, SPRING
-
11JW8-G6275-10-00 ...SPRING, CLUTCH 1...SPRING, CLUTCH 1
-
12JW8-G5677-00-00 ...WASHER...WASHER
-
1390209-08018-00 WASHERWASHER
-
1490105-08002-00 BOLT, FLANGEBOLT, FLANGE
-
15JW8-G5697-20-00 COLLARCOLLAR
