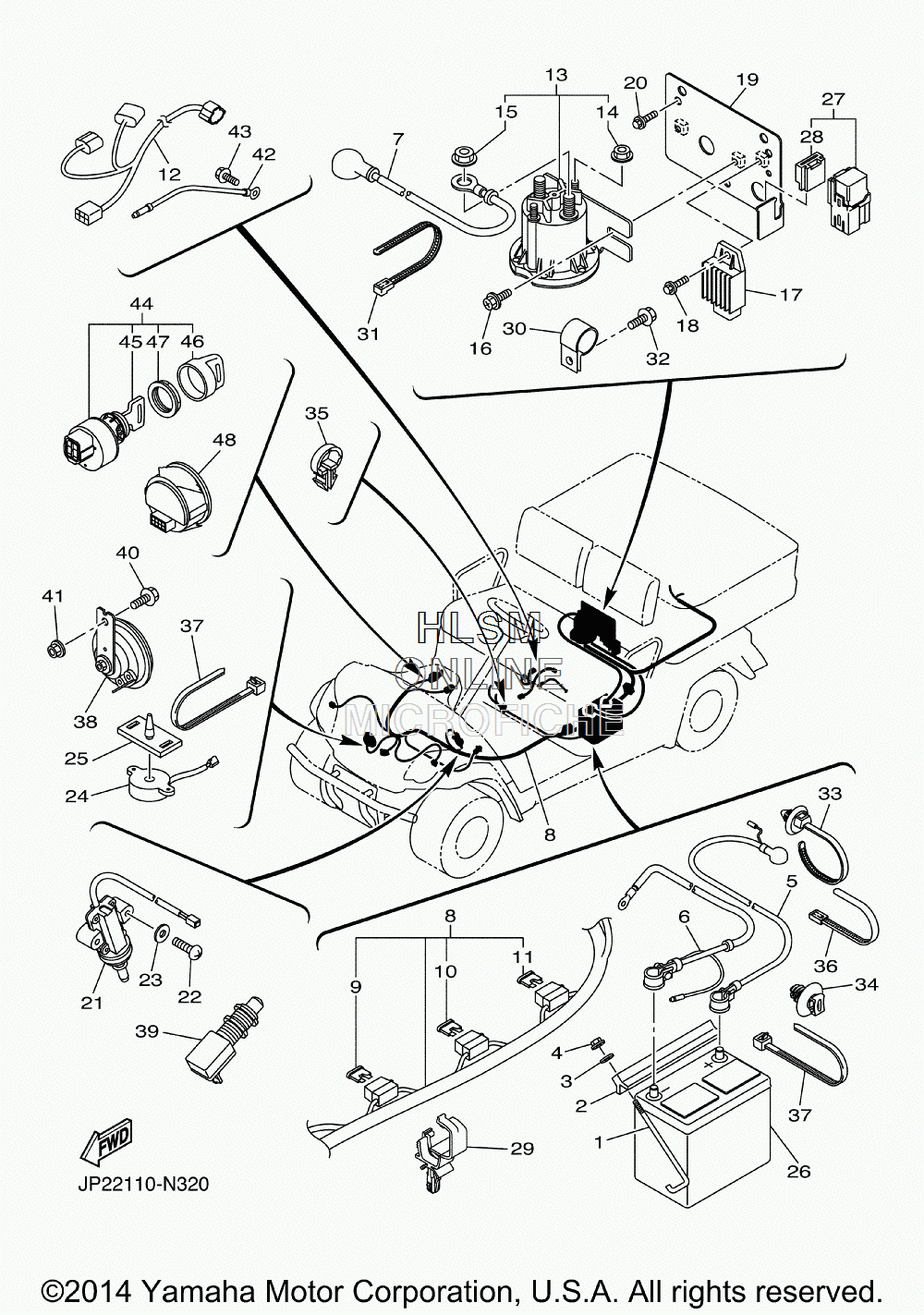

ELECTRICAL 2 для Yamaha ADVENTURER SPORT [YTF1AX4] (JP22) - 2014 года выпуска
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5JW1-H2115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW1-H2116-02-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW1-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JW6-H2590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
9JW6-H554E-00-00 ...FUSE (10A)...FUSE (10A)
-
10JW6-H554E-10-00 ...FUSE (15A)...FUSE (15A)
-
11JW6-H554E-20-00 ...FUSE (25A)...FUSE (25A)
-
12JC0-82149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
13JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1490179-05807-00 ...NUT...NUT
-
1590179-08824-00 ...NUT...NUT
-
1690105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
17JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1890105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
19JW6-F253B-01-00 STAY, RELAYSTAY, RELAY
-
2090105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
21JF7-82817-22-00 SWITCHSWITCH
-
2298502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
24JR1-H3383-02-00 BUZZERBUZZER
-
25JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
275EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
285EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
2990464-20237-00 CLAMPCLAMP
-
3090461-14108-00 CLAMPCLAMP
-
3190464-09823-00 CLAMPCLAMP
-
3290105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3390464-20005-00 CLAMPCLAMP
-
345UG-F2465-10-00 HOLDERHOLDER
-
3590464-19815-00 CLAMPCLAMP
-
3690464-40825-00 CLAMPCLAMP
-
3790464-48800-00 CLAMPCLAMP
-
384LR-83371-11-00 HORNHORN
-
39JR6-H270X-00-00 SWITCHSWITCH
-
4095822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4195702-06500-00 NUT, FLANGENUT, FLANGE
-
42JC0-82519-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
4395817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
44JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
45JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
465UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
47JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
48JC0-H351C-00-00 GAUGE 1GAUGE 1
