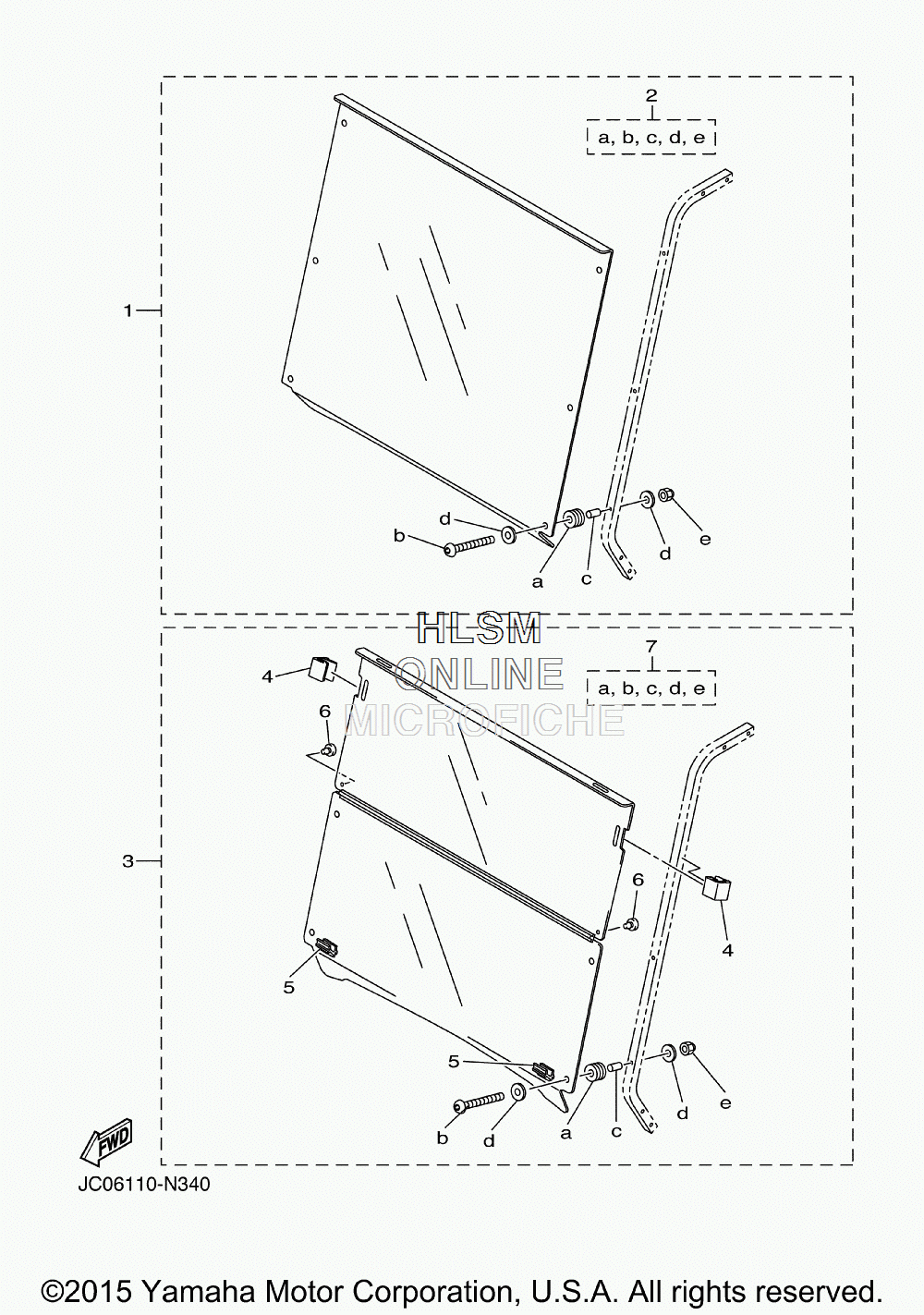

WINDSHIELD (ALTERNATE) для Yamaha ADVENTURER TWO [YTF2AX4F] (JW77) - 2014 года выпуска
-
№АртикулНазвание
-
1JW8-K7200-00-00 WINDSHIELD ASSY, SOLID (CLEAR)WINDSHIELD ASSY, SOLID (CLEAR)
-
2GCA-JW821-00-00 ...HARDWARE KIT...HARDWARE KIT
-
3JW8-K7200-20-00 WINDSHIELD ASSY, HINGED (CLEAR)WINDSHIELD ASSY, HINGED (CLEAR)
-
3JW8-K7200-30-00 WINDSHIELD ASSY, HINGED (SMOKE)WINDSHIELD ASSY, HINGED (SMOKE)
-
4JW8-K7173-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
5JW8-K7222-00-00 ...BRACKET, WINDSHIELD (RIGHT HAND)...BRACKET, WINDSHIELD (RIGHT HAND)
-
6JW8-K8167-00-00 ...BUMPER, RUBBER 1...BUMPER, RUBBER 1
-
7GCA-JW822-01-00 ......HARDWARE KIT......HARDWARE KIT
