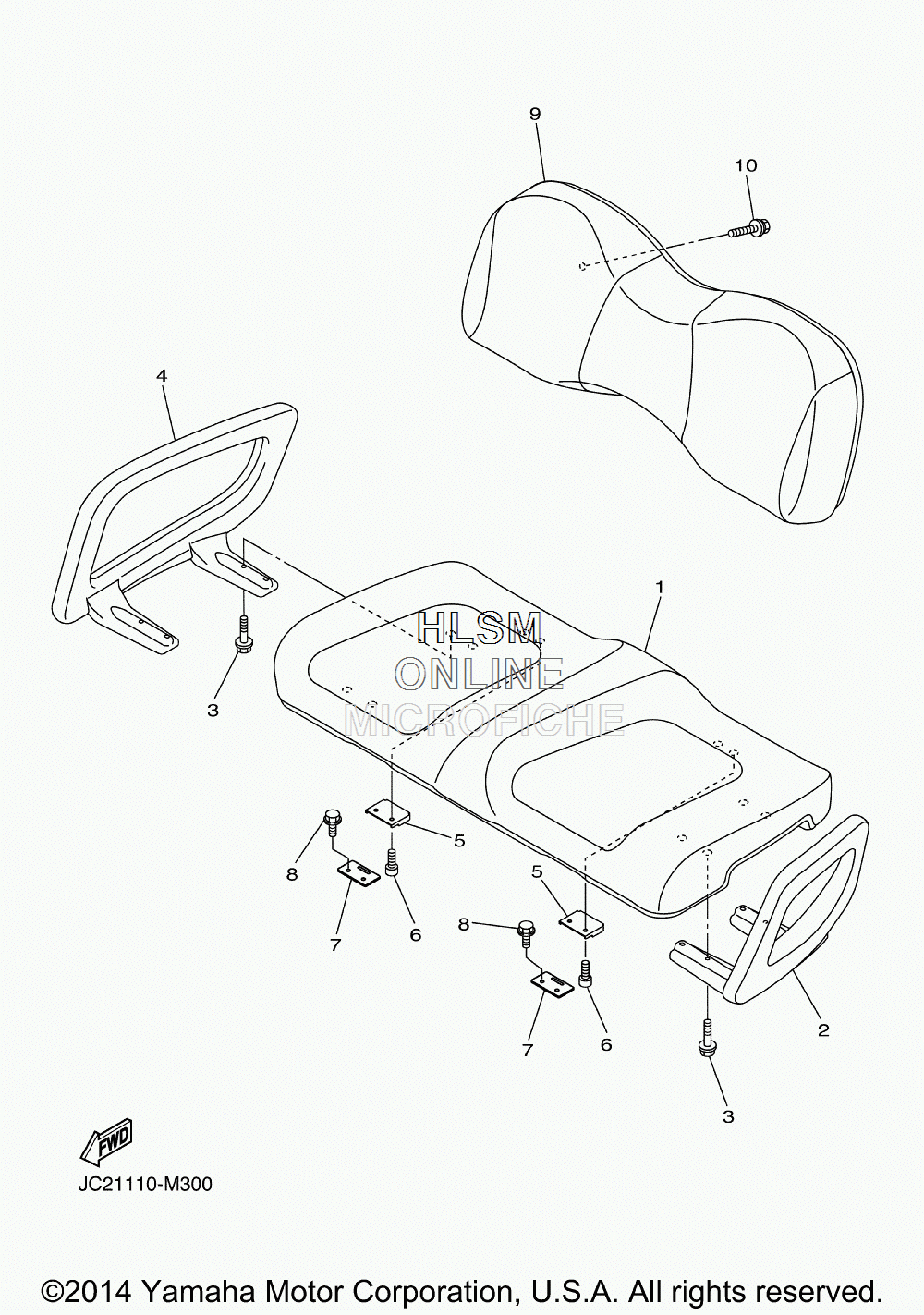

SEAT для Yamaha GOLF CAR ELECTRIC [DRIVE YDREX4PTV] (JC16) - 2014 года выпуска
-
№АртикулНазвание
-
1JW1-K8401-12-00 SEAT SUB-ASSY,CUSHIONSEAT SUB-ASSY,CUSHION
-
2JW1-K8361-00-00 ARM REST 1ARM REST 1
-
390105-06129-00 BOLT, FLANGEBOLT, FLANGE
-
4JW1-K8362-00-00 ARM REST 2ARM REST 2
-
5JW1-K8426-00-00 HINGE, SEAT 1HINGE, SEAT 1
-
690110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7JW1-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
890163-06802-00 SCREW, TAPPINGSCREW, TAPPING
-
9JW1-K8402-10-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
1090119-06808-00 BOLT, WITH WASHERBOLT, WITH WASHER
Все узлы модели:
- ALTERNATE FOR SUN ROOF
- ALTERNATE FOR WINDSHIELD
- BATTERY CHARGER
- BODY
- BODY 2
- BODY FITTING
- BUMPER
- CARRIER
- CONTROLLER 1
- ELECTRICAL
- FRAME
- FRONT SUSPENSION
- HEADLIGHT / TAIL LIGHT
- MODEL INFO - MANUALS
- PEDAL ASSEMBLY
- REAR VIEW MIRROR
- • SEAT
- STARTER - RECOIL
- STEERING
- SUSPENSION - SWING ARM
- TRANSAXLE
- WHEEL - FRONT/REAR
