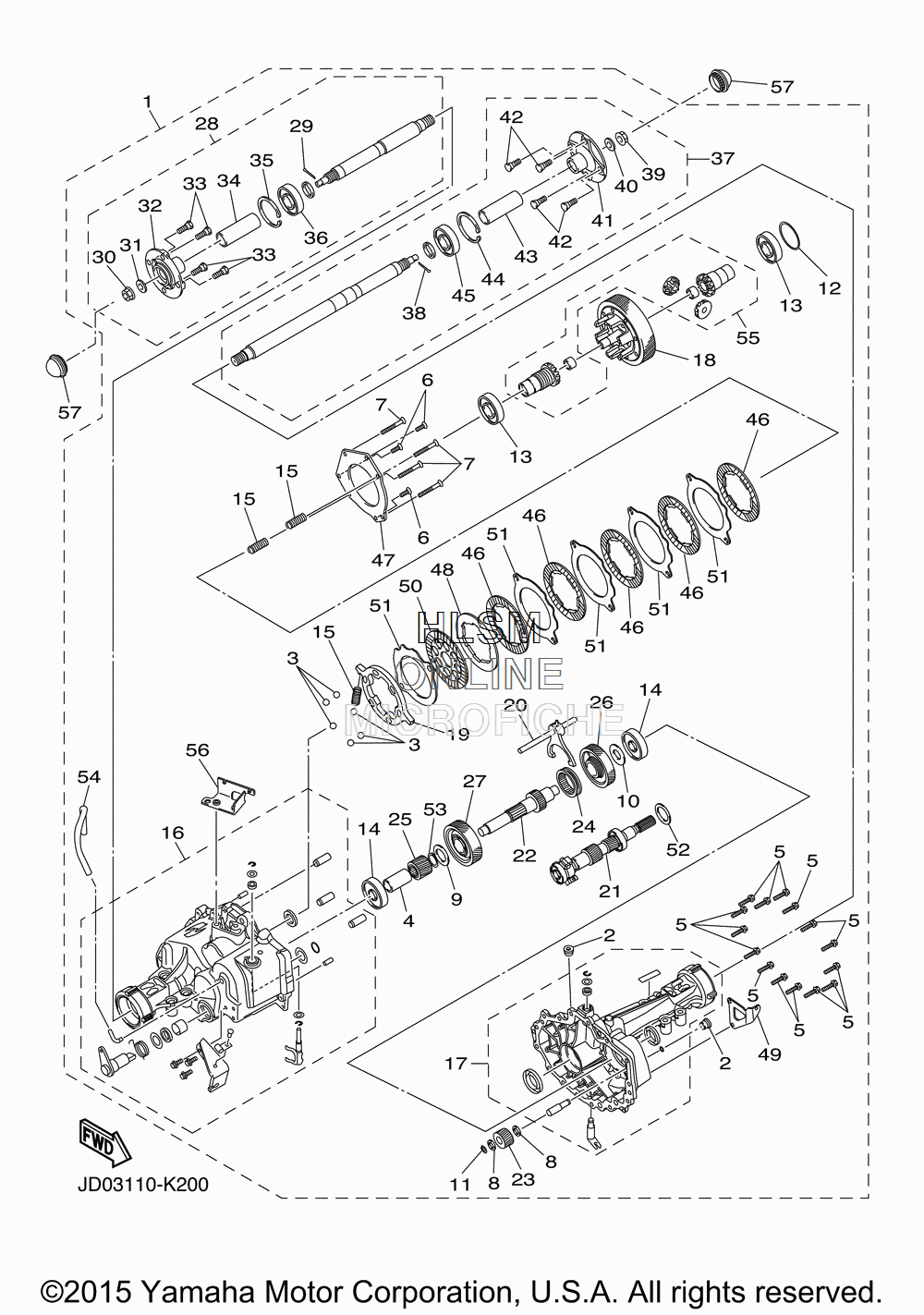

TRANSAXLE для Yamaha GOLF CAR GAS [DRIVE YDRAX4] (JW85) - 2014 года выпуска
-
№АртикулНазвание
-
1JW1-G6300-02-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW1-G6168-00-00 ...PLUG, DRAIN 1...PLUG, DRAIN 1
-
3JW1-F4684-00-00 ...BALL...BALL
-
4JW1-G4132-00-00 ...BUSHING...BUSHING
-
5JW1-G4582-00-00 ...BOLT, 2...BOLT, 2
-
6JW1-G4189-00-00 ...SCREW...SCREW
-
7JW1-G6158-00-00 ...BOLT 2...BOLT 2
-
8JW1-G4188-00-00 ...WASHER...WASHER
-
9JW1-G5677-00-00 ...WASHER...WASHER
-
10JW1-G5618-00-00 ...WASHER, 1...WASHER, 1
-
11JW1-G6443-00-00 ...RING, HOLDOUT...RING, HOLDOUT
-
12JW1-G6117-00-00 ...SHIM, RING GEAR (OPT)...SHIM, RING GEAR (OPT)
-
13JW1-G6164-00-00 ...BEARING 1...BEARING 1
-
14JW1-G6165-00-00 ...BEARING 2...BEARING 2
-
15JW1-G4135-00-00 ...SPRING...SPRING
-
16JW1-G6540-02-00 ...REAR AXLE HOUSING COMP....REAR AXLE HOUSING COMP.
-
17JW1-G6550-02-00 ...REAR AXLE HOUSING COMP. 2...REAR AXLE HOUSING COMP. 2
-
18JW1-G6110-00-00 ...RING GEAR COMP....RING GEAR COMP.
-
19JW1-F384K-00-00 ...BALL, SEAT...BALL, SEAT
-
20JW1-G4120-00-00 ...HANDLE GEAR SHIFT ASSY...HANDLE GEAR SHIFT ASSY
-
21JW1-G6320-00-00 ...INPUT SHAFT ASSY...INPUT SHAFT ASSY
-
22JW1-G6348-00-00 ...SHAFT 2...SHAFT 2
-
23JW1-G6356-00-00 ...GEAR, IDLER...GEAR, IDLER
-
24JW1-G6328-00-00 ...GEAR, WHEEL 3...GEAR, WHEEL 3
-
25JW1-G6131-00-00 ...GEAR, RING 2...GEAR, RING 2
-
26JW1-G6361-00-00 ...GEAR, COUNTER 1...GEAR, COUNTER 1
-
27JW1-G6362-00-00 ...GEAR, COUNTER 2...GEAR, COUNTER 2
-
28JW1-G6510-01-00 ...REAR AXLE SHAFT COMP....REAR AXLE SHAFT COMP.
-
29JW1-G633J-00-00 ......PIN, COTTER......PIN, COTTER
-
30JW1-G4583-10-00 ......NUT......NUT
-
31JW1-G2376-00-00 ......WASHER, SPECIAL......WASHER, SPECIAL
-
32JW1-G6542-10-00 ......HUB......HUB
-
33JW1-G4178-00-00 ......BOLT, STUD......BOLT, STUD
-
34JW1-G6128-01-00 ......SPACER......SPACER
-
35JW1-G4156-00-00 ......RING, SNAP......RING, SNAP
-
36JW1-F2176-00-00 ......BEARING......BEARING
-
37JW1-G6520-01-00 ...REAR AXLE SHAFT COMP. 2...REAR AXLE SHAFT COMP. 2
-
38JW1-G633J-00-00 ......PIN, COTTER......PIN, COTTER
-
39JW1-G4583-10-00 ......NUT......NUT
-
40JW1-G2376-00-00 ......WASHER, SPECIAL......WASHER, SPECIAL
-
41JW1-G6542-10-00 ......HUB......HUB
-
42JW1-G4178-00-00 ......BOLT, STUD......BOLT, STUD
-
43JW1-G6128-01-00 ......SPACER......SPACER
-
44JW1-G4156-00-00 ......RING, SNAP......RING, SNAP
-
45JW1-F2176-00-00 ......BEARING......BEARING
-
46JW1-G6336-00-00 ...PLATE 1...PLATE 1
-
47JW1-G6114-00-00 ...PLATE, COVER...PLATE, COVER
-
48JW1-G4526-00-00 ...PLATE...PLATE
-
49JW1-G6554-00-00 ...BRACKET 1...BRACKET 1
-
50JW1-G6345-00-00 ...DISC, FRICTION...DISC, FRICTION
-
51JW1-G633H-00-00 ...PLATE 2...PLATE 2
-
52JW1-G6344-00-00 ...SHIM (OPT)...SHIM (OPT)
-
53JW1-G6854-00-00 ...RING...RING
-
54JW1-G6894-00-00 ...HOSE...HOSE
-
55JW1-G6410-20-00 ...DIFFERENTIAL ASSY....DIFFERENTIAL ASSY.
-
56JW1-G1661-00-00 ...BRACKET 1...BRACKET 1
-
57JN6-F5118-01-00 COVER, HUB DUSTCOVER, HUB DUST
