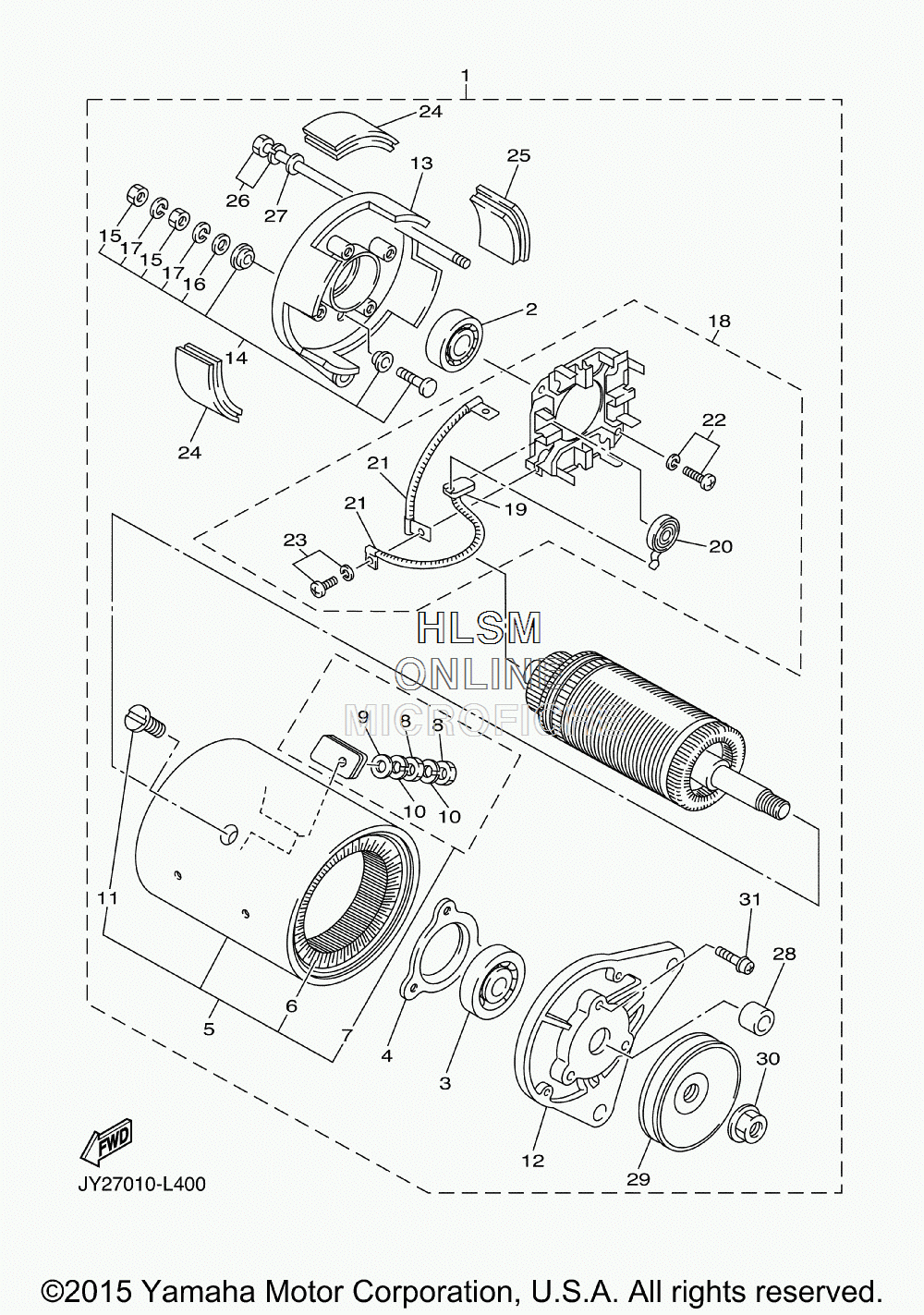

STARTING MOTOR для Yamaha GOLF CAR GAS [DRIVE YDRAX4F] (JC22) - 2014 года выпуска
-
№АртикулНазвание
-
1JN6-H1100-04-00 STARTER GENERATOR ASSYSTARTER GENERATOR ASSY
-
2J10-H1157-10-00 ...BEARING 1...BEARING 1
-
3J10-H1158-10-00 ...BEARING 2...BEARING 2
-
4J10-81159-10-00 ...HOLDER, BEARING...HOLDER, BEARING
-
5JN6-H1110-10-00 ...STATOR ASSY...STATOR ASSY
-
6JN6-H1160-10-00 ......FIELD COIL ASSY......FIELD COIL ASSY
-
7J10-81148-10-00 ......SCREW SET 4......SCREW SET 4
-
89530N-06600-00 .........NUT,HEX.........NUT,HEX
-
99290N-06600-00 .........WASHER.........WASHER
-
1092907-06100-00 .........WASHER, SPRING.........WASHER, SPRING
-
11J10-81146-10-00 ......SCREW 2......SCREW 2
-
12JN6-H1165-00-00 ...BRACKET, STARTER GENERATOR 1...BRACKET, STARTER GENERATOR 1
-
13J10-H1166-10-00 ...BRACKET, STARTER GENERATOR 2...BRACKET, STARTER GENERATOR 2
-
14J10-81147-10-00 ...SCREW SET 3...SCREW SET 3
-
159530N-06600-00 ......NUT,HEX......NUT,HEX
-
169290N-06600-00 ......WASHER......WASHER
-
1792907-06100-00 ......WASHER, SPRING......WASHER, SPRING
-
18JN6-H1119-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
19JF2-H1111-00-00 ......BRUSH......BRUSH
-
20JN6-H1113-00-00 ......SPRING, BRUSH......SPRING, BRUSH
-
21J10-81115-10-00 ......WIRE, LEAD......WIRE, LEAD
-
229850N-05016-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
239850N-04010-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
24J10-81129-10-00 ...COVER, BRUSH...COVER, BRUSH
-
25J10-81139-10-00 ...COVER, BRUSH 2...COVER, BRUSH 2
-
26J10-H1145-10-00 ...SCREW 1...SCREW 1
-
279290N-06600-00 ...WASHER...WASHER
-
28JN3-H1661-00-00 ...SPACER...SPACER
-
29JN6-H1161-00-00 ...PULLEY...PULLEY
-
3090179-16889-00 ...NUT...NUT
-
319850N-05018-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
