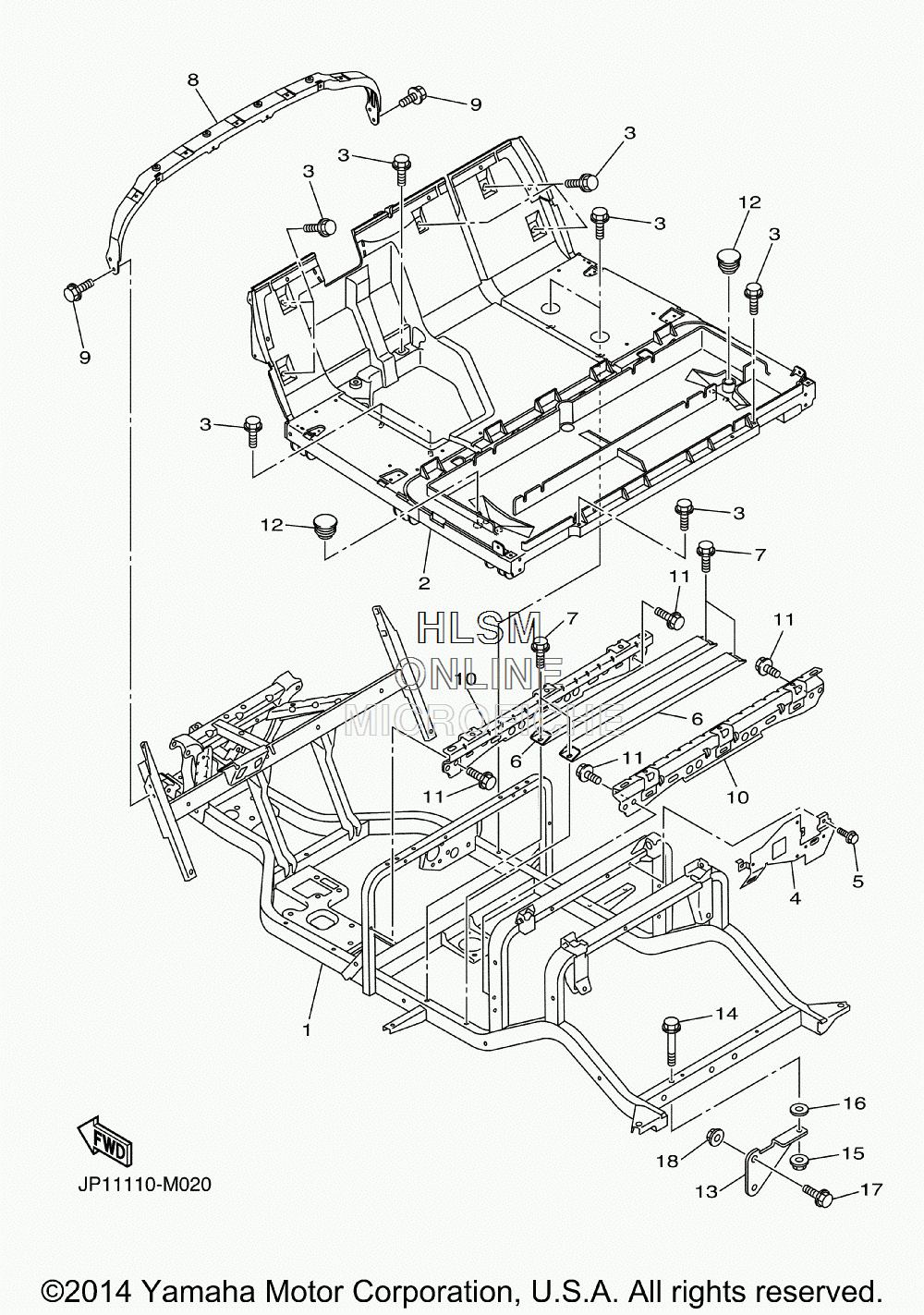

FRAME для Yamaha ADVENTURE SPORT 2+2 [YDREX5] (JP13) - 2015 года выпуска
-
№АртикулНазвание
-
1JP0-F2501-01-00 FRAME COMP.FRAME COMP.
-
2JC1-F7411-11-00 FOOTREST 1FOOTREST 1
-
3JW1-F1738-00-00 BOLTBOLT
-
4JW9-F252M-00-00 BRACKET, 3BRACKET, 3
-
590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
6JW9-F2198-01-00 MEMBER, CROSSMEMBER, CROSS
-
7JW1-F1738-00-00 BOLTBOLT
-
8JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
990105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
10JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
11JW1-F1738-00-00 BOLTBOLT
-
12JW9-F2417-00-00 PLUGPLUG
-
13JP0-F253G-00-00 BRACKET, ROD COMPLETE 2BRACKET, ROD COMPLETE 2
-
1495817-08085-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-08169-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690201-08843-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
1795812-12030-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
