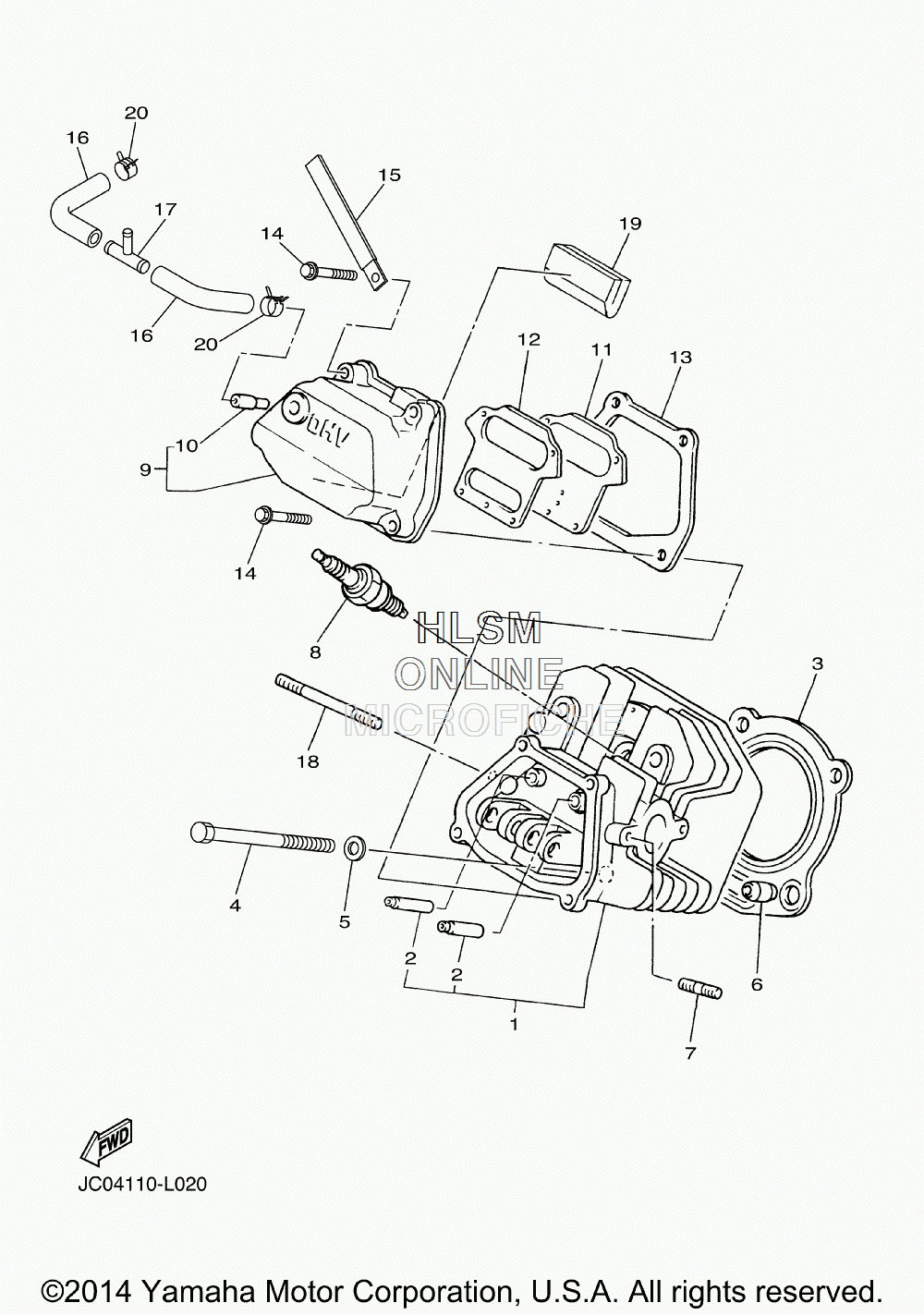

CYLINDER HEAD для Yamaha ADVENTURER ONE [YTF1AX5F] (JW68) - 2015 года выпуска
-
№АртикулНазвание
-
1JT0-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
2JN6-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
3JT0-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
497012-10070-00 BOLTBOLT
-
590201-10057-00 WASHER, PLATEWASHER, PLATE
-
699530-14016-00 PIN, DOWELPIN, DOWEL
-
795622-08618-00 BOLT, STUDBOLT, STUD
-
8BPR-4ES00-40-00 PLUG, SPARK (NGK BPR4ES) (OPT)PLUG, SPARK (NGK BPR4ES) (OPT)
-
8BPR-2ES00-00-00 PLUG, SPARK (NGK-BPR2ES) (STD)PLUG, SPARK (NGK-BPR2ES) (STD)
-
9JN6-11191-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
10JN6-11116-00-00 ...JOINT, BREATHER...JOINT, BREATHER
-
11JN6-11168-00-00 COVER, BREATHERCOVER, BREATHER
-
12JN6-11169-00-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
13JN6-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1495822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1590462-05061-00 CLAMPCLAMP
-
16JW1-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
17JW1-E1116-00-00 JOINT, BREATHERJOINT, BREATHER
-
1895602-08710-00 BOLT, STUDBOLT, STUD
-
19JR7-11163-10-00 ELEMENTELEMENT
-
2090467-13847-00 CLIPCLIP
