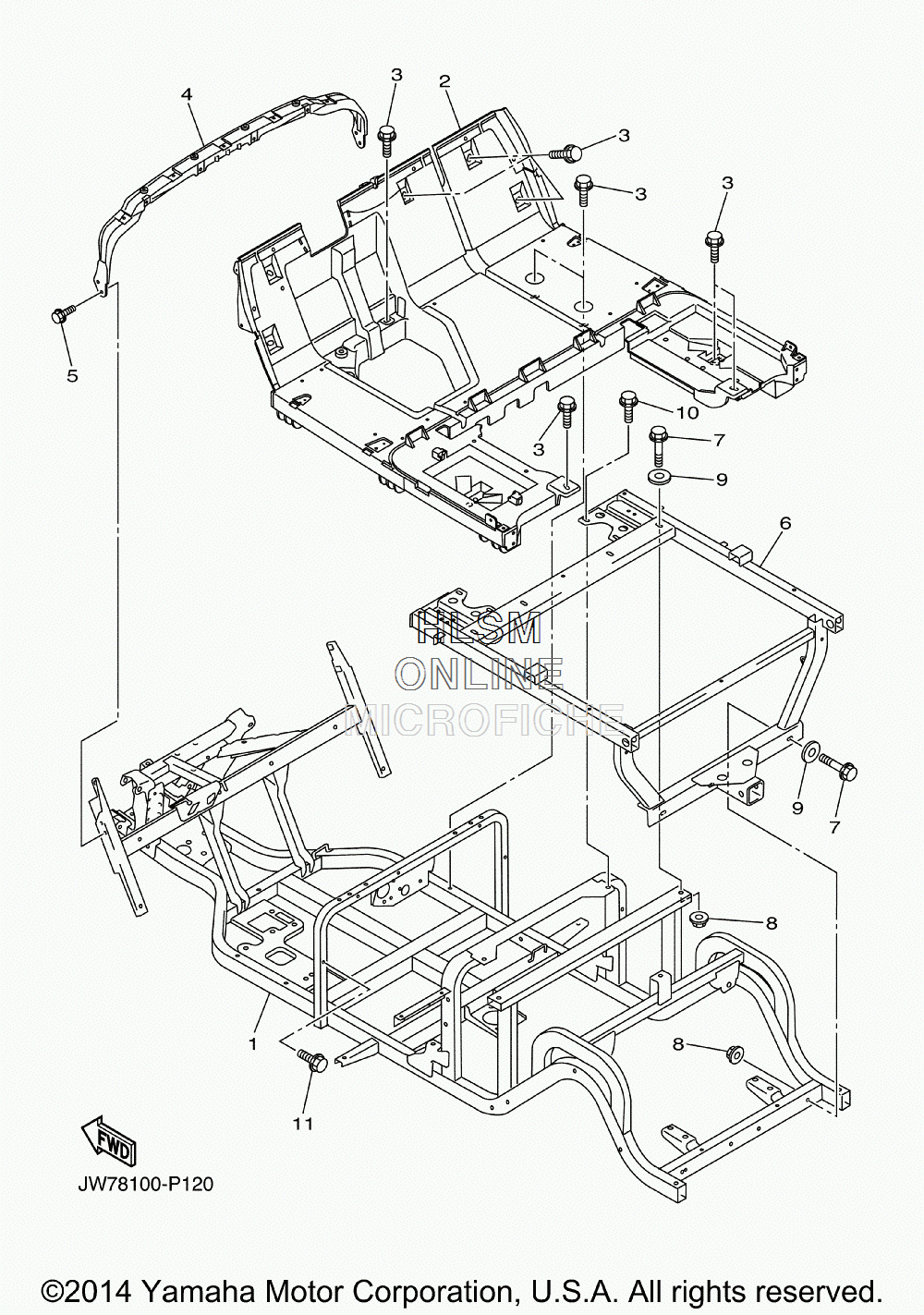

FRAME для Yamaha ADVENTURER TWO [YTF2AX5F] (JW78) - 2015 года выпуска
-
№АртикулНазвание
-
1JW7-F2501-40-00 FRAME COMP.FRAME COMP.
-
2JW7-F7411-20-00 FOOTREST 1FOOTREST 1
-
3JW1-F1738-00-00 BOLTBOLT
-
4JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
6JW7-F2504-00-00 RR. SUB-FRAME COMP.RR. SUB-FRAME COMP.
-
790105-088A7-00 BOLT, FLANGEBOLT, FLANGE
-
895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-08843-00 WASHER, PLATEWASHER, PLATE
-
1090105-08171-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-08867-00 BOLT, FLANGEBOLT, FLANGE
