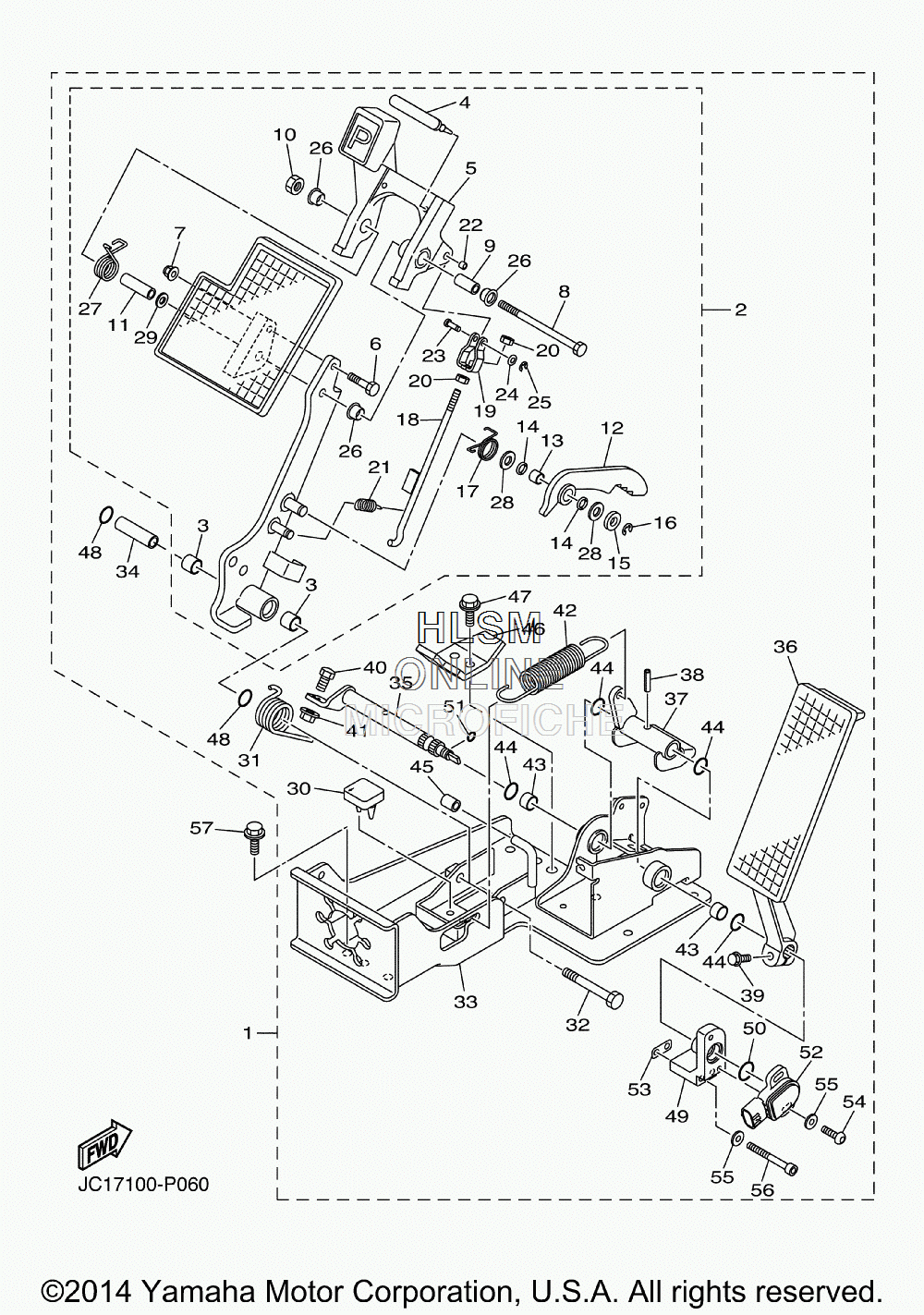

PEDAL ASSEMBLY для Yamaha GOLF CAR ELECTRIC [DRIVE YDREX5] (JW96) - 2015 года выпуска
-
№АртикулНазвание
-
1JW9-F7850-30-00 PEDAL ASSY (L.H)PEDAL ASSY (L.H)
-
2JW9-F7200-21-00 ...PEDAL, BRAKE...PEDAL, BRAKE
-
3JW8-F7814-21-00 ......BUSH, PEDAL......BUSH, PEDAL
-
4JW9-F5672-00-00 ......PAD, PARKING PEDAL......PAD, PARKING PEDAL
-
5JW9-F5671-00-00 ......PEDAL, PARKING BRAKE......PEDAL, PARKING BRAKE
-
6JW8-F7117-00-00 ......BOLT, MAIN STAND......BOLT, MAIN STAND
-
7JW8-F8363-00-00 ......NUT......NUT
-
8JW8-F7416-00-00 ......BOLT, FOOTREST......BOLT, FOOTREST
-
9JW8-F639N-00-00 ......COLLAR......COLLAR
-
10JW8-F7218-00-00 ......NUT......NUT
-
11JW8-F7113-00-00 ......COLLAR, MAIN STAND......COLLAR, MAIN STAND
-
12JW9-F5666-00-00 ......SECTOR, PARKING BRAKE......SECTOR, PARKING BRAKE
-
13JW8-F7121-00-00 ......BUSH......BUSH
-
14JW9-F7221-00-00 ......SEAL, SHAFT......SEAL, SHAFT
-
15JW8-F7322-00-00 ......WASHER......WASHER
-
16JW8-F3183-00-00 ......CIRCLIP......CIRCLIP
-
17JW8-F7426-01-00 ......SPRING, RETURN......SPRING, RETURN
-
18JW9-F7231-10-00 ......ROD, BRAKE......ROD, BRAKE
-
19JW9-F7232-00-00 ......END, ROD 2......END, ROD 2
-
20JW8-F7318-00-00 ......NUT......NUT
-
21JW8-F6314-00-00 ......SPRING......SPRING
-
22JW8-F639L-00-00 ......BUSH 1......BUSH 1
-
23JW9-F7228-00-00 ......PIN, JOINT......PIN, JOINT
-
24JW8-F8323-00-00 ......WASHER, LEG SHIELD......WASHER, LEG SHIELD
-
25JW8-F5415-00-00 ......CIRCLIP......CIRCLIP
-
2690386-12800-00 ......BUSH......BUSH
-
27JW8-F7825-01-00 ......SPRING, RETURN......SPRING, RETURN
-
28JW8-F7119-00-00 ......WASHER......WASHER
-
29JW8-F8319-00-00 ......WASHER......WASHER
-
30JW9-F7245-10-00 ...PAD, BRAKE PEDAL...PAD, BRAKE PEDAL
-
31JW8-F7316-01-00 ...SPRING, SIDE STAND...SPRING, SIDE STAND
-
32JW8-F7217-00-00 ...BOLT...BOLT
-
33JW9-F7445-30-00 ...PLATE 1...PLATE 1
-
34JW8-F7213-20-00 ...COLLAR...COLLAR
-
35JW9-F7853-00-00 ...SHAFT, PEDAL 1...SHAFT, PEDAL 1
-
36JW9-F7871-10-00 ...PEDAL, ACCELERATOR...PEDAL, ACCELERATOR
-
37JW9-F7872-20-00 ...ARM, ACCELERATOR PEDAL...ARM, ACCELERATOR PEDAL
-
38JW8-F7438-00-00 ...PIN, CLEVIS...PIN, CLEVIS
-
39JW8-F7434-00-00 ...BOLT...BOLT
-
40JW8-F7317-00-00 ...BOLT...BOLT
-
41JW8-F7118-00-00 ...NUT...NUT
-
42JW8-F815H-01-00 ...SPRING...SPRING
-
43JW8-F7814-21-00 ...BUSH, PEDAL...BUSH, PEDAL
-
44JW8-F4486-00-00 ...O-RING...O-RING
-
45JW9-F5673-00-00 ...DAMPER, BRAKE...DAMPER, BRAKE
-
46JW9-F7246-20-00 ...NAIL, BRAKE...NAIL, BRAKE
-
47JW8-F8331-00-00 ...BOLT, LEG SHIELD...BOLT, LEG SHIELD
-
48JW8-F4486-00-00 ...O-RING...O-RING
-
49JW9-F7263-00-00 ...BRACKET 1...BRACKET 1
-
50JW9-F4648-20-00 ...O-RING...O-RING
-
51JW8-F41B8-00-00 ...O-RING...O-RING
-
52JW9-H5885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
53JW9-F5827-00-00 ...SHIM, CALIPER (OPT)...SHIM, CALIPER (OPT)
-
53JW9-F5827-10-00 ...SHIM, CALIPER (OPT)...SHIM, CALIPER (OPT)
-
54JW9-F632G-00-00 ...SCREW...SCREW
-
5590201-05824-00 ...WASHER, PLATE...WASHER, PLATE
-
56JW8-F7435-00-00 ...BOLT...BOLT
-
5795812-08020-00 BOLT, FLANGEBOLT, FLANGE
