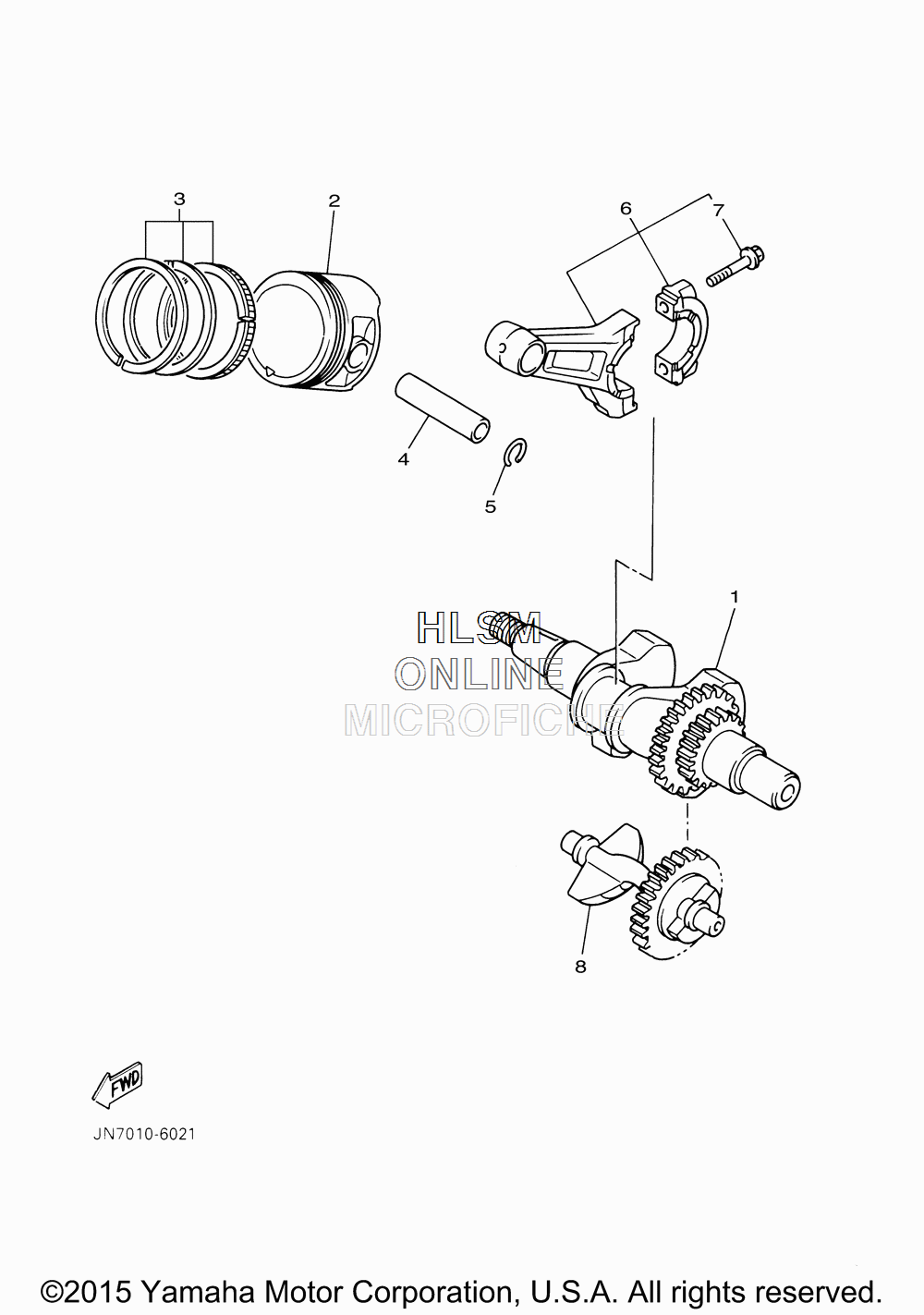

CRANKSHAFT W/ PISTON для Yamaha GOLF CAR GAS [DRIVE YDRAX5] (JW86) - 2015 года выпуска
-
№АртикулНазвание
-
1JN6-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
2JR7-11631-00-A0 PISTON (STD)PISTON (STD)
-
2JR7-11635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
2JR7-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
3JR7-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
3JR7-11610-10-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
3JR7-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
4583-11633-00-00 PIN, PISTONPIN, PISTON
-
593450-21053-00 CIRCLIPCIRCLIP
-
6JN6-11650-10-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
7JN6-11654-10-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
8JN6-11454-10-00 WEIGHT 1WEIGHT 1
