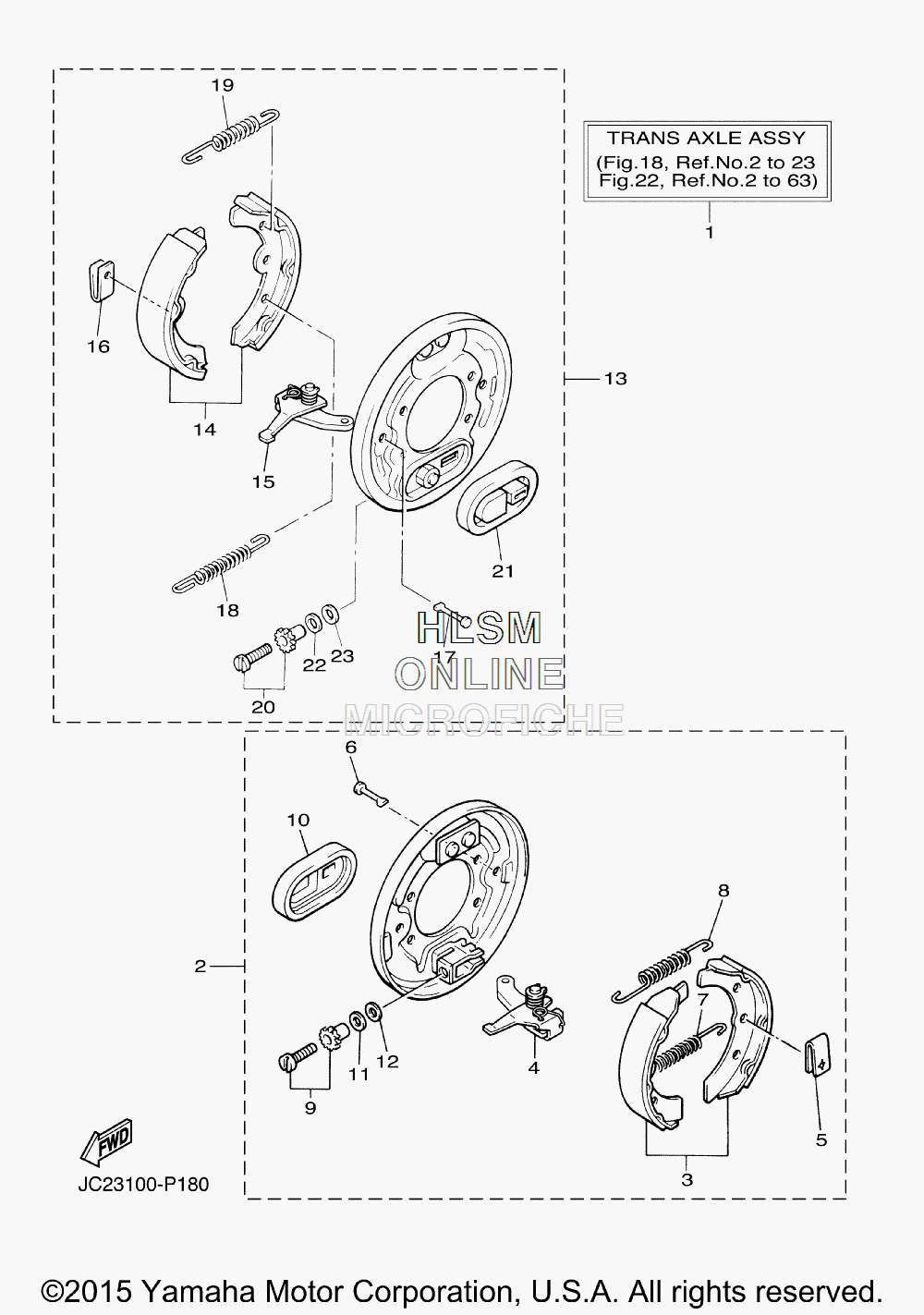

BRAKE для Yamaha GOLF CAR GAS [DRIVE YDRAX5F] (JC23) - 2015 года выпуска

№

Артикул

Название
1

JW8-G6300-10-00 TRANS AXLE ASSY

TRANS AXLE ASSY

674 880 ₽
2

JW8-F7290-00-00 ...BACKING PLATE ASSY 2

...BACKING PLATE ASSY 2

36 220 ₽
3

JN9-W2536-00-00 ......BRAKE SHOE SET

......BRAKE SHOE SET

6 290 ₽
4

J38-27205-00-00 ......LEVER ASSY 2

......LEVER ASSY 2

5 660 ₽
5

JW8-F7281-00-00 ......SPRING, SHOE CLAMP

......SPRING, SHOE CLAMP

890 ₽
6

J10-27282-00-00 ......PIN, SHOE HOLD DOWN

......PIN, SHOE HOLD DOWN

220 ₽
7

90506-20281-00 ......SPRING, TENSION

......SPRING, TENSION

780 ₽
8

90506-14001-00 ......SPRING, TENSION

......SPRING, TENSION

430 ₽
9

J55-27260-00-00 ......ADJUSTER ASSY

......ADJUSTER ASSY

1 000 ₽
10

JW8-F7286-00-00 ......COVER, DUST

......COVER, DUST

5 350 ₽
11

90201-121H9-00 ......WASHER, PLATE

......WASHER, PLATE

1 000 ₽
12

90201-121H8-00 ......WASHER, PLATE

......WASHER, PLATE

340 ₽
13

JW8-F7280-00-00 ...BACKING PLATE ASSY 1

...BACKING PLATE ASSY 1

36 220 ₽
14

JN9-W2536-00-00 ......BRAKE SHOE SET

......BRAKE SHOE SET

6 290 ₽
15

J38-27204-00-00 ......LEVER ASSY 1

......LEVER ASSY 1

5 660 ₽
16

JW8-F7281-00-00 ......SPRING, SHOE CLAMP

......SPRING, SHOE CLAMP

890 ₽
17

J10-27282-00-00 ......PIN, SHOE HOLD DOWN

......PIN, SHOE HOLD DOWN

220 ₽
18

90506-20281-00 ......SPRING, TENSION

......SPRING, TENSION

780 ₽
19

90506-14001-00 ......SPRING, TENSION

......SPRING, TENSION

430 ₽
20

J55-27270-00-00 ......ADJUSTER ASSY

......ADJUSTER ASSY

1 000 ₽
21

JW8-F7286-00-00 ......COVER, DUST

......COVER, DUST

5 350 ₽
22

90201-121H9-00 ......WASHER, PLATE

......WASHER, PLATE

1 000 ₽
23

90201-121H8-00 ......WASHER, PLATE

......WASHER, PLATE

340 ₽
